Option

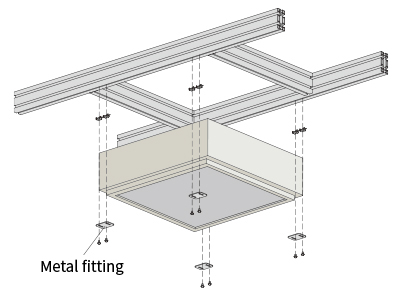

Metal fitting
Part number | Q'ty per package | Applicable products |
FUSU-C2 | 4 pcs/set |
OFU-105H-AW OFU-110H-AW OFU-117H-AW |

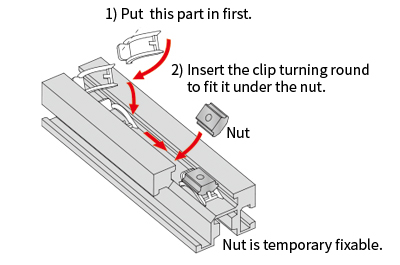

Metal fitting is supplied with a nut and a clip.

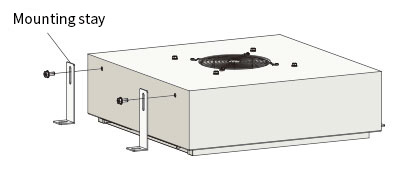

Mounting stay
Part number | Q'ty per package | Applicable product |
OFU-ST01 | 4 pcs/set | OFU-105H-AW OFU-110H-AW OFU-117H-AW |

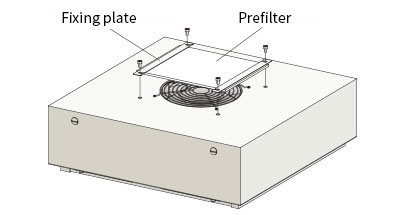

Prefilter set
Use of Prefilter is recommended where large particles are flying.
OFU-PFS01
Part number | Q'ty per package | Applicable products |
OFU-PFS01 | 2 pcs/set | OFU-102H-AW |
Replacement Prefilter
Part number | Q'ty per package | Applicable products |
OFU-PF01 | 10 pcs. | OFU-102H-AW |

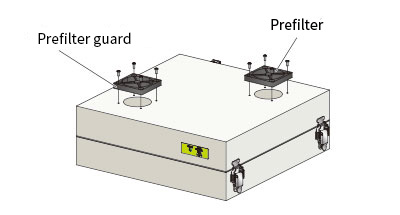

OFU-PFS02
Part number | Q'ty per package | Applicable products |
OFU-PFS02 | 1 pc/set | OFU-105H-AW OFU-110H-AW OFU-117H-AW |
Replacement Prefilter
Part number | Q'ty per package | Applicable products |
OFU-PF02 | 5 pcs. | OFU-105H-AW OFU-110H-AW OFU-117H-AW |
The maximum air volume will decline as below by using the optional Prefilter.
Part number | Without Prefilter | With Prefilter |
OFU-102H-AW | 2.0 m3/min | 1.8 m3/min |
OFU-105H-AW | 5.0 m3/min | 4.5 m3/min |
OFU-110H-AW | 10.0 m3/min | 8.5 m3/min |
OFU-117H-AW | 17.0 m3/min | 12.5 m3/min |
