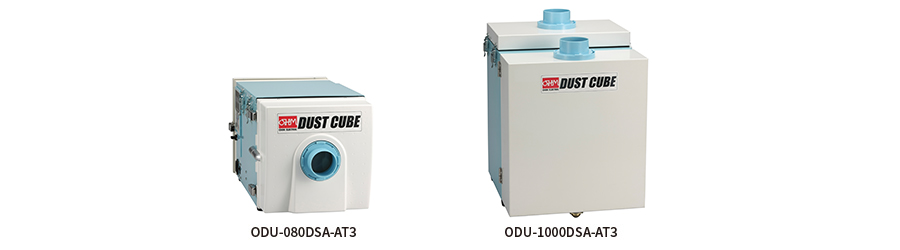

For Clean Rooms High pressure type Laser marker use ODU-DSA
Eliminates fumes generated in soldering or laser marking process
Suitable for clean rooms
Suitable for clean rooms
Features
Environment of use | Type | Specifications | |||||
Clean rooms | High pressure | Laser marker use | Odor elimination | Auto-shaking | Operation panel | Remote operation | Quick detachable flange |
Certificates/Approvals
EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Model/Specifications
Model | ODU-080DSA-AT3 | ODU-1000DSA-AT3 | |
Max. air volume ※1 | 1.8 m3/min | 3.2 m3/min | |
Max. static pressure | 10.3 kPa | 9.5 kPa | |
Collection rate | Min. 99% (for 0.3μm or larger particles) | Min. 99.97% (for 0.3μm or larger particles) | |
Rated voltage (50/60Hz) | Single phase, 100VAC | ||
Rated current | 6.3 A | 7.8 A | |
Working temperature | 0 to +40℃ | ||
Working humidity | Less than 80%RH, free from condensation | ||
Noise | 64 dB(A) | 59 dB(A) | |
Max. intake temperature | +40℃ | ||
Conformity to standards | Environmental standard | RoHS2 | |
Weight | 22.2 kg | 32.5 kg |
*1 Max. airflow when when zeolite is attached
- Supply voltage should be as specified above with permissible fluctuations of 10%.
Structure

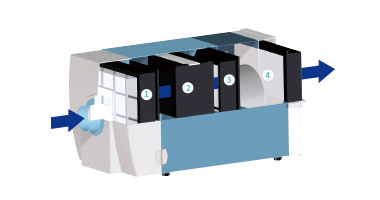

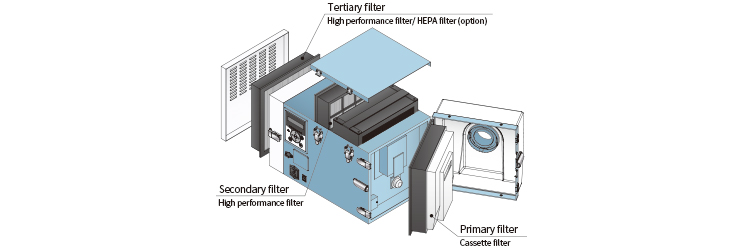

ODU-080DSA-AT3
①Primary filter
Zeolite particles precoat Primary filter so as to keep fume away from attaching on it directly. (Precoating & deodorizing)
②Active carbon cassette
Active carbon cassette is filled with granular natural activated coconut charcoal. The carbons are replaceable.
③Secondary filter
High performance filter
④Tertiary filter
High performance filter for cleanliness classes 100,000 to 10,000 (1,000 to 100 when the HEPA filter is attached).
Zeolite particles precoat Primary filter so as to keep fume away from attaching on it directly. (Precoating & deodorizing)
②Active carbon cassette
Active carbon cassette is filled with granular natural activated coconut charcoal. The carbons are replaceable.
③Secondary filter
High performance filter
④Tertiary filter
High performance filter for cleanliness classes 100,000 to 10,000 (1,000 to 100 when the HEPA filter is attached).

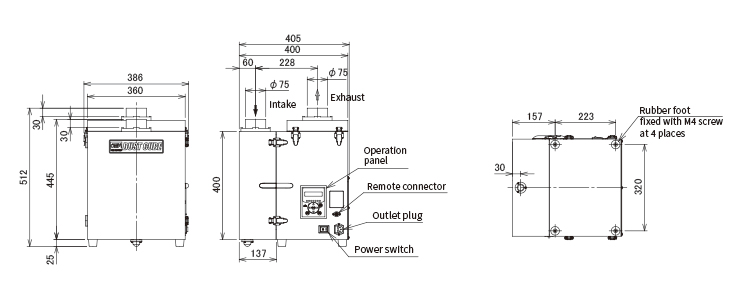

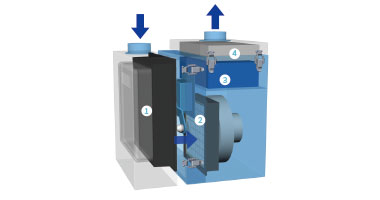

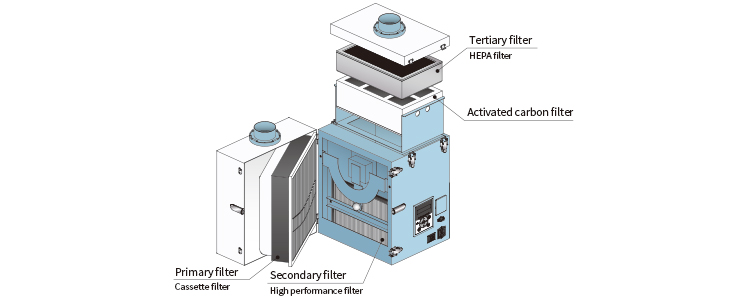

ODU-1000DSA-AT3
①Primary filter
Zeolite particles precoat Primary filter so as to keep fume away from attaching on it directly. (Precoating & deodorizing)
②Secondary filter
High performance filter for protecting electric components from dust
③Active carbon cassette
Odor absorber cassette filter. Replacement finishes in 3 minutes
④Tertiary filter
HEPA filter for cleanliness classes 100,000 to 10,000
Zeolite particles precoat Primary filter so as to keep fume away from attaching on it directly. (Precoating & deodorizing)
②Secondary filter
High performance filter for protecting electric components from dust
③Active carbon cassette
Odor absorber cassette filter. Replacement finishes in 3 minutes
④Tertiary filter
HEPA filter for cleanliness classes 100,000 to 10,000
Operation panel
Remote control
By connecting an optional remote cable, remote operation is enabled.
Remote cable entry
on dust collector side
・ON/OFF switching
・ON/OFF switching
・Change of capacity level
・Enables to output the signals of operation pressure, filter clogging, operation and abnormality
・ON/OFF switching
・Change of capacity level
・Enables to output the signals of operation pressure, filter clogging, operation and abnormality
- Operation input signal
- Operation ressure output signal (1-5 VDC)
- Air volume reduction output signal
- Remote operation input signal
- Operation output signal
- Pressure decrease output signal
- Capacity level change input signal (0.6-5 VDC)
- GND
Contents of page

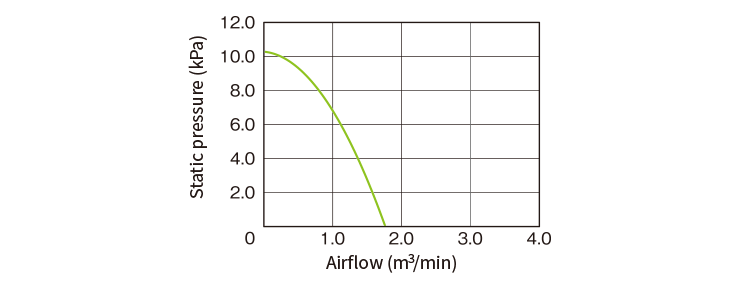

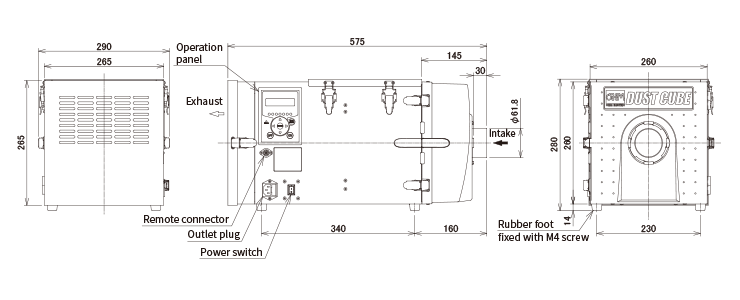

ODU-080DSA-AT3
Max. air volume
1.8 m3/min
Max. static pressure
10.3 kPa
A complete set of supply
DUST CUBE : 1 unit Power cable : 3m long Instruction manual : 1 copy
Maintenance parts
Primary | Secondary/Tertirary | Tertiary (option) | - | |
Filter name | Cassette filter | High performance filter | HEPA filter | Deodorant |
Part number | HDF-2525-90-ZEO-N | CHF-2525-50 | HEP-2525-50 | YAC-2600 |
Colllection rate | - | Min. 99% for 0.3μm | Min. 99.97% for 0.3μm | - |
Dimensions | H250×W250, 90 thick | H250×W250, 50 thick | H250×W250, 50 thick | - |
Frame material | ABS | ABS | Aluminum | - |
Filter material | Polyester | Polypropylene | Glass fiber | Granular active carbon |
Q'ty per pack | 1 pc. | 1 set (2.6kg×4 bags) |
Option
Remote cable | Length |
RC-03M | 3 m |
RC-05M | 5 m |
Detachable flange | Duct diameter |
FRJ-D-38-35-92 | Ø38 |
FRJ-D-50-35-92 | Ø50 |

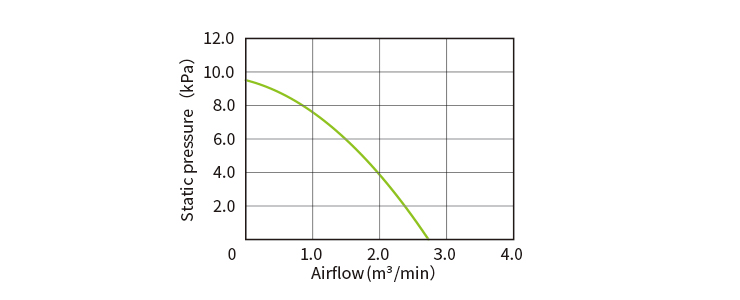

Max. air volume
3.2 m3/min (2.7m3/min when zeolite is attached)
Max. static pressure
9.5 kPa
A complete set of supply
DUST CUBE : 1 unit Power cable : 3m long Instruction manual : 1 copy
Maintenance parts
Primary | Secondary | Tertiary | - | |
Filter name | Cassette filter | High performance filter | HEPA filter | Active carbon cassette |
Part number | HDF-3535-120-F1-ZEO | CHF-2030-50-F1 | HEP-3220-69 | ACC-3220-100 |
Collection rate | - | Min. 99% for 0.3μm | Min. 99.97% for 0.3μm | - |
Dimensions | H350×W350, 120 thick | H200×W300, 50 thick | H200×W320, 69 thick | H320×W200, 100 thick |
Frame material | ABS and Polycarbonate | ABS | Aluminum | Cardboard |
Filter material | Polyester+PTFE laminate | Polyester+PTFE | Glass fiber | Fibrous/granular active carbon |
Q'ty per package | 1 pc. |
Option
Remote cable | Length |
RC-03M | 3 m |
RC-05M | 5 m |
Detachable flange | Duct diameter |
FRJ-D-38-35-108 | Ø38 |
FRJ-D-50-35-108 | Ø50 |
FRJ-D-65-35-108 | Ø65 |
Cautions
・DUST CUBE is designed for inhaling common dust or odor. Never use this product for inhaling the following substances.
- Flammable substances including gasoline, thinner, benzine, kerosene and organic solvent.
- Explosive substances such as aluminium, magnesium, titanium, zinc or epoxy as well as materials ridden with those substances
- Dusts containing sparks generated by high-speed cutter, grinder or other machinery
- Cigarette smoke
- Liquid like water, oil and chemicals
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・This product is for indoor use only.
・The site of use should be free from vibration and impact.
・Make sure that the packaging is not damaged on delivery and contact your supplier, if any.
- Flammable substances including gasoline, thinner, benzine, kerosene and organic solvent.
- Explosive substances such as aluminium, magnesium, titanium, zinc or epoxy as well as materials ridden with those substances
- Dusts containing sparks generated by high-speed cutter, grinder or other machinery
- Cigarette smoke
- Liquid like water, oil and chemicals
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・This product is for indoor use only.
・The site of use should be free from vibration and impact.
・Make sure that the packaging is not damaged on delivery and contact your supplier, if any.
