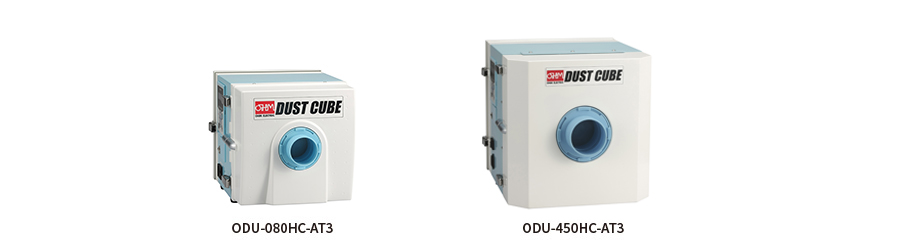

For Clean Rooms High volume type ODU-HC
Suctions fine airborne dust with a large volume of air like a vent fan
For clean room use
For clean room use
Features
Environment of use | Type | Specifications | ||
Clean room | High volume | Operation panel | Remote operation | Quick detachable flange |
Certificates/Approvals
EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Model/Specifications
Model | ODU-080HC-AT3 | ODU-450HC-AT3 | |
Max. air volume | 2.9 m3/min | 7.0 m3/min | |
Max. static pressure | 2.5 kPa | 2.9 kPa | |
Collection efficiency | Min. 99% (for 0.3μm or larger particles) | ||
Rated voltage (50/60Hz) | Single phase, 100VAC | ||
Rated current | 2.4 A | 9.8 A | |
Working temperature | 0 to +40℃ | ||
Working humidity | Less than 80%RH, free from condensation | ||
Noise | 58 dB(A) | 65 dB(A) | |
Max. intake temperature | +40℃ | ||
Conformity to standard | Environmental standard | RoHS2 | |
Weight | 10.3 kg | 29.0 kg |
- Supply voltage should be as specified above with permissible fluctuations of 10%.
Structure

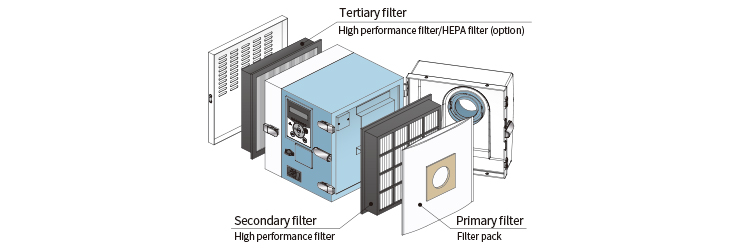

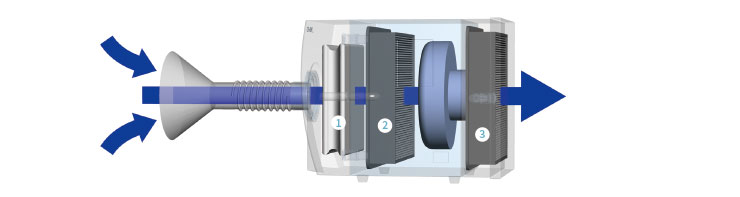

①Primary filter
A filter pack consisting of five layer nonwoven polypropylene fabric. Each layer has different air permeability, and thus filter is not easily clogged. Unlike paper-made filter, not easily tears.
②Secondary filter
Consists of a nonwoven polypropylene fabric filter formed into pleated shape with a frame made of ABS. More than 99% of 0.3 μm or larger particles can be removed at this stage.
③Tertiary filter
The same filter with the secondary filter is used. This filter collects fine particles uncollected in the 1st and 2nd stages or generated in the fan motor chamber. Meets cleanliness class 100,000 to 10,000 (1,000 to 100 when the HEPA filter is attached).
A filter pack consisting of five layer nonwoven polypropylene fabric. Each layer has different air permeability, and thus filter is not easily clogged. Unlike paper-made filter, not easily tears.
②Secondary filter
Consists of a nonwoven polypropylene fabric filter formed into pleated shape with a frame made of ABS. More than 99% of 0.3 μm or larger particles can be removed at this stage.
③Tertiary filter
The same filter with the secondary filter is used. This filter collects fine particles uncollected in the 1st and 2nd stages or generated in the fan motor chamber. Meets cleanliness class 100,000 to 10,000 (1,000 to 100 when the HEPA filter is attached).
Operation panel
The integrated 7-segment display shows three different pressure values. Filter clogging notification can be set in 5 stages.
Remote control
By connecting an optional remote cable, remote operation is enabled.
Remote cable entry
on dust collector side
・ON/OFF switching
・Change of capacity level
・Enables to output the signals of operation pressure, filter clogging, operation and abnormality
・Change of capacity level
・Enables to output the signals of operation pressure, filter clogging, operation and abnormality
- Operation input signal
- Operation pressure output signal (1 - 5V DC)
- Filter clogging output signal
- Remote operation input signal
- Operation output signal
- Abnormality output signal
- Capacity level change input signal (0.6 - 5V DC)
- GND
Contents of page

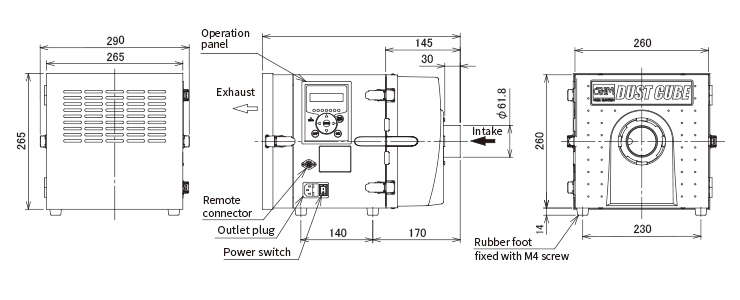

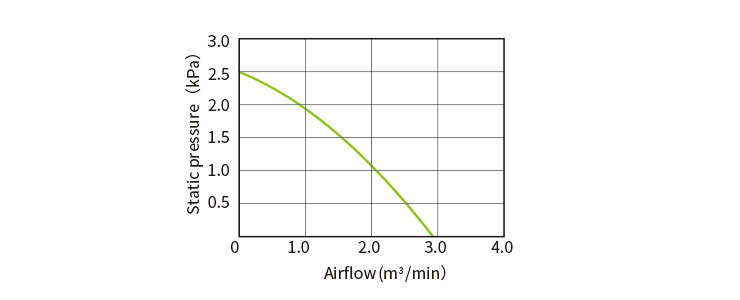

ODU-080HC-AT3
Max. air volume
2.9 m3/min
Max. static pressure
2.5kPa
A complete set of supply
DUST CUBE : 1 unit Power cable : 3m long Instruction manual : 1 copy
Maintenance parts
Primary | Secondary/Tertiary | Tertiary (option)*1 | |
Filter name | Filter pack | High performance filter | HEPA filter |
Part number | FB-25 | CHF-2525-50 | HEP-2525-50 |
Collection rate | Min. 95% for 45μm | Min. 99% for 0.3μm | Min. 99.97% for 0.3μm |
Dimensions | H250×W300 | H250×W250, 50 thick | H250×W250, 50 thick |
Frame material | - | ABS | Aluminum |
Filter material | Polypropylene and cardboard | Polypropylene | Glass fiber |
Q'ty per package | 5 pcs/set | 1 pc. |
Option
Remote cable | Length |
RC-03M | 3 m |
RC-05M | 5 m |
Detachable flange | Duct diameter |
FRJ-D-38-35-92 | Ø38 |
FRJ-D-50-35-92 | Ø50 |

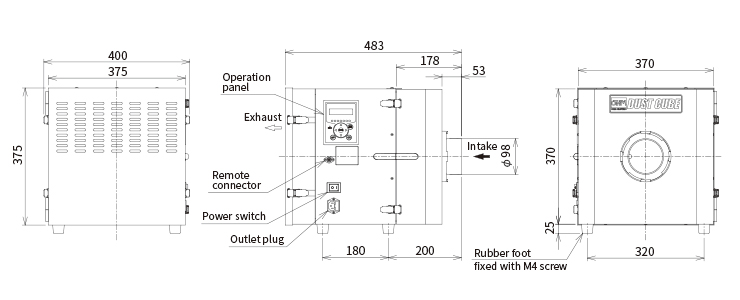

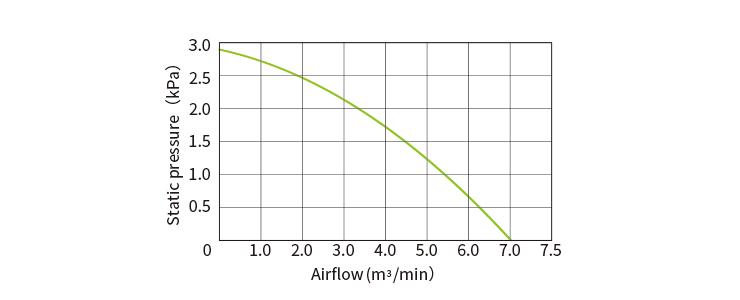

Max. air volume
7.0m3/min
Max. static pressure
2.9kPa
A complete set of supply
DUST CUBE: 1 unit Power cable : 3m long Instruction manual : 1 copy
Maintenance parts
Primary | Secondary/Tertiary | Tertiary (option)※1 | |
Filter name | Filter pack | High performance filter | HEPA filter |
Part number | FB-700-22 | CHF-3535-70 | HEP-3535-69 |
Collection rate | Min. 95% for 45μm | Min. 99% for 0.3μm | Min. 99.97% for 0.3μm |
Dimensions | H700×W220 | H350×W350, 70 thick | H350×W350, 69 thick |
Frame material | - | ABS | Aluminum |
Filter material | Polypropylene and cardboard | Polypropylene | Glass fiber |
Q'ty per package | 5 pcs/set | 1 pc. |
*1 Use this option when 1,000 to 100 cleanliness class is desired.
Option
Remote cable | Length |
RC-03M | 3m |
RC-05M | 5m |
Detachable flange | Duct diameter |
FRJ-D-50-37-139 | Ø50 |
FRJ-D-75-37-139 | Ø75 |
