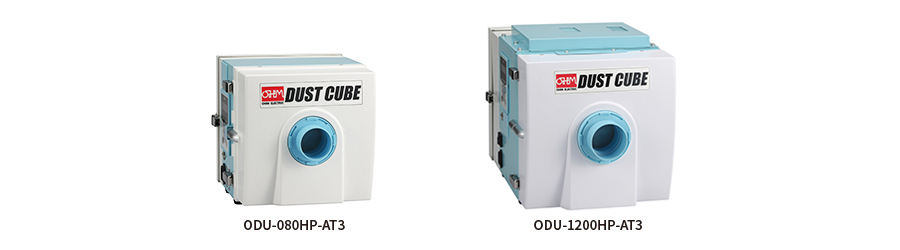

For Clean Rooms High pressure type ODU-HP
Sucks up fallen particulates by high pressure
For clean room use
For clean room use
Features
| Environment of use | Type | Specifications | ||
| Clean rooms | High pressure | Operation panel | Remote operation | Quick detachable flange |
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Quick Selection
To find out the required capacity, simply enter the information on your use environment.
Model/Specifications
| Model | ODU-080HP-AT3 | ODU-1200HP-AT3 | |
| Max. air volume | 1.9 m3/min | 5.5 m3/min | |
| Max. static pressure | 9.3kPa | 13.5 kPa | |
| Collection efficiency | Min. 99% (for 0.3μm or larger particles) | Min. 99.97% (for 0.3μm or larger particles) | |
| Rated voltage (50/60Hz) | Single phase, 100VAC | Single phase, 200VAC | |
| Rated current | 7.6 A | 9.5 A | |
| Working temperature | 0 to ＋40℃ | ||
| Working humidity | Less than 80%RH, free from condensation | ||
| Noise | 70 dB(A) | 77 dB(A) | |
| Max. intake temperature | ＋40℃ | ||
| Conformity to standard | Environmental standard | RoHS2 | RoHS |
| Weight | 10.0 kg | 26.7 kg | |
- Supply voltage should be as specified above with permissible fluctuations of 10%.

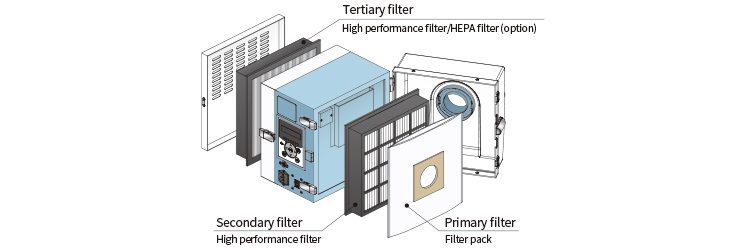

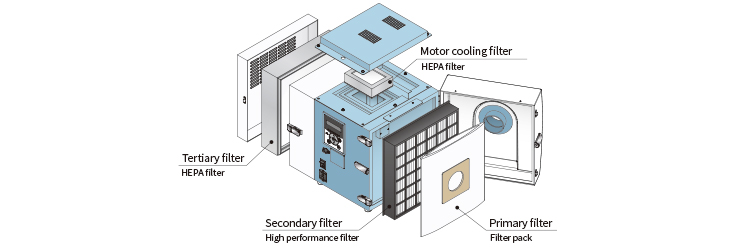

Structure
①Primary filter
A filter pack consisting of five layer nonwoven polypropylene fabric. Each layer has different air permeability, and thus filter is not easily clogged. Unlike paper-made filter, not easily tears.
②Secondary filter
Consists of a nonwoven polypropylene fabric filter formed into pleated shape with a frame made of ABS. More than 99% of 0.3 μｍ or larger particles can be removed at this stage.
③Tertiary filter
This filter collects fine particles uncollected in the 1st and 2nd stages or generated in the fan motor chamber.
For ODU-080HP-AT3, the same filter with the secondary filter is used to meet cleanliness class 100,000 to 10,000 (1,000 to 100 when the HEPA filter is attached).
For ODU-1200HP-AT3, a HEPA filter is used as standard to meet cleanliness class 1,000.
A filter pack consisting of five layer nonwoven polypropylene fabric. Each layer has different air permeability, and thus filter is not easily clogged. Unlike paper-made filter, not easily tears.
②Secondary filter
Consists of a nonwoven polypropylene fabric filter formed into pleated shape with a frame made of ABS. More than 99% of 0.3 μｍ or larger particles can be removed at this stage.
③Tertiary filter
This filter collects fine particles uncollected in the 1st and 2nd stages or generated in the fan motor chamber.
For ODU-080HP-AT3, the same filter with the secondary filter is used to meet cleanliness class 100,000 to 10,000 (1,000 to 100 when the HEPA filter is attached).
For ODU-1200HP-AT3, a HEPA filter is used as standard to meet cleanliness class 1,000.
Operation panel
Displays suction pressure.
Remote control
By connecting an optional remote cable, remote operation is enabled.
Remote cable entry
on dust collector side
・ON/OFF switching
・Change of capacity level
・Enables to output the signals of operation pressure, filter clogging, operation and abnormality
・Change of capacity level
・Enables to output the signals of operation pressure, filter clogging, operation and abnormality
- Operation input signal
- Operation pressure output signal (1-5 VDC)
- Low air volume signal
- Remote operation input signal
- Operation output signal
- Low pressure output signal
- Capacity level change input signal (0.6-5 VDC)
- GND
Contents of page
ODU-080HP-AT3
Max. air volume
1.9m3/min
Max. static pressure
9.3kPa
A complete set of supply
DUST CUBE : 1 unit Power cable : 3m long Instruction manual : 1 copy

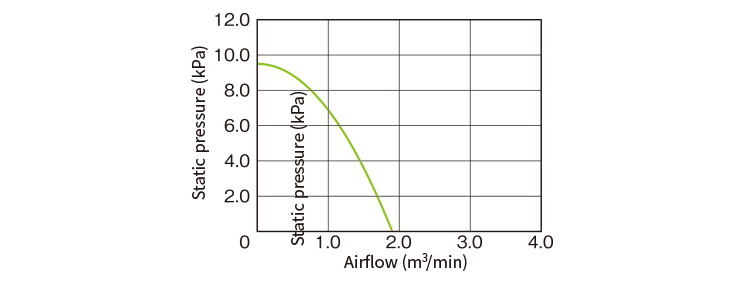

Performance curve

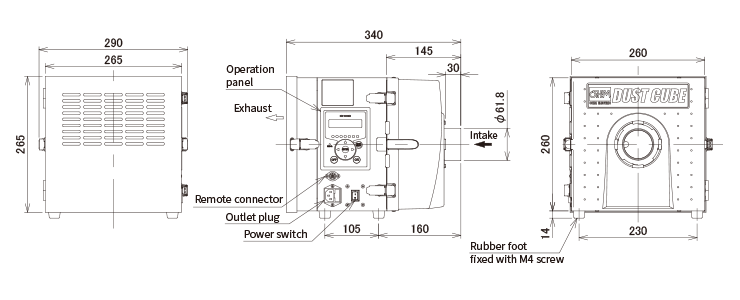

Dimensional drawing
Maintenance parts
| Primary | Secondary/Tertiary | Tertiary (option)*1 | |
| Filter name | Filter pack | High performance filter | HEPA filter |
| Part number | FB-25 | CHF-2525-50 | HEP-2525-50 |
| Collection rate | Min. 95％ for 45μm | Min. 99％ for 0.3μm | Min. 99.97％ for 0.3μm |
| Dimensions | H250×W300 | H250×W250, 50 thick | H250×W250, 50 thick |
| Frame material | － | ABS | Aluminum |
| Filter material | Polypropylene and cardboard | Polypropylene | Glass fiber |
| Q'ty per package | 5 pcs/set | 1 pc. | |
Option
| Remote cable | Length |
| RC-03M | 3 m |
| RC-05M | 5 m |
| Detachable flange | Duct diameter |
| FRJ-D-38-35-92 | Ø38 |
| FRJ-D-50-35-92 | Ø50 |
Max. air volume
5.5 m3/min
Max. static pressure
13.5 kPa
A complete set of supply
DUST CUBE : 1 unit Power cable : 3m long Instruction manual : 1 copy
Performance curve

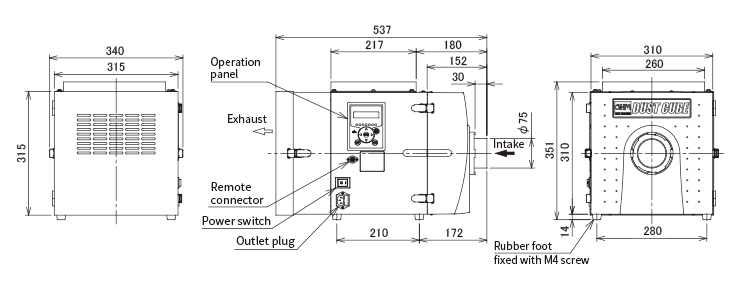

Dimensional drawing
Maintenance parts
| Primary | Secondary/Tertiary | Tertiary (option)*1 | - | |
| Filter name | Filter pack | High performance filter | HEPA filter | Motor cooling filter |
| Part number | FB-30 | CHF-3030-50 | HEP-3030-69 | HEP-1293-34 |
| Collection rate | Min. 95％ for 45μm | Min. 99％ for 0.3μm | Min. 99.97％ for 0.3μm | Min. 99.97％ for 0.3μm |
| Dimensions | H300×W300 | H300×W300, 50 thick | H300×W300, 69 thick | H123×W93, 34 thick |
| Frame material | － | Polypropylene | Aluminum | Aluminum |
| Filter material | Polypropylene and cardboard | Polypropylene | Glass fiber | Glass fiber |
| Q'ty per package | 5 pcs/set | 1 pc. | ||
*1 To attach HEPA filter, use of the optional exhaust duct cover CV-1200HP-HEP is necessary.
Option
| Remote cable | Length |
| RC-03M | 3 m |
| RC-05M | 5 m |
| Detachable flange | Duct diameter |
| FRJ-D-38-35-108 | Ø38 |
| FRJ-D-50-35-108 | Ø50 |
| FRJ-D-65-35-108 | Ø65 |
Cautions
・DUST CUBE is designed for inhaling common dust or odor. Never use this product for inhaling the following substances.
- Flammable substances including gasoline, thinner, benzine, kerosene and organic solvent.
- Explosive substances such as aluminium, magnesium, titanium, zinc or epoxy as well as materials ridden with those substances
- Dusts containing sparks generated by high-speed cutter, grinder or other machinery
- Cigarette smoke, and
- Liquid like water, oil and chemicals
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・This product is for indoor use only.
・The site of use should be free from vibration and impact.
・Make sure that the packaging is not damaged on delivery and contact your supplier, if any.
- Flammable substances including gasoline, thinner, benzine, kerosene and organic solvent.
- Explosive substances such as aluminium, magnesium, titanium, zinc or epoxy as well as materials ridden with those substances
- Dusts containing sparks generated by high-speed cutter, grinder or other machinery
- Cigarette smoke, and
- Liquid like water, oil and chemicals
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・This product is for indoor use only.
・The site of use should be free from vibration and impact.
・Make sure that the packaging is not damaged on delivery and contact your supplier, if any.
