For General Environments High volume type OSK-FB/OSK-B
Functionally rich and highly efficient unit for general environments
※OSK-250-B changed its specification to OSK-250-FB. See more details → Specification notice
Features
| Environment of use | Type | Specifications | |
| General | High volume | Operation panel | Remote operation |
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Quick Selection
To find out the required capacity, simply enter the information on your use environment.

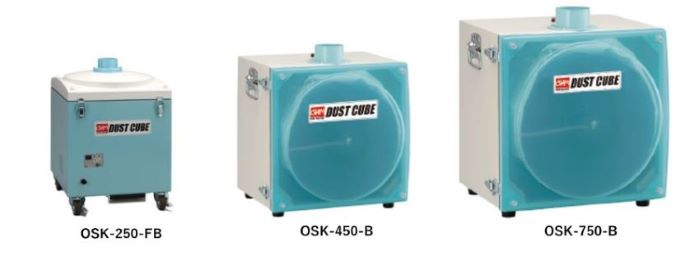

Model/Specifications
| Model | OSK-250-FB | OSK-450-B | OSK-750-B | |
| Max. air volume | 4.9m3/min | 9.5m3/min | 13.0m3/min | |
| Max. static pressure | 4.3kPa | 2.5kPa | 3.4kPa | |
| Collection efficiency | Min.99% (for 0.3μm or larger particles) | Min.99% (for 10μm or larger particles) | ||
| Rated voltage (50/60Hz) | Single phase, 100VAC | Single phase, 200VAC | ||
| Rated current | 4.7 A | 10.0 A | 7.0 A | |
| Working temperature | 0 to ＋40℃ | |||
| Working humidity | 80%RH or less, free from condensation | |||
| Noise | 65 dB(A) | 67 dB(A) | 64 dB(A) | |
| Max. intake temperature | ＋40℃ | |||
| Conformity to standard | Environmental standard | RoHS2 | ||
| Weight | 23.0 kg | 37.0 kg | 46.5 kg | |
- Supply voltage should be as specified above with permissible fluctuations of 10%.

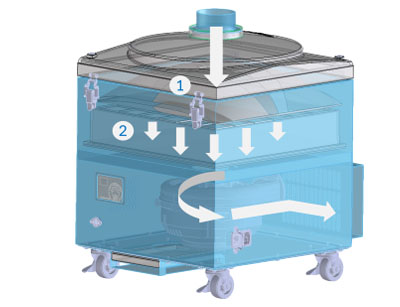

Structure (OSK-250-FB)

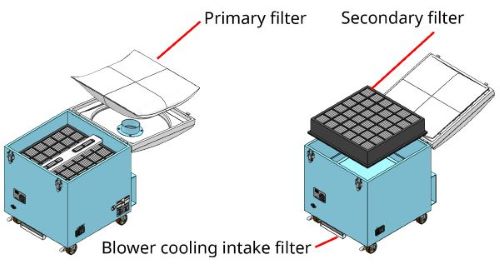

① Primary filter
This is a polypropylene nonwoven filter with a 5-layer structure.
By varying the breathability of each layer, it is less likely to clog and can capture more than 95% of 45μm particles.
It will not tear easily like paper cartons due to its strength and replaced without getting your hands dirty with a bag style.
②Secondary filter
It is made of pleated nonwoven polypropylene fabric and the material of outer frame is ABS resin. The collection efficiency is over 99% at 0.3 μm.
This is a polypropylene nonwoven filter with a 5-layer structure.
By varying the breathability of each layer, it is less likely to clog and can capture more than 95% of 45μm particles.
It will not tear easily like paper cartons due to its strength and replaced without getting your hands dirty with a bag style.
②Secondary filter
It is made of pleated nonwoven polypropylene fabric and the material of outer frame is ABS resin. The collection efficiency is over 99% at 0.3 μm.

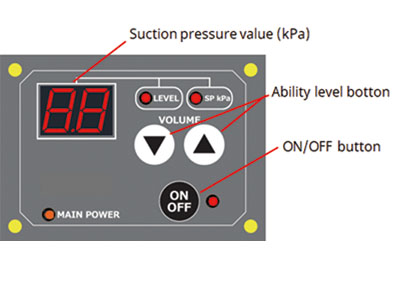

Operation panel
Remote control
By connecting an optional remote cable, remote operation is enabled.
Remote cable entry
on dust collector side
・ON/OFF switching
・Enables to output operation pressure,
air volume reduction, operation and
pressure reduction signals
・Enables to output operation pressure,
air volume reduction, operation and
pressure reduction signals
- Operation input
- -
- -
- Remote operation input
- Operation output
- Overload output
- Service power
- GND
Structure (OSK-450-B/OSK-750-B)

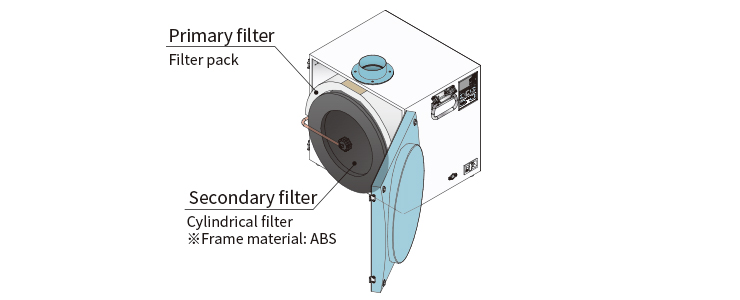

①Primary filter (Pre-filter)
A filter pack consisting of five layer nonwoven polypropylene fabric.
Each layer has different air permeability,and thus filter is not easily clogged or torn off having capability of capturing more than 95% of 45μm or larger particles.The transparent front cover allows to see the amount of dust collected.
②Secondary filter
A polyester molded filter integrated into ABS frame. Designed for ease of maintenance having capability of capturing more than 99% of 10μm or larger particles.
A filter pack consisting of five layer nonwoven polypropylene fabric.
Each layer has different air permeability,and thus filter is not easily clogged or torn off having capability of capturing more than 95% of 45μm or larger particles.The transparent front cover allows to see the amount of dust collected.
②Secondary filter
A polyester molded filter integrated into ABS frame. Designed for ease of maintenance having capability of capturing more than 99% of 10μm or larger particles.

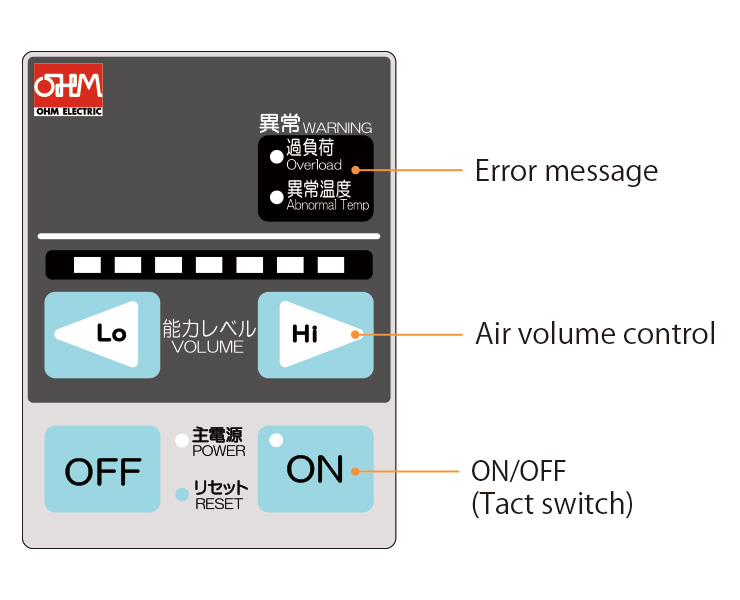

Operation panel
Remote control
By connecting an optional remote cable, remote operation is enabled.
Remote cable entry
on dust collector side
・ON/OFF switching
・Enables to output operation pressure,
air volume reduction, operation and
pressure reduction signals
・Enables to output operation pressure,
air volume reduction, operation and
pressure reduction signals
- Operation input
- -
- -
- Remote operation input
- Operation output
- Overload output
- Service power
- GND
Contents of page
OSK-250-FB
Max. air volume
4.9m3/min
Max. static pressure
4.3kPa
A complete set of supply
DUST CUBE : 1 unit Power cable : 3m long Instruction manual : 1 copy

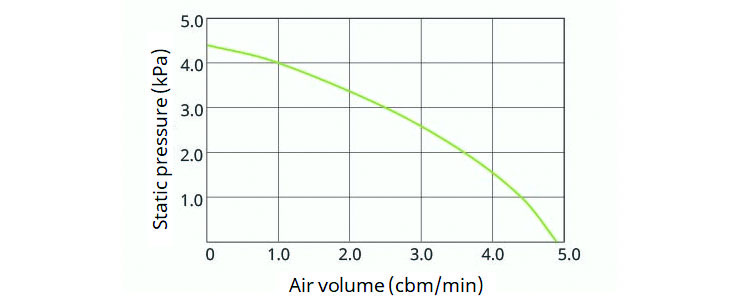

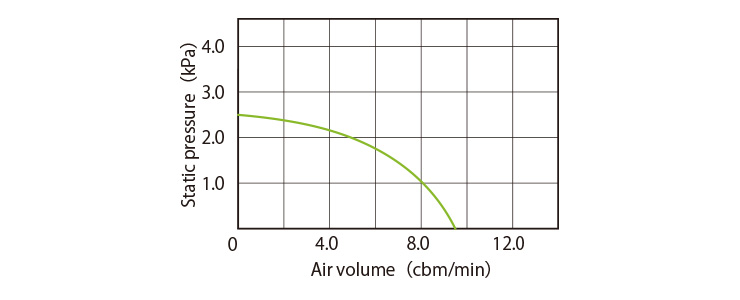

Performance curve

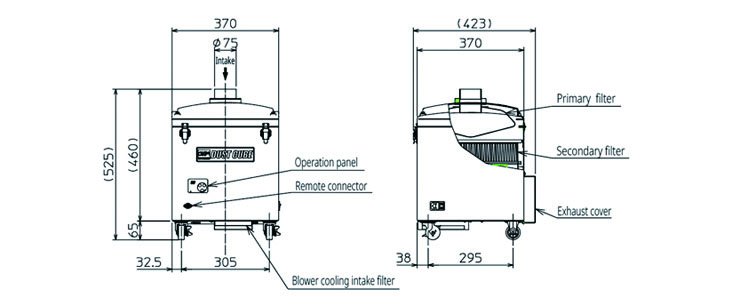

Dimensional drawing
Maintenance parts
| Primary filter | Secondary filter | Blower cooling intake filter | |
| Model | FB-40 | CHF-3535-70 | CMF-1217-13 |
| Material | Polypropylene+cardboard | Polypropylene＋ABS | Polypropylene+cardboard |
| Q'ty per package | 5pcs/Set | 1pc | 1pc |
Option
| Product | Model |
| Remote cable(3m) | RC-03M |
| Remote cable(5m) | RC-05M |
| Detachable flange Ø38 | FRJ-D-38-35-108 |
| Detachable flange Ø50 | FRJ-D-50-35-108 |
| Detachable flange Ø65 | FRJ-D-65-35-108 |
| Detachable flange Ø75(Standard) | FRJ-D-75-35-108 |
Max. air volume
9.5m3/min
Max. static pressure
2.5kPa
A complete set of supply
DUST CUBE : 1 unit Power cable : 3m long Instruction manual : 1 copy
Performance curve

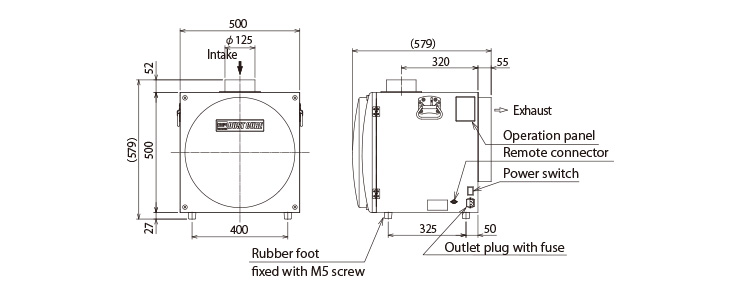

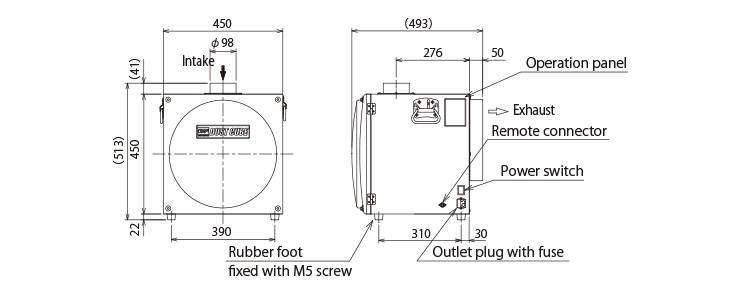

Dimensional drawing
Maintenance parts
| Primary | Secondary | |
| Filter name | Filter pack | Cylindrical filter |
| Part number | FB-700-22 | CS-300-200 |
| Collection rate | Min. 95％ for 45μm | Min. 99％ for 10μm |
| Dimensions | H700×W220 | Ø300 L200 |
| Filter material | Polypropylene and cardboard | Polyester |
| Q'ty per package | 5 pcs/set | 1 pc. |
Option
| Remote cable | Length |
| RC-03M | 3 m |
| RC-05M | 5 m |
Max. air volume
13.0m3/min
Max. static pressure
3.4kPa
A complete set of supply
DUST CUBE : 1 unit Power cable : 3m long Instruction manual : 1 copy
Performance curve
Dimensional drawing
Maintenance parts
| Primary | Secondary | |
| Filter name | Filter pack | Cylindrical filter |
| Part number | FB-900-25 | CS-300-250 |
| Collection rate | Min. 95％ for 45μm | Min. 99％ for 10μm |
| Dimensions | H900×W250 | Ø300 L250 |
| Filter material | Polypropylene and cardboard | Polyester |
| Q'ty per package | 5 pcs/set | 1 pc. |
Option
| Remote cable | Length |
| RC-03M | 3 m |
| RC-05M | 5 m |
