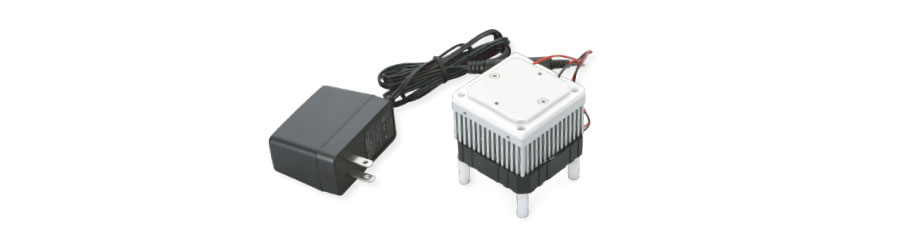

Fan-cooled Plate Cooling type DIY kit
Easy to assemble with a screwdriver.
Features
Environment of use | Cooling method | Heat dissipation | Type of cooling |
Indoor | Thermoelectric | Air cooling | Plate |
Certificates/Approvals
EU RoHS | China RoHS | CE | UL | CSA | PSE |
Certificates/Approvals
Model | OCE-KT3 | |
Cooling method | Fan-cooled Plate cooling | |
Cooling capacity *1 | 10W | |
Max. temperature difference *2 | 27K | |
Power input | Main unit : 9VDC 2.5A/When power adapter is used : 100VAC 0.6A | |
Working temperature | 0 to+40℃ | |
Working humidity | Max. 80%RH, free from condensation | |
Overheat protection on dissipation side | Not provided | |
Operation | Continuous (Inversion operation is unavailable) | |
Power connection | Adapter inlet between Main body and Power adapter, Plug between Power adapter and Outlet | |

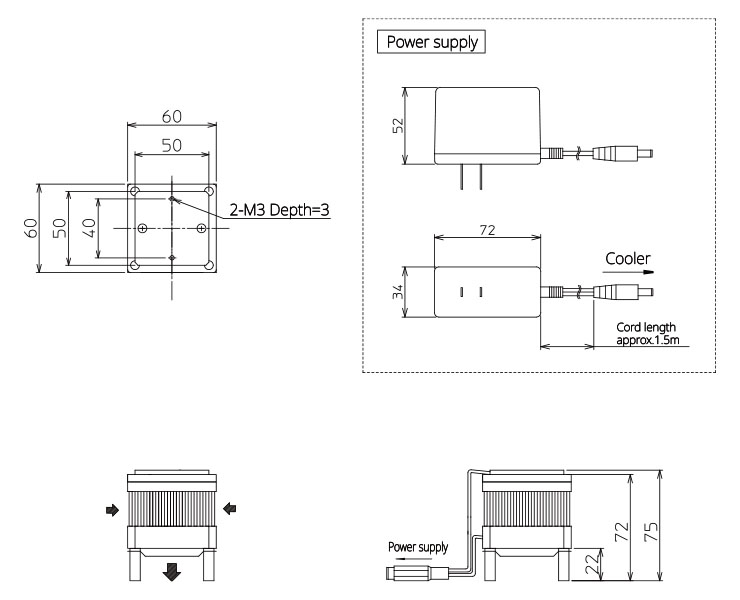

Dimensions (mm) | Main body : W60×H75×D60 Power adapter : W50×H93×D32 Cord length 1.6m | |
Weight | 780g (Incl. 200g for power adapter) |

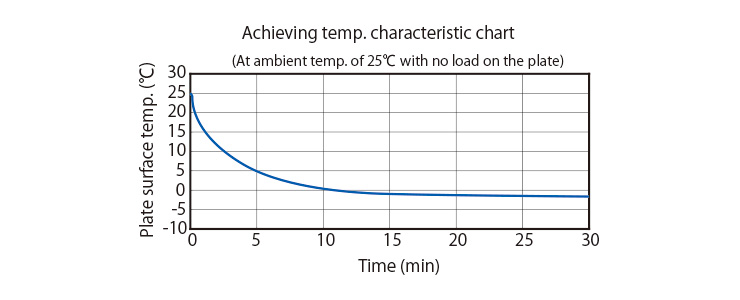

*2 Temperature difference between ambient air and plate surface when ambient temperature is 25℃ and heat load on plate surface is zero
Cooling capacity may vary by the quality of assembly work. The above cooling capacity and Max. temperature difference show reference values.
OCE-KT3

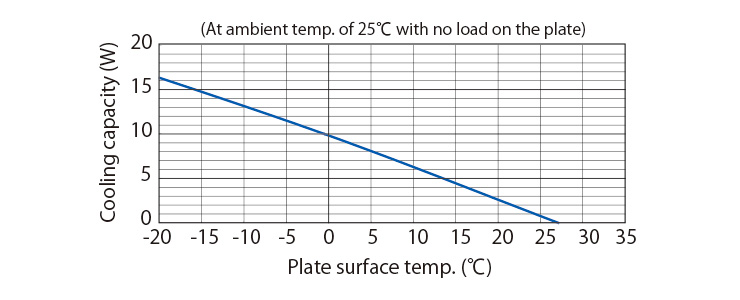

Cooling capacity

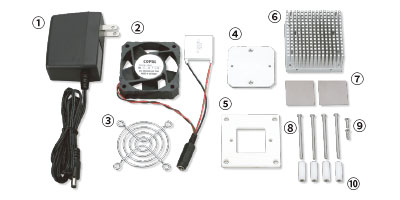

A complete set of supply
④Aluminum plate : 1 pc. ⑤Heat insulator : 1 pc. ⑥Fin : 1 pc.
⑦Heat conductive sheet : 2 pcs. ⑧Screw (Large) : 4 pcs.
⑨Screw (Small) : 2 pca. ⑩Spacer : 4 pcs.
Assembly instructions
1. Attach the heat insulator to the fin and lay the thermal conductive sheet, thermoelectric module and thermal conductive sheet in an orderly stack in the square hole provided in the center.
2. Put the plate on top and fix it with 2 small screws.
3. Insert 4 large screws from the heat insulator side.
4. Put the screws through fan and fan guard. Then, fix the screws with the spacers.
5. Connect the power adapter to the plug.
Now the work has finished.
Option
Thermal conductive grease
Use as an alternative to thermal conductive sheet
Cool box kit
Styrol box 1 pc., Screw 2 pcs., Nut 4 pcs.
Cooling fin 1 pc., Cutout drawing 3 pcs.
Cooling block
Cooling block 1 pc, Screw 2 pcs.
Cautions
・The site of use should be free from vibration and impact.
・Do not use other power adapters than supplied.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Indoor use only.
・No warranty is given to this product.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
