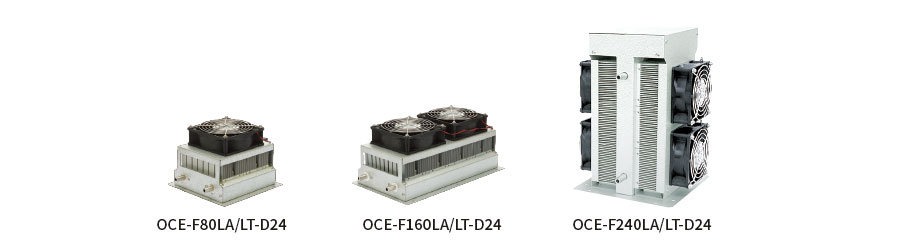

Fan-cooled Fluid Cooling type
Meets variety of fluids by selecting liquid contact part from aluminum and titanium
Features
| Environment of use | Cooling method | Heat dissipation | Type of cooling |
| Indoor | Thermoelectric | Air cooling | Fluid cooling |
Certificates/Approvals
| EU RoHS2 | EU RoHS | China RoHS | CE | UL | CSA | PSE |

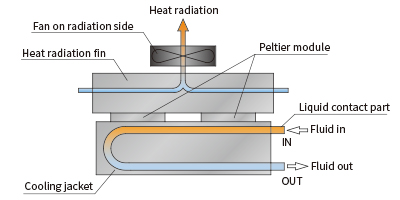

Cooling cycle
Fluid flown in from the inlet port of the cooling block is cooled by passing through the cooling block and the liquid contact part, which have been cooled by thermoelectric module, and then flows out from the outlet port. The absorbed heat and the generated heat are cooled by fan to be dissipated through heat conductive materials like aluminum from the opposite side of the thermoelectric module. (*1)
(*1) The heat absorbed through the heat dissipation fin is exhausted from the fan on heat dissipation side.
(*1) The heat absorbed through the heat dissipation fin is exhausted from the fan on heat dissipation side.

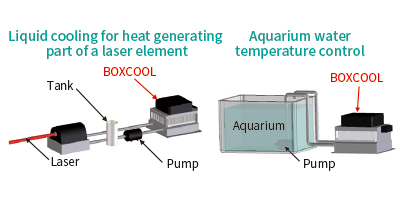

Example of use
Model/Specifications
| Model | OCE-F80LA -D24 |
OCE-F80LT -D24 |
OCE-F160LA -D24 |
OCE-F160LT -D24 |
OCE-F240LA -D24 |
OCE-F240LT -D24 |
|
| Cooling method | Fan-cooled Fluid cooling type | ||||||
| Cooling capacity | 95W | 90W | 220W | 190W | 320W | 280W | |
| Heating capacity *1 | 300W | 620W | 930W | ||||
| Rated voltage | Fan *2 | DC24V ±5% | |||||
| Peltier | |||||||
| Current consumption | 9.0A or less | 18.0A or less | 27.0A or less | ||||
| Starting current *3 | 11.3A | 22.0A | 32.5A | ||||
| Working temperature*4 | 0 to +50℃ | ||||||
| Working humidity | Max. 80％RH, free from condensation | ||||||
| Liquid temperature *5 | Max. +50℃, ice-free | ||||||
| Noise | 45dB(A) | 49dB(A) | 46dB(A) | ||||
| Max. allowable temp. for Cooling jacket |
+80℃ | ||||||
| Max. allowable temp. for Dissipation fin base |
+80℃ | ||||||
| Vibration resistance | Vibration frequency 10-55Hz Total amplitude 0.7mm Cycle 5min X, Y and Z axis 25min each |
||||||
| Conformity to standards | Environment | RoHS2 | RoHS | RoHS2 | RoHS | RoHS2 | |
| Circulation fluid | Purified water, tap water, etc. | Seawater, chemical liquid, etc. | Purified water, tap water, etc. | Seawater, chemical liquid, etc. | Purified water, tap water, etc. | Seawater, chemical liquid, etc. | |
| Fluid contact part | Aluminum (SUS304 partially) |
Titanium | Aluminum (SUS304 partially) |
Titanium | Aluminum (SUS304 partially) |
Titanium | |
| Pressure resitance in piping | 0.5MPa | ||||||
| Outer diameter of pipe connection port | Ø10.5 | Ø10 | Ø10.5 | Ø10 | Ø10.5 | Ø10 | |
| Dimensions (mm)*6 | W180×H135×D182 | W320×H135×D182 | W190×H268×D180 | ||||
| Weight | 2.4kg | 5.2kg | 7.2kg | ||||
*1 Nominal value at 30℃ ambient temp. by applying our capacity measurement method by product type
*2 Nominal value when both ambient and circulation liquid temperatures are 30℃
*3 Rated value when the unit runs cooling operation at 30℃ ambient temp. (The value varies depending on temperature. See the table below. )
*4 Value at 30℃ ambient temp. (The value varies depending on temperature. See the table below. )
*5 Pay attention to prevent circulation liquid from freezing.
*6 Terminal board and projection are excluded.
*2 Nominal value when both ambient and circulation liquid temperatures are 30℃
*3 Rated value when the unit runs cooling operation at 30℃ ambient temp. (The value varies depending on temperature. See the table below. )
*4 Value at 30℃ ambient temp. (The value varies depending on temperature. See the table below. )
*5 Pay attention to prevent circulation liquid from freezing.
*6 Terminal board and projection are excluded.
Correlation between temperature and current value
| Ambient temperature | 0℃ | 15℃ | 30℃ | 50℃ | |
| OCE-F80LA/LT-D24 (incl. 0.25A for fan) |
Rated current consumption (A) | 11.1 | 10.1 | 9.0 | 8.5 |
| Starting current (A) |
12.6 | 11.9 | 11.3 | 10.3 | |
| OCE-F160LA/LT-D24 (incl. 0.5A for fan) |
Rated current consumption (A) | 21.7 | 19.6 | 18.0 | 16.8 |
| Starting current (A) |
24.7 | 23.3 | 22.0 | 20.1 | |
| OCE-F240LA/LT-D24 (incl. 0.56A for fan) |
Rated current consumption (A) | 32.0 | 29.0 | 27.0 | 25.0 |
| Starting current (A) |
36.6 | 34.5 | 32.5 | 29.6 |
Contents of page
OCE-F80LA/LT-D24
Cooling capacity
F80LA：95W F80LT：90W
A complete set of supply
BOXCOOL : 1 unit Instruction manual : 1 copy

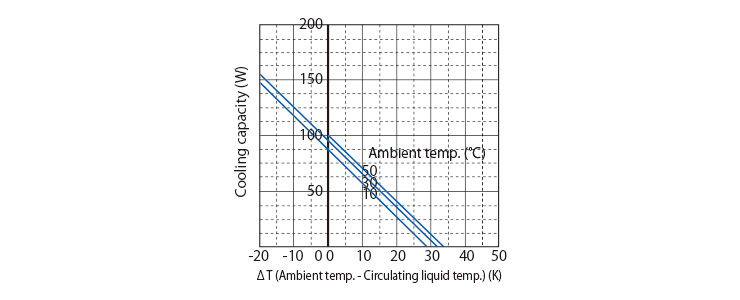

F80LA Performance chart

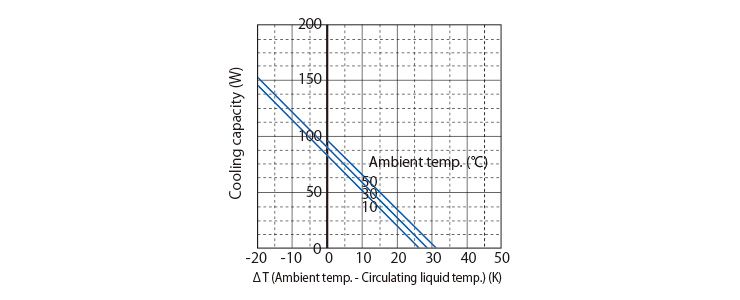

F80LT Performance chart
F80LA Achieving temp. characteristic chart

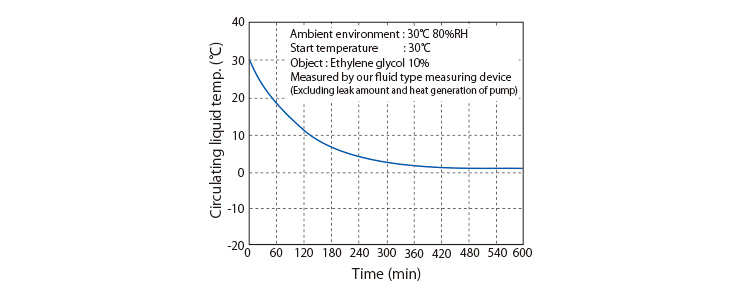

F80LT Achieving temp. characteristic chart

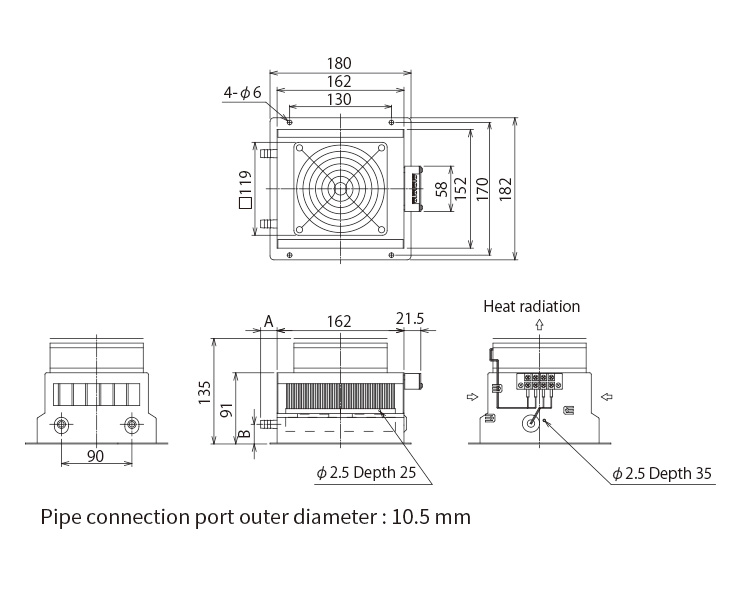

F80LA Dimensional drawing

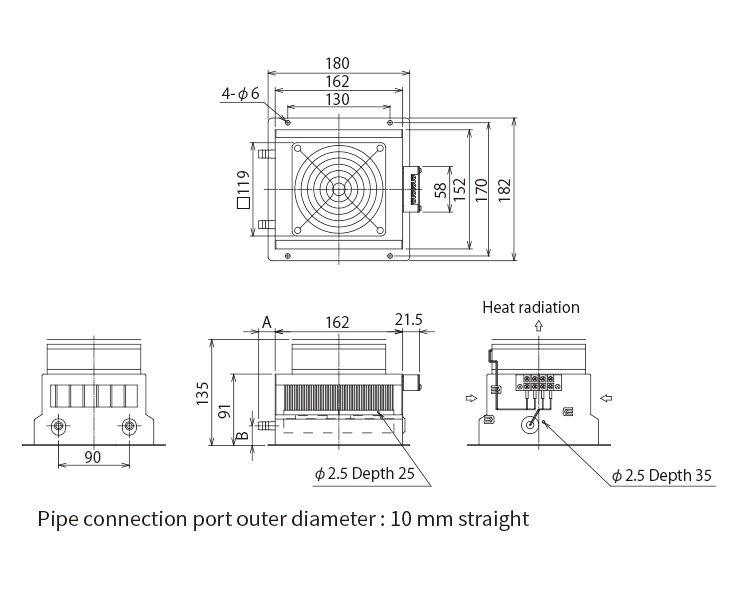

F80LT Dimensional drawing
OCE-F160LA/LT-D24
Cooling capacity
F160LA：220W F160LT：190W
A complete set of supply
BOXCOOL : 1 unit Instruction manual : 1 copy

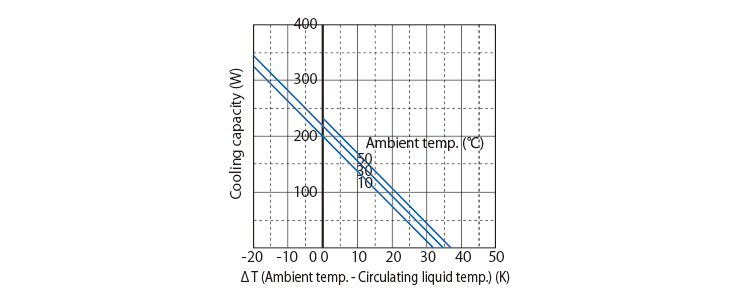

F160LA Performance chart

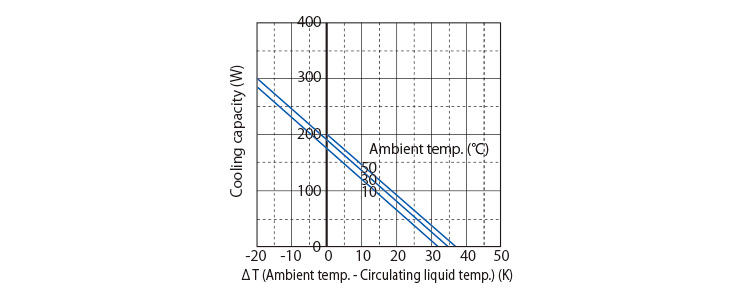

F160LT Performance chart

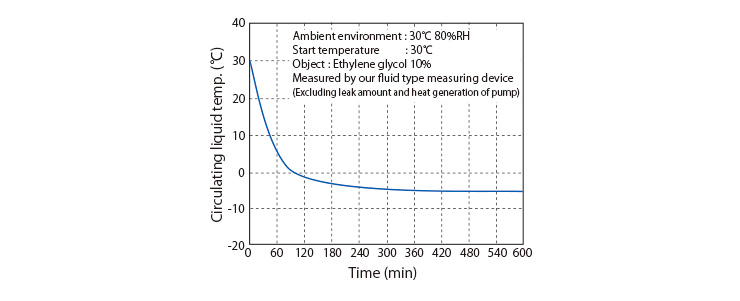

F160LA Achieving temp. characteristic chart

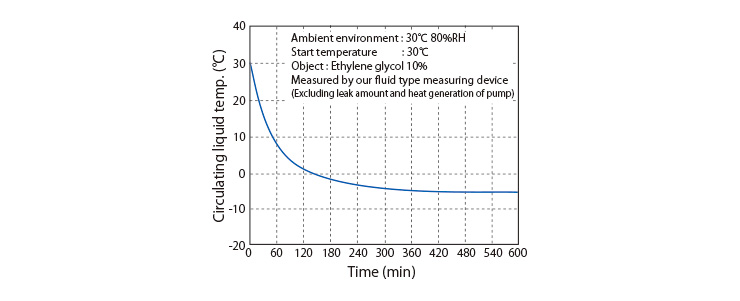

F160LT Achieving temp. characteristic chart

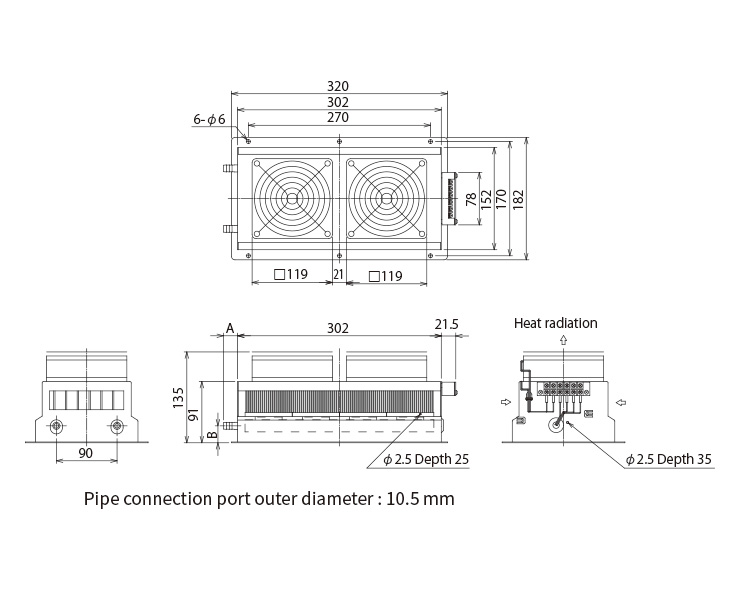

F160LA Dimensional drawing

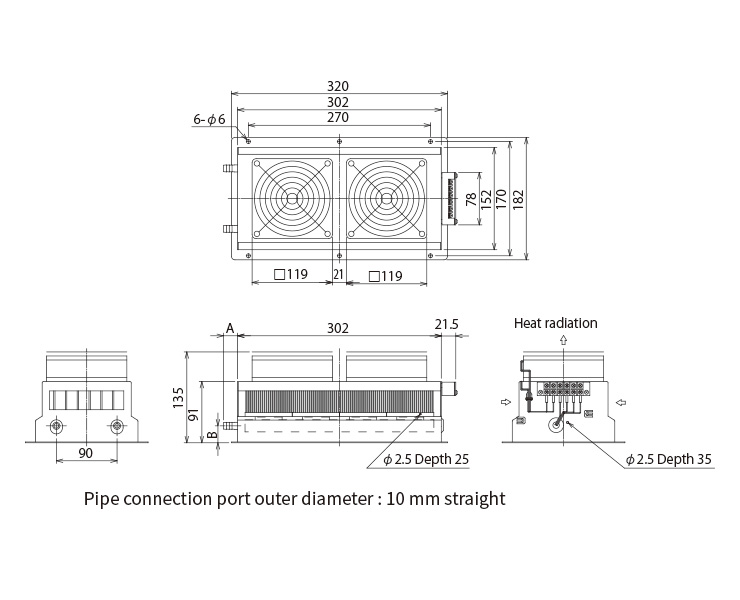

F160LT Dimensional drawing
OCE-F240LA/LT-D24
Cooling capacity
F240LA：320W F240LT：280W
A complete set of supply
BOXCOOL : 1 unit Instruction manual : 1 copy

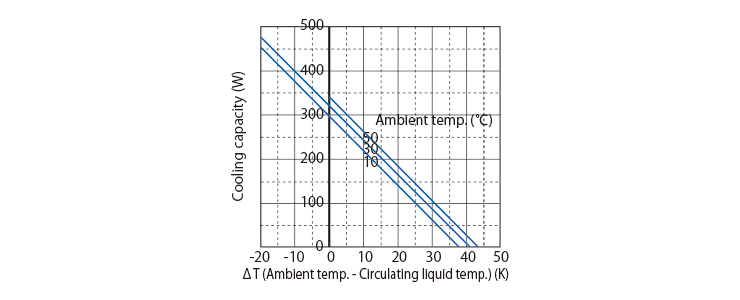

F240LA Performance chart

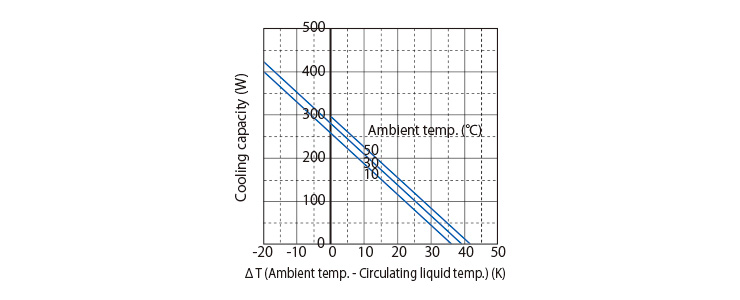

F240LT Performance chart
F240LA Achieving temp. characteristic chart

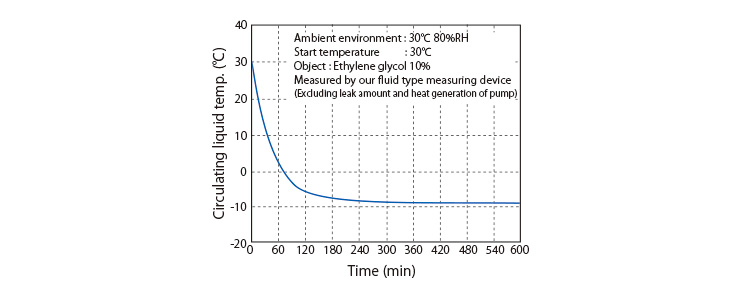

F240LT Achieving temp. characteristic chart
F240LA Dimensional drawing

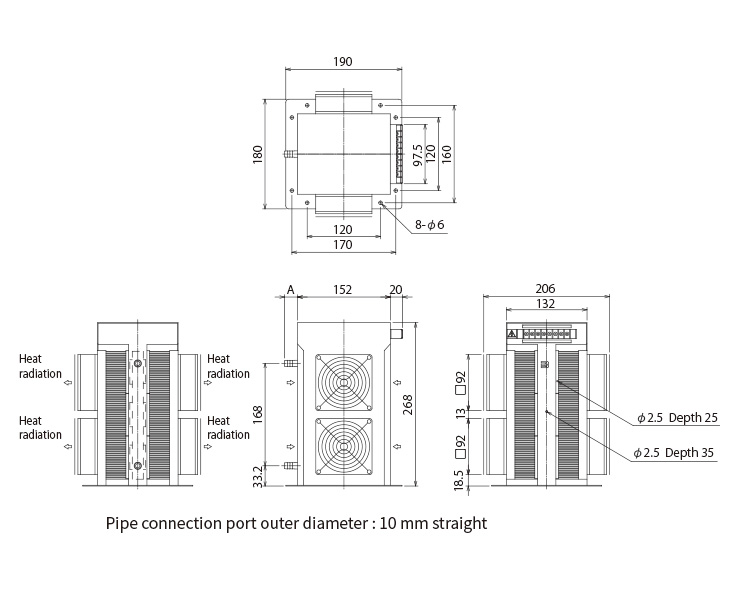

F240LT Dimensional drawing
System combination
By combination of BOXCOOL and components, various systems having different operation control from continuous operation to precise inversion control can be built.

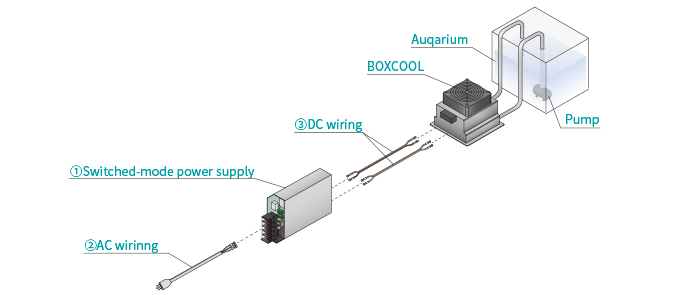

①Continuous cooling
Combines BOXCOOL with a power supply for continuous running
| Component name | Model | |||
| OCE-F80LA-D24 OCE-F80LT-D24 |
OCE-F160LA-D24 OCE-F160LT-D24 |
OCE-F240LA-D24 OCE-F240LT-D24 |
||
| ① | Switched-mode power supply | PBA300F-24 | PBA600F-24 | Contact us for the details |
| ② | AC wiring ※1 | WH-A-M4-2 | ||
| ③ | DC wiring | WH-P-M5-2、WH-F-M5-2 | WH-P-M5-2 (2 pcs), WH-F-M5-2 | |
*1 For 100VAC power supply
②Simple thermal control system
ON/OFF control is done by a temperature controller using a contact in the power supply.
| Component name | Model | |||
| OCE-F80LA-D24 OCE-F80LT-D24 |
OCE-F160LA-D24 OCE-F160LT-D24 |
OCE-F240LA-D24 OCE-F240LT-D24 |
||
| ① | Temeprature controller | OCE-TC91-8Y1-1C | Contact us for the details | |
| ② | Switched-mode power supply | PBA300F-24 | PBA600F-24 | |
| ③ | Temperature sensor | OCE-TCPT** | ||
| ④ | AC wiring ※1 | WH-A-M4-2 | ||
| ⑤ | Wiring to temperature controller | WH-C2 | ||
| ⑥ | DC wiring | WH-P-M5-2, WH-F-M5-2 | WH-P-M5-2 (2 pcs), WH-F-M5-2 | |
*1 For 100VAC power supply

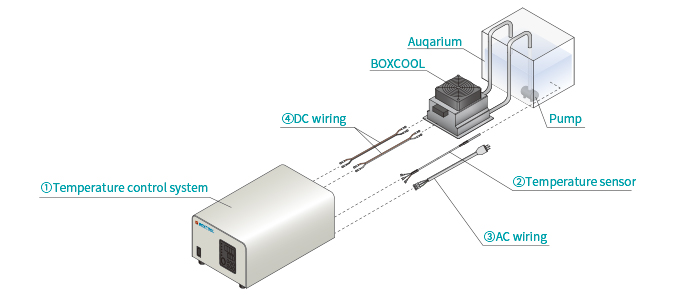

③Precise inversion control system
Highly precise temperature control is achieved by linear voltage controlled switching of cooling and heating using our Temperature Control system designed for BOXCOOL.
| Component name | Model | |||
| OCE-F80LA-D24 OCE-F80LT-D24 |
OCE-F160LA-D24 OCE-F160LT-D24 |
OCE-F240LA-D24 OCE-F240LT-D24 |
||
| ① | Temperature control system | OCE-TCR24300WL | OCE-TCR24600WL | Contact us for the details |
| ② | Temperature sensor | OCE-TCPT** | ||
| ③ | AC wiring *1 | WH-A-M4-2 | ||
| ④ | DC wiring | WH-P-M4-2, WH-F-M4-2 | WH-P-M4-2 (2 pcs),WH-F-M4-2 | |
*1 For 100VAC power supply
Cautions
・Avoid controlling supply voltage to the fan. Failure to this can be a cause of breakdown of the product.
・Do not use this product in a place where flammable or corrosive gasses, oil fume or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Indoor use only.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
・Do not use this product in a place where flammable or corrosive gasses, oil fume or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Indoor use only.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
