Forced air cooling type
Powerfully dehumidifies air by forcible air convection using a fan
Features
| Environment of use | Dehumidification method | Specifications | |
| Indoor | Thermoelectric | Energy saving mode | Wide range of supply voltages |
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Model/Specifications

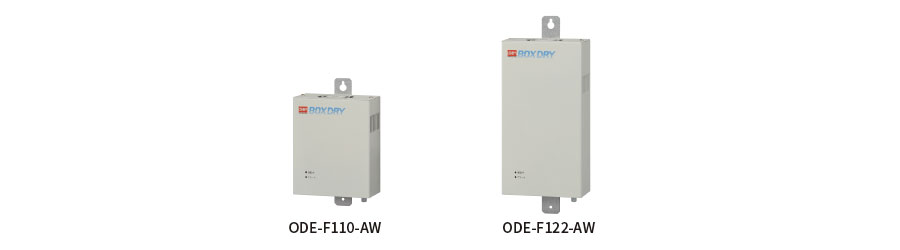

| Model | ODE-F110-AW | ODE-F122-AW | |
| Dehumidification capacity*1 | 10ml/h | 22ml/h | |
| Rated voltage | Single phase, 100 - 240V AC | ||
| Current consumption | Dehumidification ON | 0.20A (100VAC) 0.15A (240VAC) | 0.70A (100VAC) 0.40A (240VAC) |
| Dehumidification OFF | 0.02A (100VAC) 0.03A (240VAC) | 0.05A (100VAC) 0.06A (240VAC) | |
| Starting current | 2.5A | 4.5A | |
| Rated power consumption | Dehumidification ON | 14W | 50W |
| Dehumidification OFF | 2W | 5W | |
| Working temperature | 0 to +55℃, ice-free | ||
| Working humidity | Max. 95％RH | ||
| Operation mode | Continuous/Automatic (Energy-saving) | ||
| Setting for automatic operation | To run when humidity is 50% or higher and stop when it drops below 50% | ||
| Function | ・Detection of high temperature at radiation part……When radiation part has reached +80℃ ・Detection of thermoelectric module error……… When current value of the thermoelecric module has dropped ・Detection of abnormal working temperature……When operation has stopped outside the working temperature range (below 0℃ or beyond ＋60℃） ・Detection of temperature sensor disconnection…… When temperature sensor caused wire disconnection |
||
| Error output | Contact capacity 24V DC 300mA 1a | ||
| Power connection | Triplex power cable, 1.3m | ||
| Noise | 42.5dB(A) | 49dB(A) | |
| Conformity to standards | EMC Directive | EN61000-3-2、EN61000-3-3、EN61000-6-2、EN61000-6-4 | |
| Low Voltage Directive | EN60335-1、EN60335-2-40 | ||
| Environment | RoHS2 | ||
| Dimensions (mm) *2 | W131×H161.5×D65 | W131×H250.5×D65 | |
| Weight | 1.2kg | 1.8kg | |
*1 Nominal value when ambient temperatures is +30℃ and humidity is 80％RH
*2 Drain pipe, cable and mounting stay are excluded.
*2 Drain pipe, cable and mounting stay are excluded.
- Supply voltage should be within the specified range with fluctuation not exceeding ±10%.
ODE-F110-AW
Dehumidification capacity
10ml/h
A complete set of supply
BOXDRY : 1 unit Drain hose Ø8-Ø11 : 1 pc. 1.5 m long
Wire harness for alarm output : 1 pc. 0.5 m long Instruction manual : 1 copy
Wire harness for alarm output : 1 pc. 0.5 m long Instruction manual : 1 copy
Dehumidification capability of BOXDRY is determined by inner volume of the enclosure to which it is applied. The intersection of the vertical axis and the performance curve shows the dehumifificaiton capability. Use of 2 units doubles the inner volume.

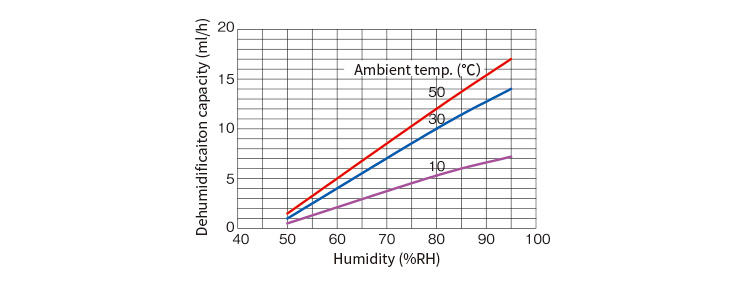

Dehumidification characteristics chart

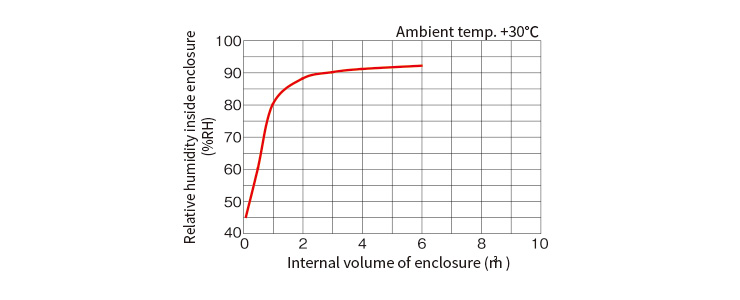

Performance by internal volume (in cont. run)
Note : The chart shows correlation of internal humidity and enclosure inner volume under the condition at 100%RH and 30℃ temperature outside the enclosure provided that the enclosure has no vent having a hermetically sealed door which is not opened more than one time a day.

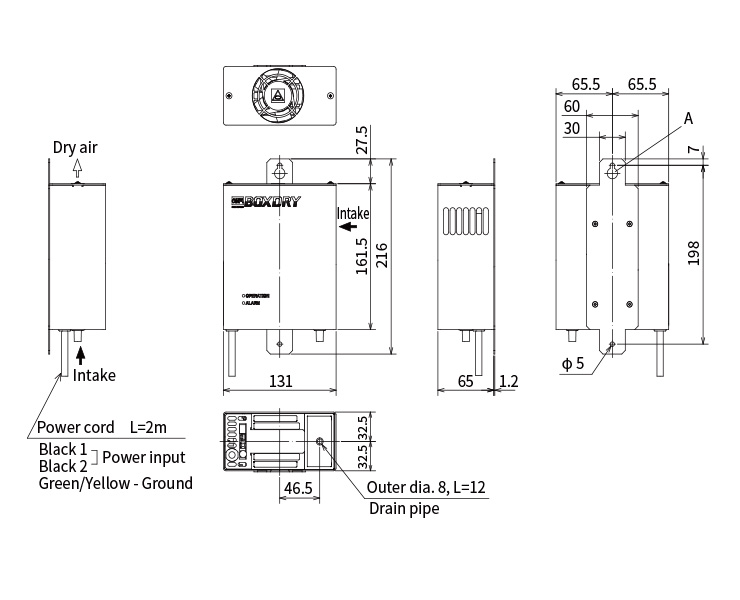

Dimensional drawing

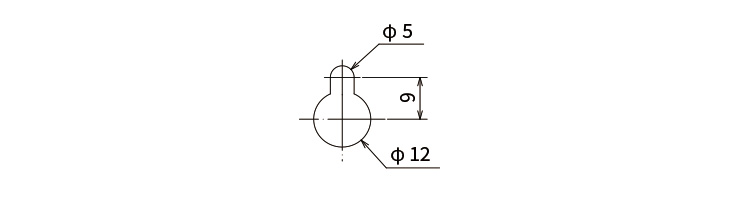

Expanded view of Section A

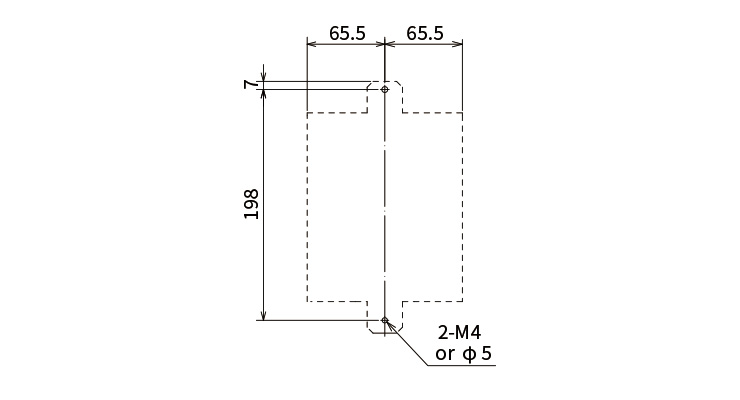

Mounting cutout

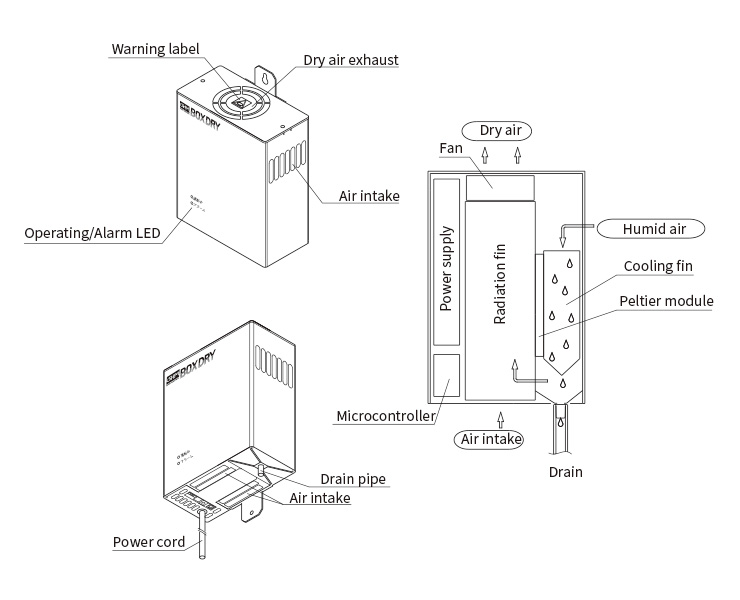

Structural drawing

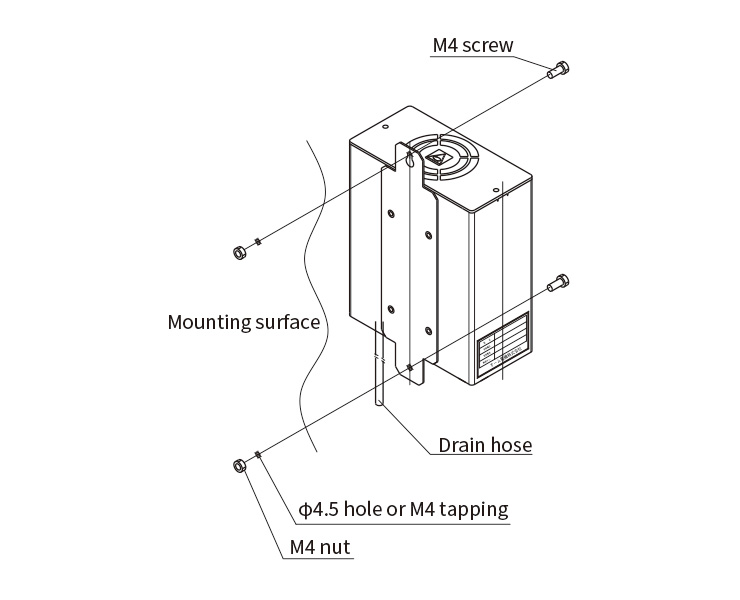

Installation drawing
ODE-F122-AW
Dehumidification capacity
22ml/h
A complete set of supply
BOXDRY : 1 unit Drain hose Ø8-Ø11 : 1 pc. 1.5 m long
Wire harness for alarm output : 1 pc. 0.5 m long Instruction manual : 1 copy
Wire harness for alarm output : 1 pc. 0.5 m long Instruction manual : 1 copy
Dehumidification capability of BOXDRY is determined by inner volume of the enclosure to which it is applied. The intersection of the vertical axis and the performance curve shows the dehumifificaiton capability. Use of 2 units doubles the inner volume.
Dehumidification characteristics chart

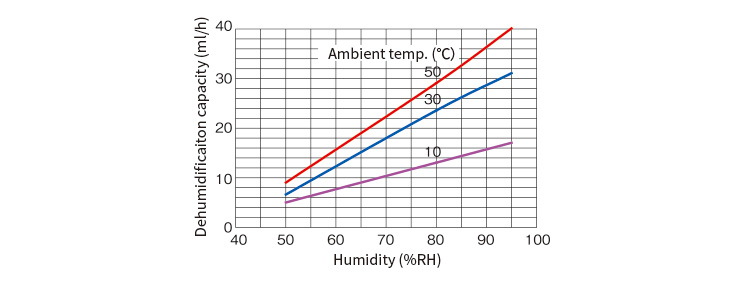

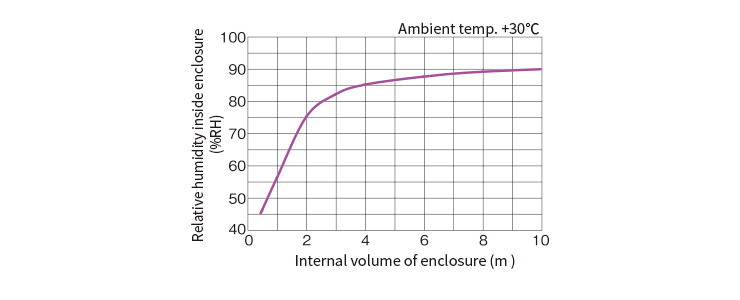

Performance by internal volume (in cont. run)

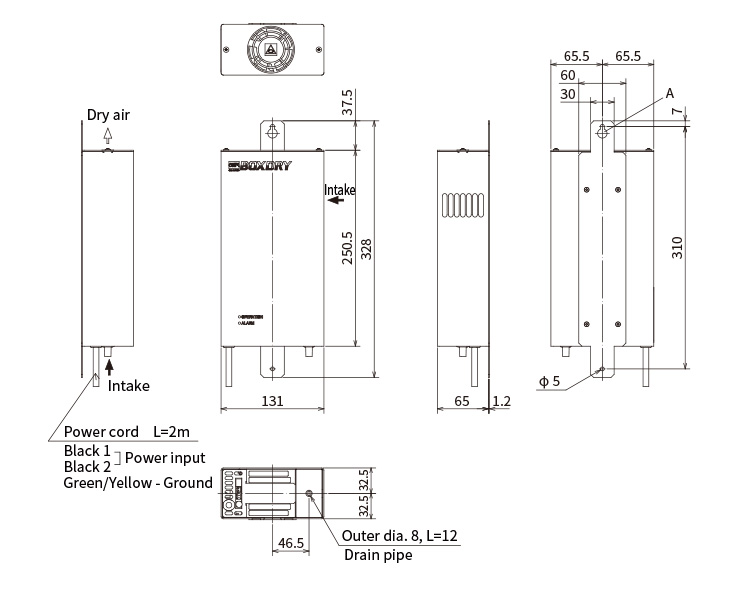

Dimensional drawing
Expanded view of Section A

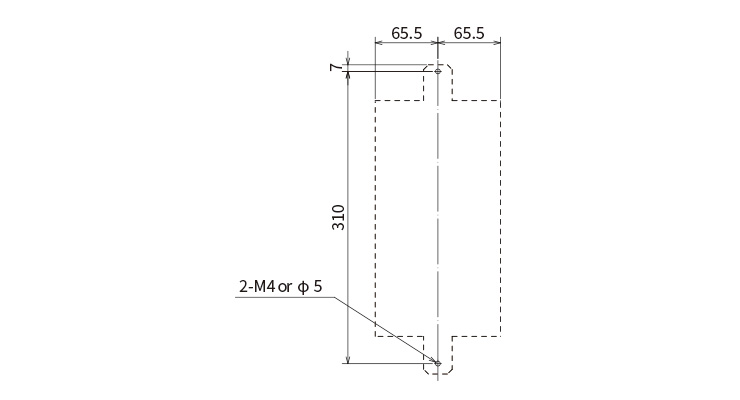

Mounting cutout
Structural drawing
Installation drawing
Temperature/Relative humidity data recording function
・Enabled data recording of temperature and relative humidity by the integrated sensor (up to 1000 data)
・Enabled analysis of temperature/relative humidity histories by time under environmental conditions of the site
・For data analysis,「use a dedicated software and cable.」
・Enabled analysis of temperature/relative humidity histories by time under environmental conditions of the site
・For data analysis,「use a dedicated software and cable.」
Related products
Drain evaporator
For eliminating troublesome drain management
Cautions
・This product is designed to be installed in an enclosure.
・Make sure that the enclosure is hermetically sealed with no vent.
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・install BOXDRY perpendicularly within 1 degree angular tolerance.
・Pay attention in attaching the drain hose (accessory). Bent or clogged hose causes trouble in drainage, which may lead to water leak into the enclosure.
・Make sure that the packaging is not damaged on delivery and contact your supplier.Any packaging damage may be a cause of breakdown.
・Make sure that the enclosure is hermetically sealed with no vent.
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・The site of use should be free from vibration and impact.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・install BOXDRY perpendicularly within 1 degree angular tolerance.
・Pay attention in attaching the drain hose (accessory). Bent or clogged hose causes trouble in drainage, which may lead to water leak into the enclosure.
・Make sure that the packaging is not damaged on delivery and contact your supplier.Any packaging damage may be a cause of breakdown.
