Thermostat
For reduction of energy costs
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Model/Specifications
| Model | OTH-05 | OTH-03 | |
| Output contact rating | 240VAC 5A（cosØ=1） | 250/115/60/48/24VAC 60/48/24VDC |
|
| Temperature setting range | OPEN（OFF）29±3℃ | +5 to +60℃ (variable) | |
| CLOSE（ON）37±4℃ | |||
| Contact rating | approx. 5A resistance load | AC10A DC=30W resistance load between terminals 5 and 3 (for heater) | |
| AC5A DC=30W resistance load between terminals 5 and 4 (for heat exchanger) | |||
| Conformity to standards | Environment | RoHS2 | |
| Dimensions | W49×H24×D24 (excl. cable) | W70×H70×D25 | |
| Weight | 190g (incl. cable) | 105g | |

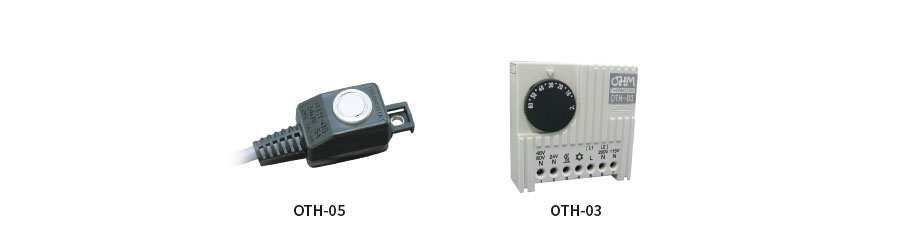

OTH-05
・Durable in oily atmosphere
・Fixed temperature setting
・Bimetallic
・Fixed temperature setting
・Bimetallic
Dimensional drawing
・Durable in oily atmosphere
・Variable temperature setting
・Bimetallic
・Variable temperature setting
・Bimetallic

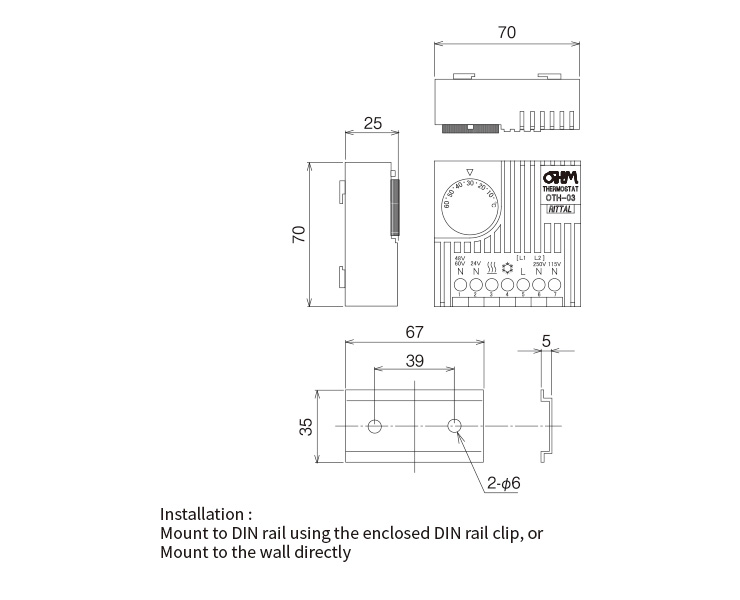

Dimensional drawing
Cautions
・This product is for indoor use only.
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
・Electrical works required for installation of this product should be done only by professionals or qualified personnel.
・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.
