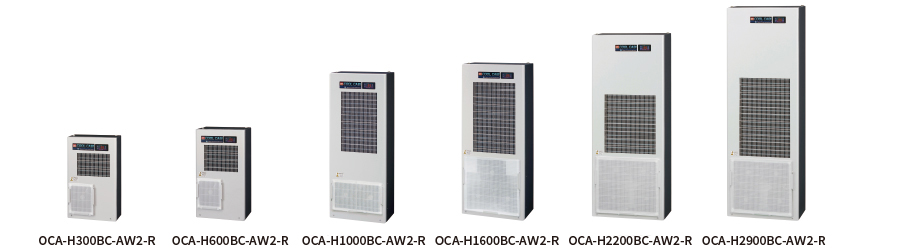

Non-fluorocarbon Bottom flow type
Wide input voltage from 200 to 240VAC, Cool air outputs from lower side
Features
| Type of mounting | Use environment | Cooling system | Type | Function | Obligatory inspection by Japanese law | Specifications |
| Lateral/Recessed | Indoor | Compressor |
Bottom flow | Energy saving mode | N/A | Wide input voltage |
| Display function | RS485 equipped |
Awarded 2014 Global Warming Prevention Activity by Japan's Environment Minister in the Technological Development and Commercialization category for
"Reducing greenhouse gases by developing low GWP enclosure coolers"
"Reducing greenhouse gases by developing low GWP enclosure coolers"
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CCC | CSA | PSE |
Model/Specification
| Model | OCA-H300BC-AW2-R | OCA-H600BC-AW2-R | OCA-H1000BC-AW2-R | OCA-H1600BC-AW2-R | OCA-H2200BC-AW2-R | OCA-H2900BC-AW2-R | |
| Type of mounting | Lateral mounting | ||||||
| Cooling capacity *1 | 240/290W | 440/550W | 720/920W | 1290/1440W | 1880/2070W | 2370/2640W | |
| Rated voltage（50/60Hz） *2 | Single phase 200 to 240VAC | ||||||
| Rated current consumption*3 | 200V | 1.2/1.5A | 2.1/2.7A | 2.9/3.7A | 3.4/4.4A | 5.0/5.3A | 6.6/7.8A |
| 220V | 1.3/1.5A | 2.3/2.7A | 3.1/3.7A | 3.4/4.5A | 5.8/5.1A | 6.7/7.4A | |
| 240V | 1.5/1.5A | 2.8/2.7A | 3.5/3.6A | 3.4/4.5A | 7.4/5.1A | 7.4/7.1A | |
| Max. current consumption*3 | 1.6/1.7A | 3.0/3.0A | 4.0/4.3A | 4.2/5.2A | 8.0/6.8A | 9.1/10.8A | |
| Starting current | 4.9/4.6A | 10.3/10.1A | 14.5/13.8A | 20.7/19.1A | 33.3/31.4A | 38.1/34.1A | |
| Rated power consumption *3 | 200V | 230/270W | 410/440W | 570/690W | 660/800W | 930/1050W | 1290/1540W |
| 220V | 260/310W | 490/490W | 650/760W | 720/860W | 1070/1110W | 1380/1590W | |
| 240V | 320/340W | 620/550W | 750/840W | 790/930W | 1300/1210W | 1550/1670W | |
| Max. power consumption *3 | 350/380W | 690/630W | 890/970W | 950/1170W | 1530/1480W | 1970/2190W | |
| Working temperature *3 | ＋20 to ＋50℃ | ||||||
| Working humidity | Not exceeding 85％RH, free from condensation | ||||||
| Noise | 63dB (A) | 64dB(A) | 65dB(A) | 66dB(A) | 66dB(A) | 66dB(A) | |
| Temp. setting range *3 | ＋30 to＋45℃ （Default +35℃） | ||||||
| Display | Internal temperature/Alarm code/Operation lamp (Green)/Alarm lamp (Red) | ||||||
| Function | Off-temperature alarm, Detection of abnormal heat dissipation, Detection of temperature sensor disconnection, Maintenance reminder, Forced cooling operation for inspection |
||||||
| Alarm output | No-voltage contact output 1a x 2 (COMMON) 250VAC 2A 30VDC 2A | ||||||
| Communication function | RS485 2-wire system (Modbus RTU) | ||||||
| Vibration withstand | Vibration frequency10 to 55Hz, Amplitude 0.15mm, Sweep cycle 10 times | ||||||
| Protection category *4 | Internal circuit IP54 equivalent | ||||||
| Conformity to standards | EMC Directiv | EN61000-6-4, EN61000-6-2 | |||||
| Low Voltage Directive | EN60335-1, EN60335-2-40 | ||||||
| Environment | RoHS2 | ||||||
| Refrigerant | R1234yf （130g） |
R1234yf （280g） |
R1234yf （500g） |
R1234yf （780g） |
R1234yf （1000g） |
R1234yf （1100g） |
|
| GWP *5 | ＜1 | ||||||
| Color | Powder coating N8 corresponding, N4 corresponding | ||||||
| Dimensions（mm）*6 |
W300×H500 ×D150 |
W300×H550 ×D200 |
W350×H900 ×D200 |
W390×H950 ×D220 |
W450×H1150 ×D220 |
W450×H1350 ×D220 |
|
| Weight | 16.0kg | 20.0kg | 33.0kg | 41.0kg | 50.0kg | 62.0kg | |
*1 Nominal value when both of internal and external temperatures are +35℃.
*2 The permissible voltage variation during operation is within +5% to -10% to the rated value, which means instantaneous variation and does not mean a supply voltage constantly input.
*3 Nominal values at 35℃ temperature both inside and outside are indicated in “Rated” and values at 50℃ ambient air are indicated in “Max” .
*4 Use only within the specified temperature range.
*5 By IPCC 5th Report 2013
*6 Excluding projections
*2 The permissible voltage variation during operation is within +5% to -10% to the rated value, which means instantaneous variation and does not mean a supply voltage constantly input.
*3 Nominal values at 35℃ temperature both inside and outside are indicated in “Rated” and values at 50℃ ambient air are indicated in “Max” .
*4 Use only within the specified temperature range.
*5 By IPCC 5th Report 2013
*6 Excluding projections
Quick Selection
Simply input some information to see the best suited models and the required capacity for your application.
OCA-H300BC-AW2-R
Cooling capacity
240/290W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc. ●Fixing bolt：4 pcs ●Washer：4 pcs ●Spring washer：4 pcs
●Nut：4 pcs ●Packing：1 roll ●Drain hose：1 pc （2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
●Nut：4 pcs ●Packing：1 roll ●Drain hose：1 pc （2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S1（2pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

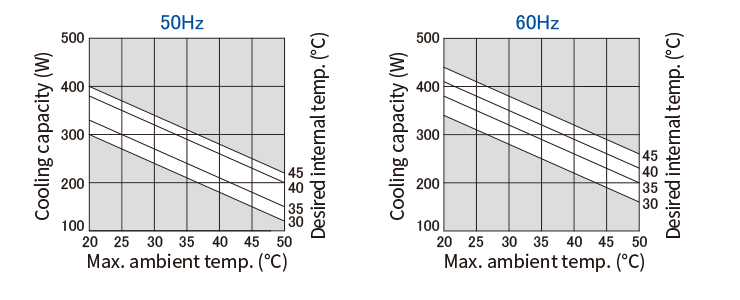

Performance diagram
- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.

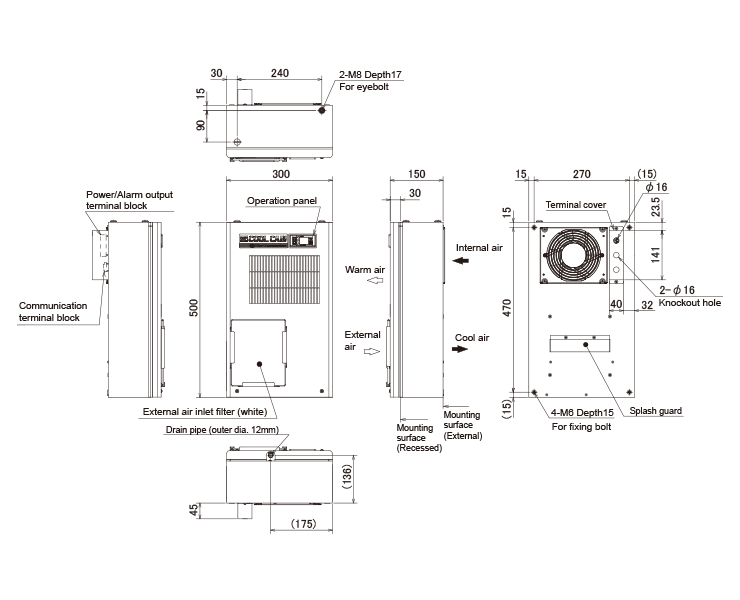

Dimensional drawing

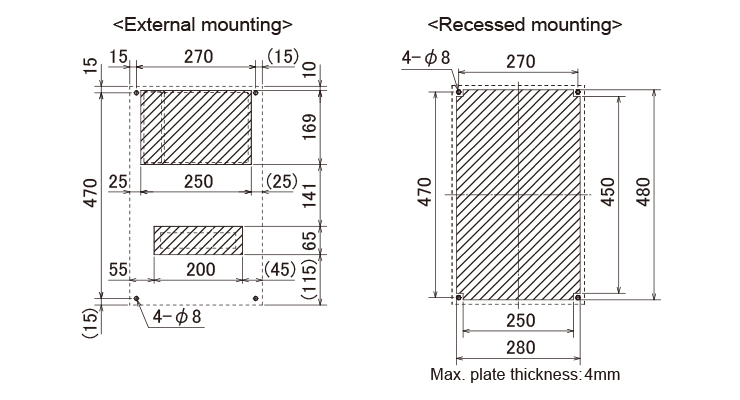

Mounting cutout
Cooling capacity
440/550W（50/60Hz）
A complete set of supply
●COOLCABI：1pc ●Fixing bolt：4 pcs ●Washer：4 pcs ●Spring washer：4 pcs
●Nut：4 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
●Nut：4 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m） ●Terminal board：1 pc.
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S1（2pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

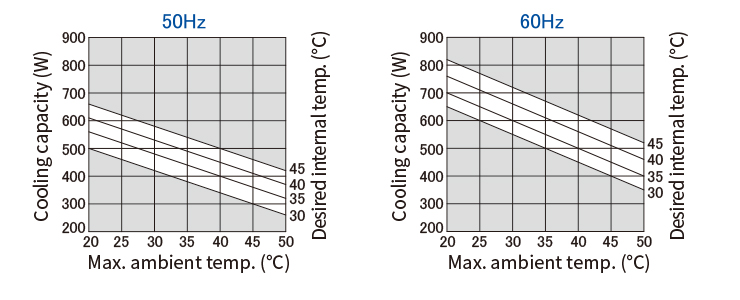

Performance diagram
- Click the image to enlarge.
- Please refer to "Model selection for enclosure cooler" when you see the performance diagram.

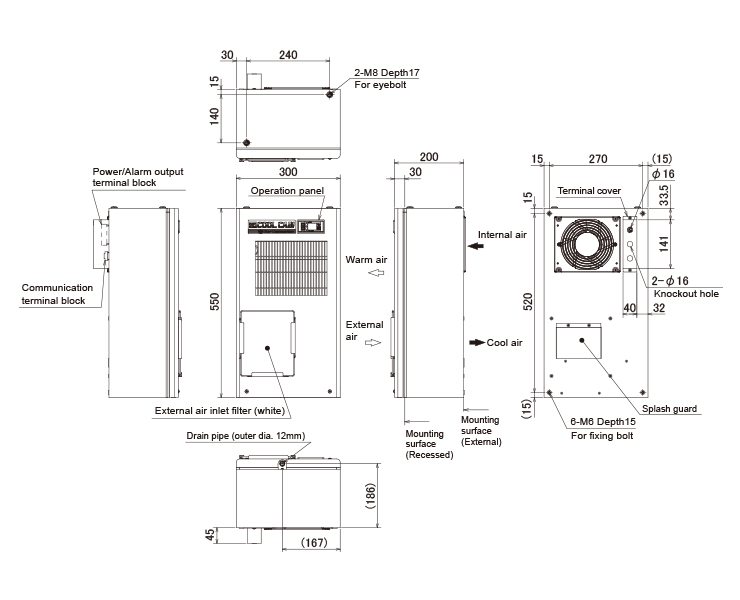

Dimensional drawing

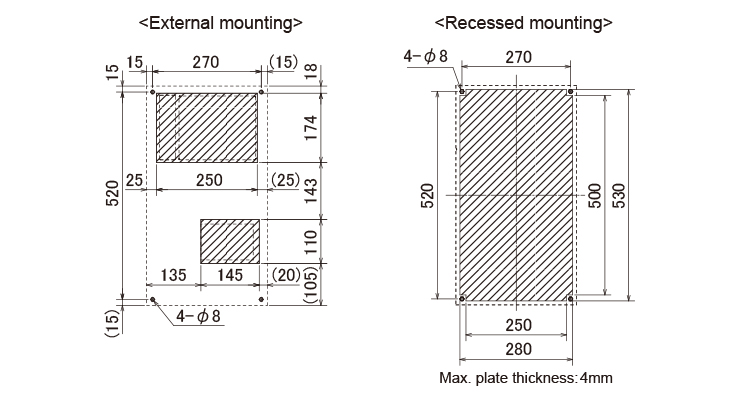

Mounting cutout
Cooling capacity
720/920W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc. ●Fixing bolt：6 pcs ●Washer：6 pcs ●Spring washer：6 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S2（2pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

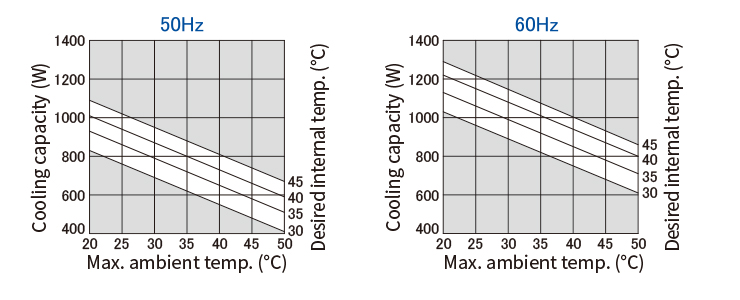

Performance diagram
- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.

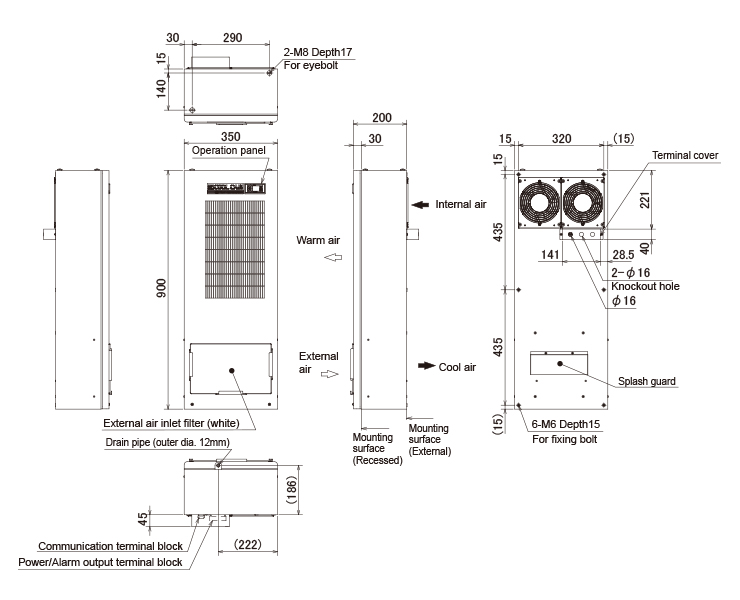

Dimensional drawing

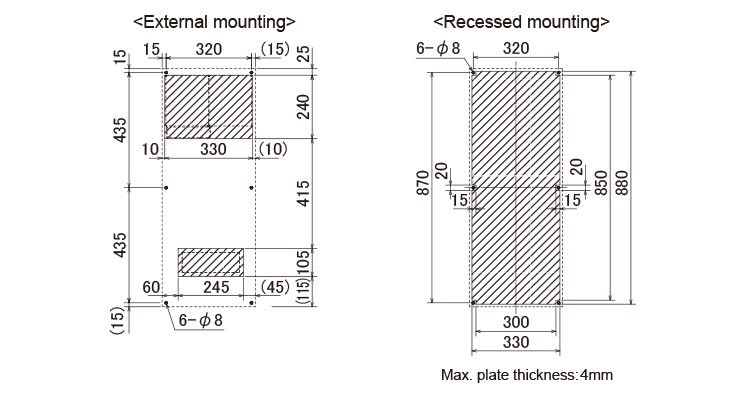

Mounting cutout
Cooling capacity
1290/1440W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc ●Fixing bolt：6 pcs ●Washer：6 pcs ●Spring washer：6 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose:1 pc.（2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
●Nut：6 pcs ●Packing：1 roll ●Drain hose:1 pc.（2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S3（2 pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

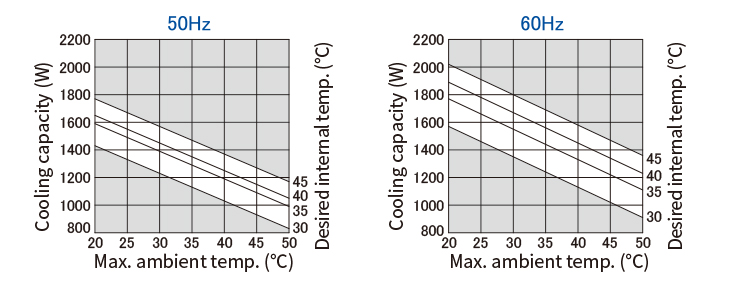

Performance diagram
- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.

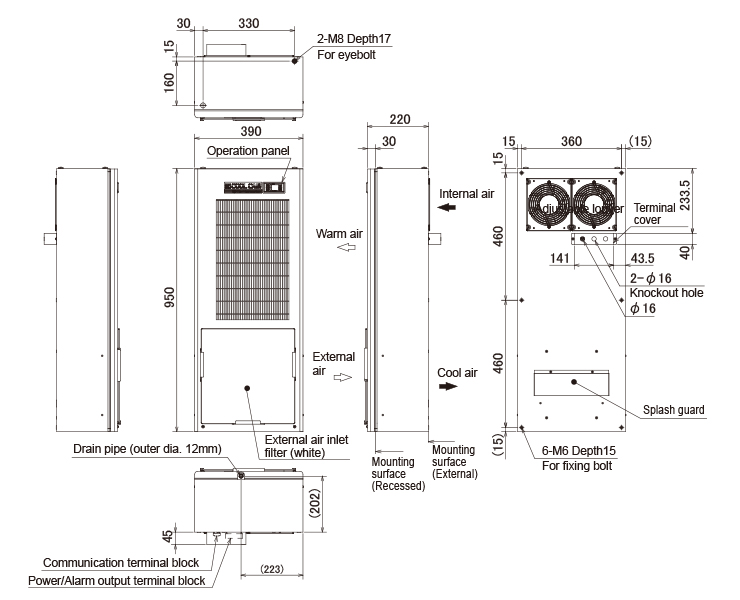

Dimensional drawing

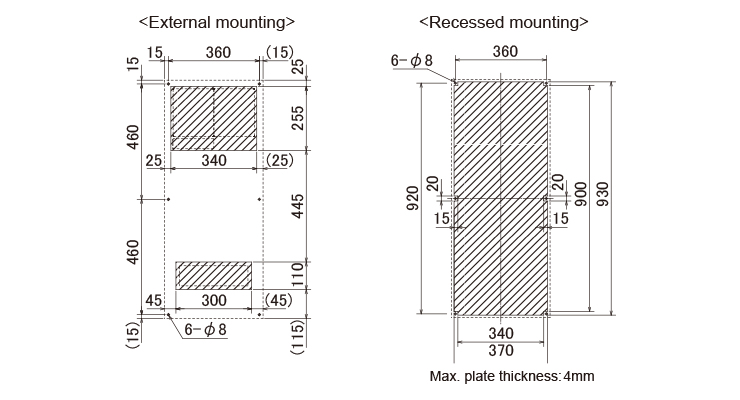

Mounting cutout
Cooling capacity
1880/2070W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc ●Fixing bolt：6 pcs ●Washer：6 pcs ●Spring washer：6 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S7（2 pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

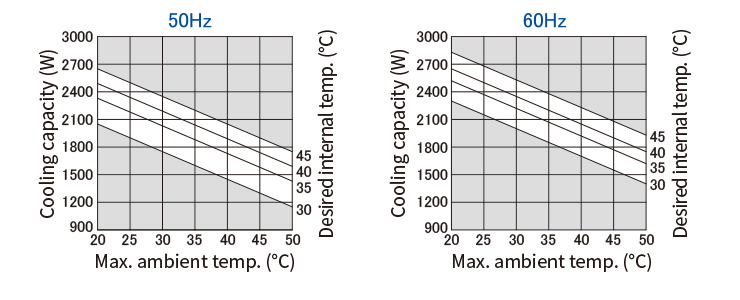

Performance diagram
- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.

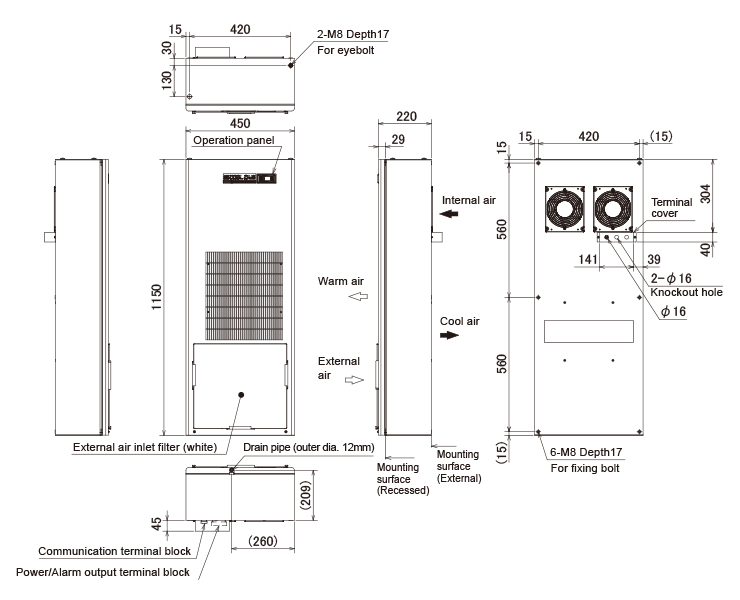

Dimensional drawing

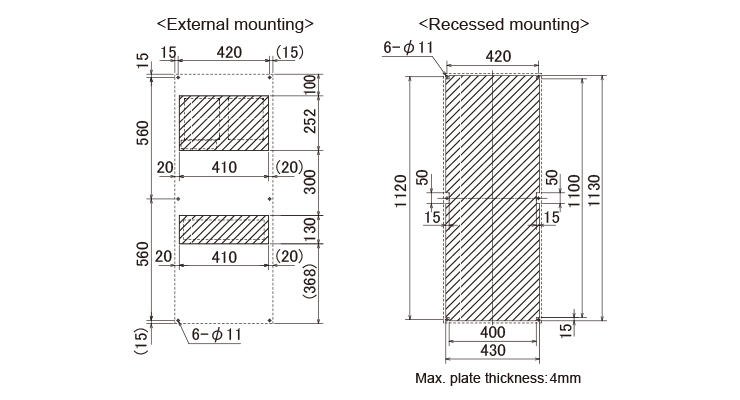

Mounting cutout
Cooling capacity
2370/2640W（50/60Hz）
A complete set of supply
●COOLCABI：1 pc. ●Fixing bolt：6 pcs ●Washer：6 pcs ●Spring washer：6 pcs
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
●Nut：6 pcs ●Packing：1 roll ●Drain hose：1 pc.（2m）
●Alarm explanation sheet： JP/EN/CN 1 sheet each
●Instruction manual with a supplement：1 copy
Consumable parts
| Replacement fan | Replacement filter | |
| Internal fan model | FM-15038P-AW230-00 | CF-S7（2 pcs/set） |
| External fan model | FM-15038M-AW230-00 | |

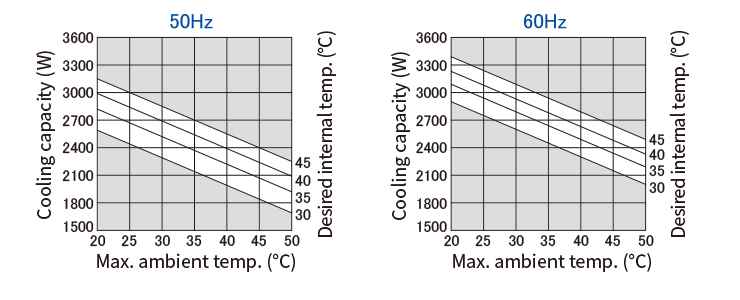

Performance diagram
- Click the image to enlarge.
- Please refer to "Model Selection for enclosure cooler" when you see the performance diagram.

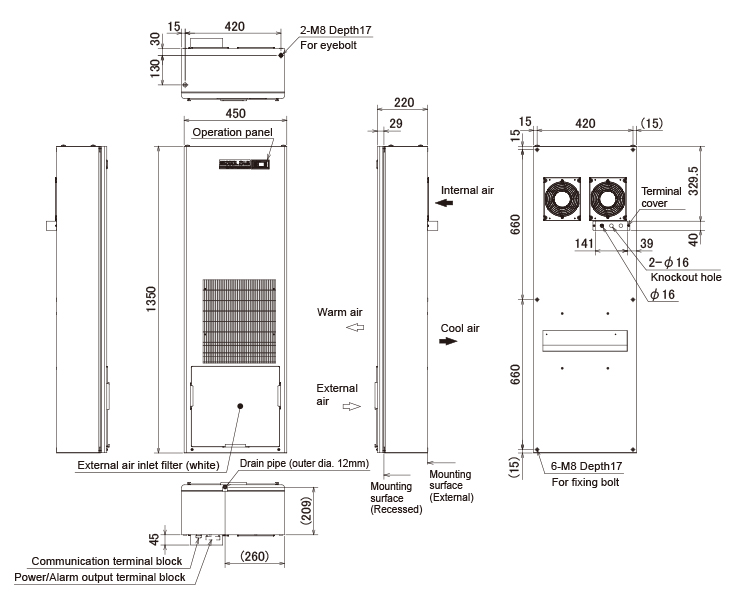

Dimensional drawing

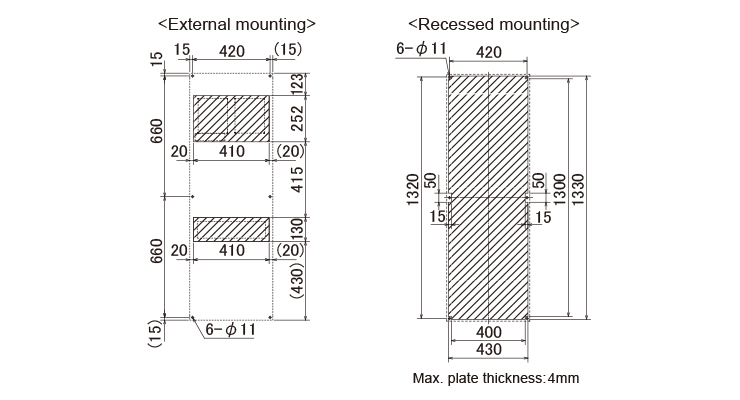

Mounting cutout
Condensate evaporator
Condensate evaporator for eliminating troublesome drain management
Self-winding filter
Roll filter is wound up automatically by motor.
Free yourself from troublesome filter maintenance work.
Free yourself from troublesome filter maintenance work.
Cautions
・Locate the unit so as to assure good ventilation and distance of at least 200mm from the walls or other units.
Failure to this may degrade cooling performance of the unit and cause condensation.
・Setting temperature should be basically at 35℃. Avoid setting at an unnecessarily low value.
・Electrical connection should be made via appropriate circuit breakers.
・This product is designed for indoor use only.
・Do not use this product in the following places.
- A place where corrosive or flammable gases exist in the air, or where the insulation destruction occurs.
- A place where the product may be subject to shock or vibration.
・Make sure that electrical wiring work is done by qualified electrician.
・Check for damage on packaging when the product is delivered. .Any packaging damage can lead to a cause of malfunction. Make sure that there is no damage on the package on delivery and contact your supplier, if any.
Failure to this may degrade cooling performance of the unit and cause condensation.
・Setting temperature should be basically at 35℃. Avoid setting at an unnecessarily low value.
・Electrical connection should be made via appropriate circuit breakers.
・This product is designed for indoor use only.
・Do not use this product in the following places.
- A place where corrosive or flammable gases exist in the air, or where the insulation destruction occurs.
- A place where the product may be subject to shock or vibration.
・Make sure that electrical wiring work is done by qualified electrician.
・Check for damage on packaging when the product is delivered. .Any packaging damage can lead to a cause of malfunction. Make sure that there is no damage on the package on delivery and contact your supplier, if any.
