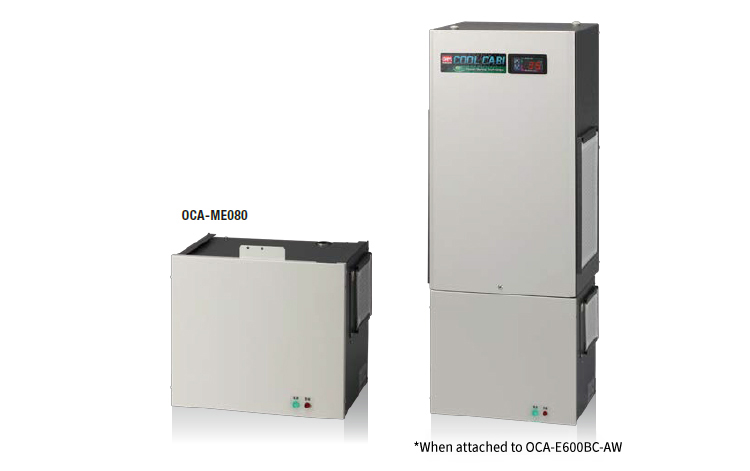

Option Non-drain unit for OCA-E
Atomizes condensate water by ultrasonic vibration. Eliminates troublesome drain management.
Model/Specification
Model | OCA-ME-080 | |
Processing method | Ultrasonic atomization | |
Applicable products | OCA-E300BC-AW, OCA-E600BC-AW OCA-E1000BC-AW, OCA-E1600BC-AW |
|
Conditions for drain-free | +35℃ , not exceeding 85%RH | |
Rated voltage *1 | Single phase, 100—240VAC, 50/60Hz | |
Max. current consumption | 100V | 0.8A |
200V | 0.5A | |
240V | 0.4A | |
Standby power consumption | 3W | |
Operating power consumption | 75W | |
Working temperature *2 | +20℃ to +55℃ | |
Working humidity | Max. 85%RH, free from condensation | |
Noise | 52 dB (A) | |
Display | Power lamp (Green)/Alarm lamp (Red) | |
Function | Float switch-operated ON/OFF at threshold amount, Overflow detection | |
Conformity | Environment | RoHS2 |
Color | N8 corresponding, N4 corresponding | |
Dimensions (mm) | W300×H260×D200 | |
Weight | 6.5kg |
*1 According to the voltage supplied from the COOLCABI attached to.
The permissible voltage variation during operation is within +10% to -10% to the rated value, which means instantaneous variation and does not mean a supply voltage constantly input.
*2 Use only within the specified temperature range.
The permissible voltage variation during operation is within +10% to -10% to the rated value, which means instantaneous variation and does not mean a supply voltage constantly input.
*2 Use only within the specified temperature range.
OCA-ME080
A complete set of supply
OCA-ME080:1 pc. ●Fixing screw (M4):4 pcs. ●Washer:4 pcs.
●Mounting stay:2 pcs. ●Mounting spacer (M4):1 pc
●Connecting hose:40 mm ●Instruction manual:1 copy
●Mounting stay:2 pcs. ●Mounting spacer (M4):1 pc
●Connecting hose:40 mm ●Instruction manual:1 copy
Consumable parts
Replacement filter | EPF-S3 |

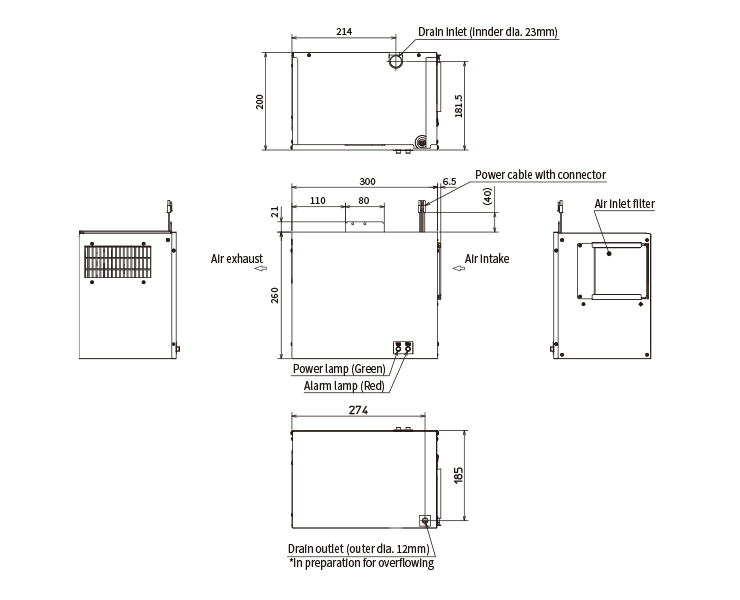

Dimensional drawing

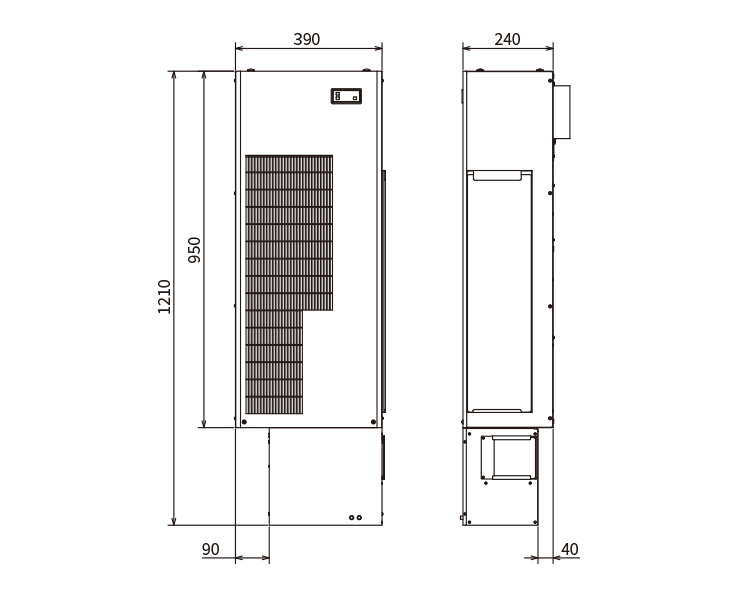

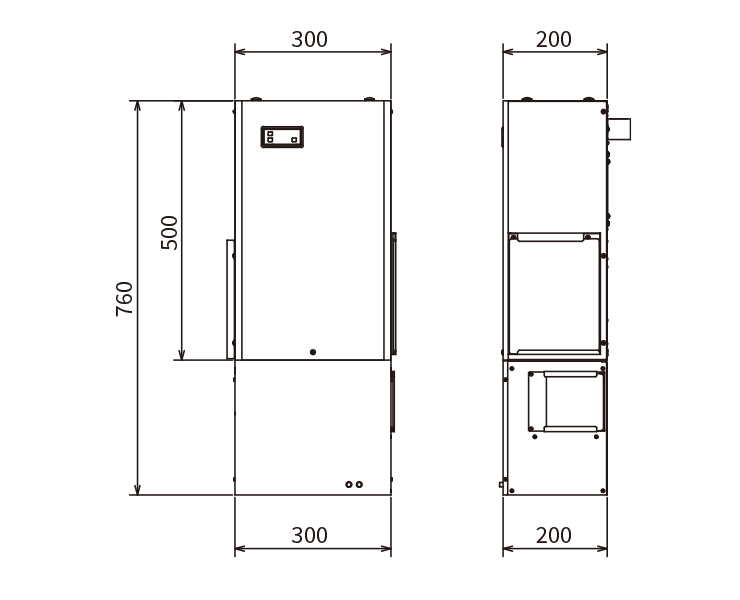

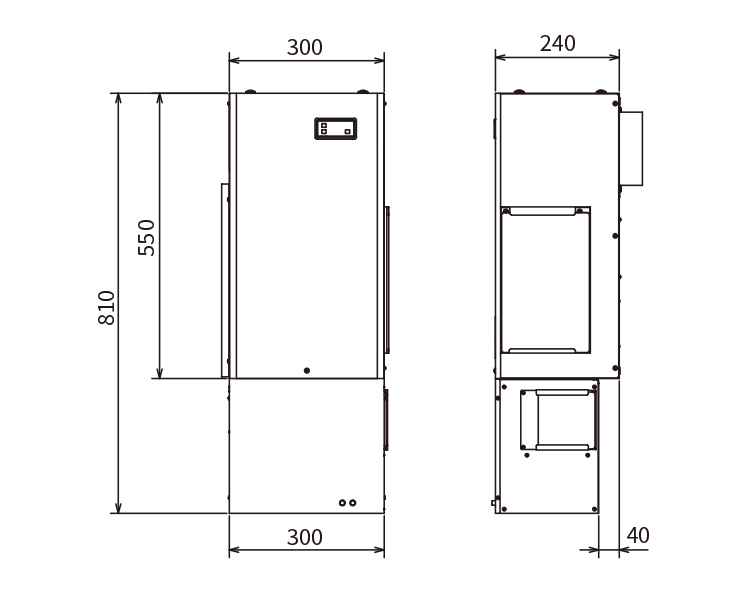

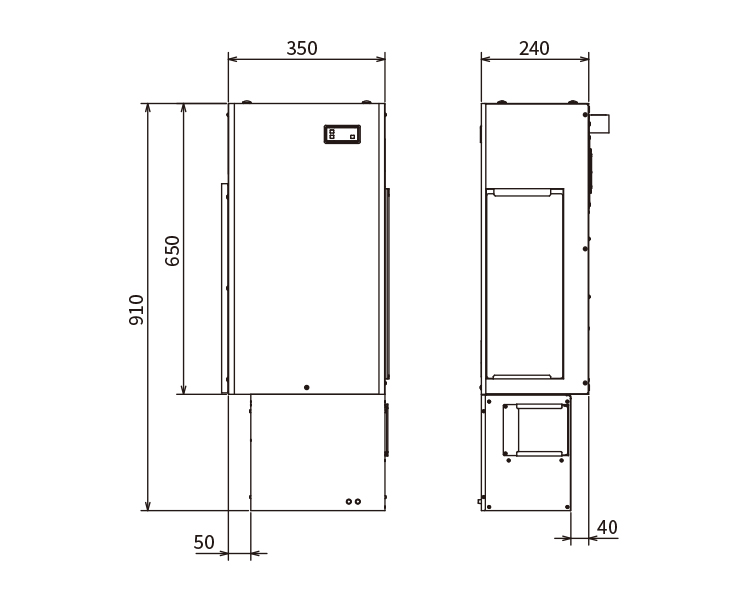

Installation drawing
Cautions
- This product is designed to process drainage water from enclosure coolers. Do not use it for any other purposes than original intention.
- Locate the unit so as to assure good ventilation and distance of at least 500mm from the walls or other units.
Failure to this may degrade performance of the unit and cause condensation. - This product is for indoor use only.
- Do not use this product in a place where corrosive or flammable gasses exist in the air, or where insulation breakdown can occur.
- Do not use this product in a place where it is subject to shock or vibration.
- Make sure that electrical wiring work is done by qualified electrician.
- Check for damage on packaging when the product is delivered. Any packaging damage can lead to a cause of malfunction.
Make sure that there is no damage on the package on delivery and contact your supplier, if any.
