Environmental solution-OIL


Option for OMC-N3 series

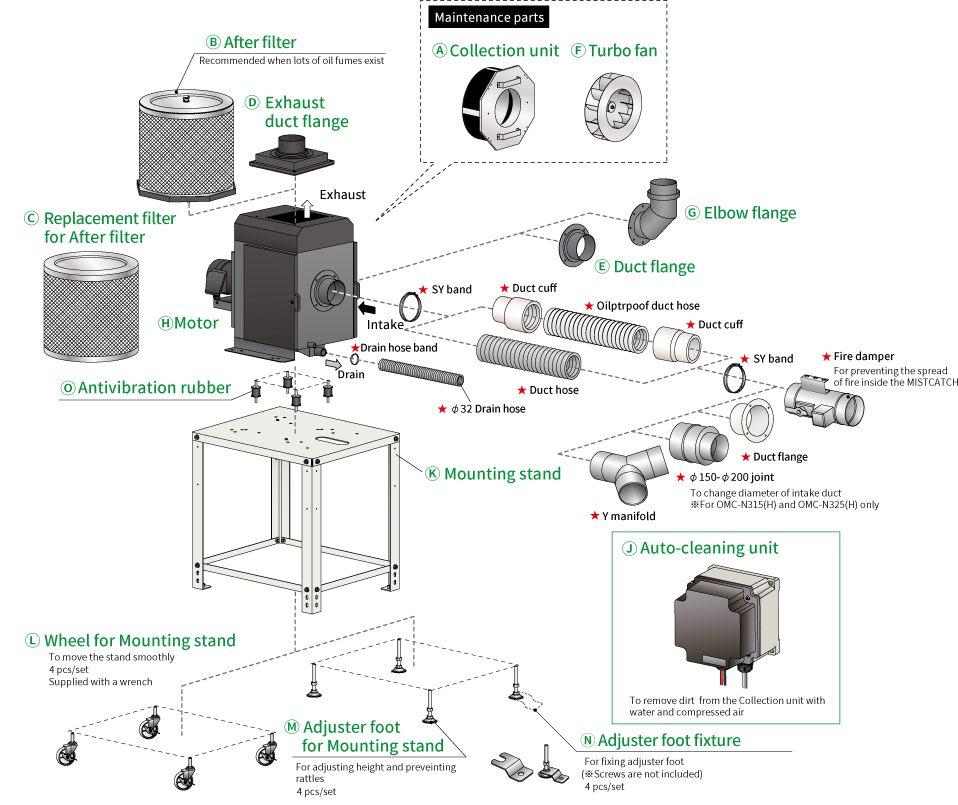

Optional accessories and maintenance parts for Non-filter type OMC-N3

Options list

Part number OMC-N305 OMC-N305H OMC-N310 OMC-N310H OMC-N315 OMC-N315H OMC-N325 OMC-N325H
A Collection Unit OMC-N305-CU12 OMC-N305-CU11 OMC-N205-CU12 OMC-N310-CU11 OMC-N210-CU12 OMC-N210-CU11 OMC-N215-CU12 OMC-N215-CU11
B After Filter OMC-N310-F40 OMC-N315-F40 OMC-N325-F40
C Replacement filter for After Filter OMC-AF-335L OMC-AF-500L
D Exhaust duct flange OMC-N305-HDF100 OMC-N310-HDF125 OMC-N315-HDF150 OMC-N325-HDF200

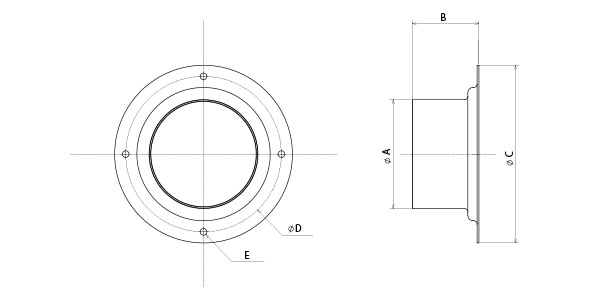

E Duct flange
OMC-N305-DF100 OMC-N310-DF125 OMC-N315-DF150 OMC-N325-DF200
F Turbo Fan OMC-N305-TF1 OMC-N310-TF1 OMC-N315-TF1 OMC-N325-TF1
G Elbow flange OMC-N305-EF100 OMC-N310-EF125 OMC-N315-EF150 OMC-N325-EF200
H Motor OMC-N305-M20 OMC-N205-M40 OMC-N210-M75 OMC-N215-M150
J Auto-cleaning Unit OMC-ATW-N2-AW
K Mounting stand OMC-PDS01
L Wheels for Mounting stand OMC-PDS01-CAS
M Adjuster foot for Mounting stand OMC-PDS01-AJF
N Adjuster foot fixing plate OMC-PDS01-AJF-ST
O Antivibration rubber OMC-N2-BG01
For the items marked with, see Common parts.

Dimensional drawing

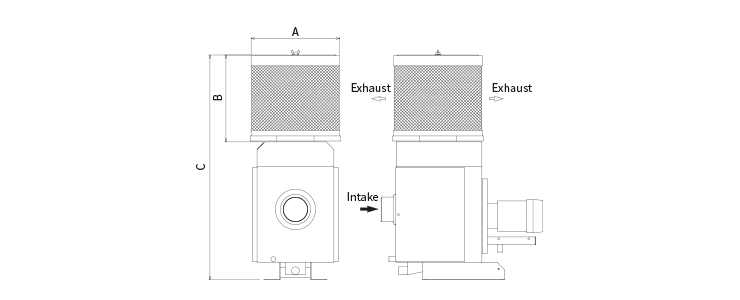

B After filter

外形寸法図

Part number A B C
OMC-N310-F40 352 353 899.5
OMC-N315-F40 352 521.5 1153.5
OMC-N325-F40 352 521.5 1281.5

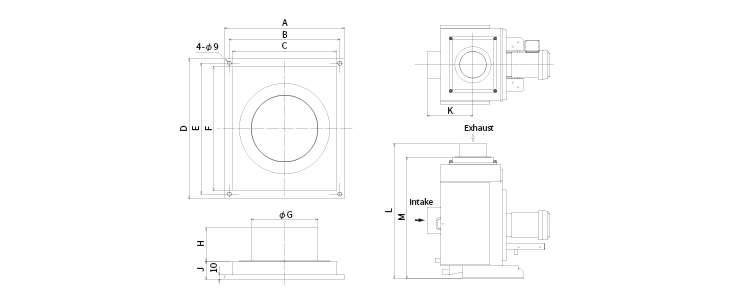

D Exhaust duct flange

外形寸法図

Part number A B C D E F G H J K L M
OMC-N305-HDF100 225 205 190 225 205 190 98 60 40 225.5 650.5 590.5
OMC-N310-HDF125 225 205 190 225 205 190 123 60 40 225.5 650.5 590.5
OMC-N315-HDF150 265 245 230 310 290 275 148 74 40 252.5 746 672
OMC-N325-HDF200 330 304 280 390 364 340 198 75 50 275 885 810

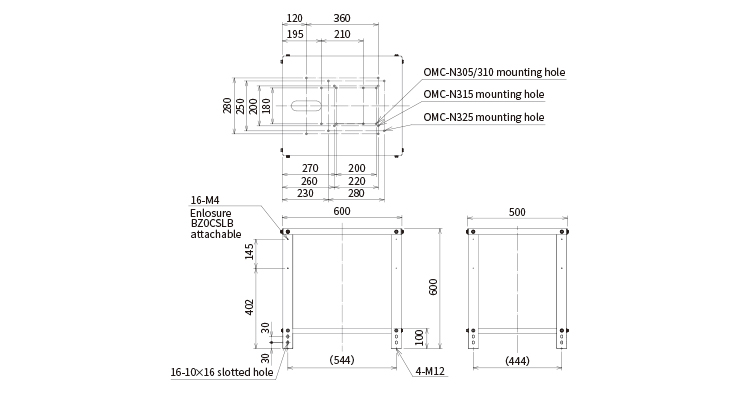

J Mounting stand

外形寸法図

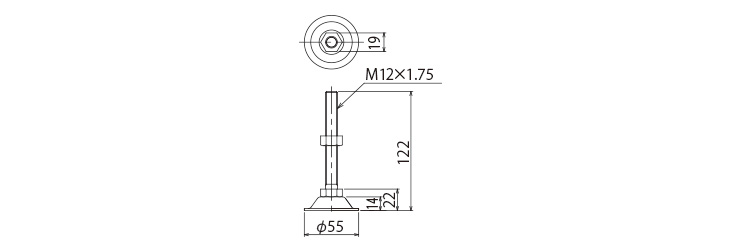

L Adjuster foot for mounting stand

外形寸法図

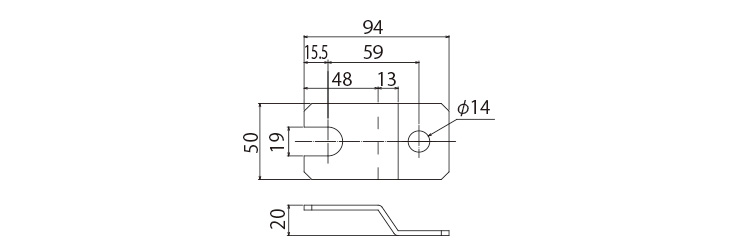

M Adjuster foot fixing plate

外形寸法図

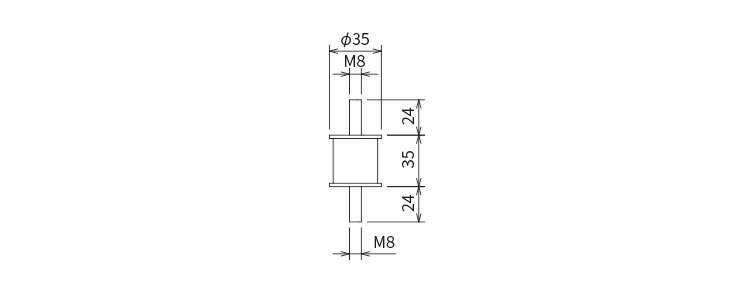

N Antivibration rubber
