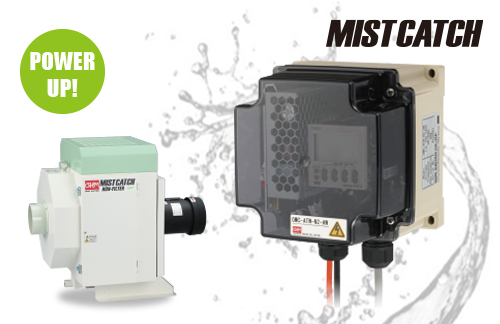

Auto-cleaning unit for MISTCATCH OMC-N2
Release on June 1, 2022
The Auto-cleaning Unit has been renewed! Keeps the best performance of your MISTCATCH with more powerful spraying.
The Auto-cleaning unit for MISTCATCH OMC-N2 evolved! Ideal for extending the service interval.
Pursued the best injection volume and pump specifications to increase cleaning power largely.
The Auto-cleaning unit for MISTCATCH OMC-N2 evolved! Ideal for extending the service interval.
Pursued the best injection volume and pump specifications to increase cleaning power largely.
Powered up in 6 points

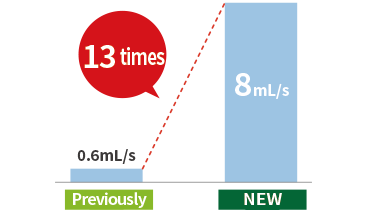

Powerful washing! |
Injection volume increased to 8 mL/s from 0.6 mL/s of the former model! Dramatically improved the cleaning power.

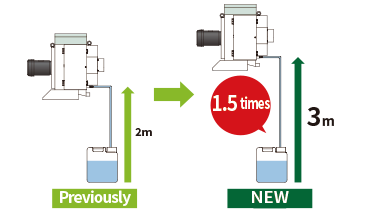

Allows installation at high places |
Employed a high-lift pump to enable installation at a high place up to 3 m.
Wide supply voltage range |
For supply voltages between 100V to 240V AC. Easy to use not only in Japan but overseas locations.

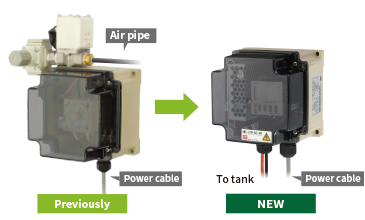

Simple installation |
Simply connect the power cable. No troublesome air piping is required.

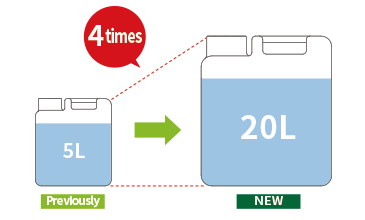

Large volume tank |
Large tank volume of 20 L increased storage capability by 4 times from the previous model. Time and trouble for supplying water are greatly reduced.

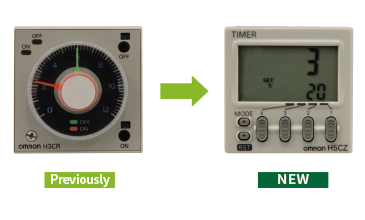

Easy-to-read display |
Analog display has been changed to Digital display. Operating status is easily identifiable.
Water injection prevents thick coating of grimes that leads to performance decline
【Testing conditions】 Model: OMC-N210H, Processed material: Aluminum, Cutting oil: Water-soluble, Operating hours: 20 hours/day, Lifting height: approx. 3m
※Working time of Auto-cleaning unit: 0.5 sec. every 20 minutes
※Working time of Auto-cleaning unit: 0.5 sec. every 20 minutes
Model
- OMC-ATW-N2-AW
See more details at Option Auto-cleaning unit for OMC-N2 Large flow type
Note: Sale of the current models OMC-ATW-N21/N22 will end as of Sep. 30, 2022.
Launch date
Wednesday, June 1st, 2022
