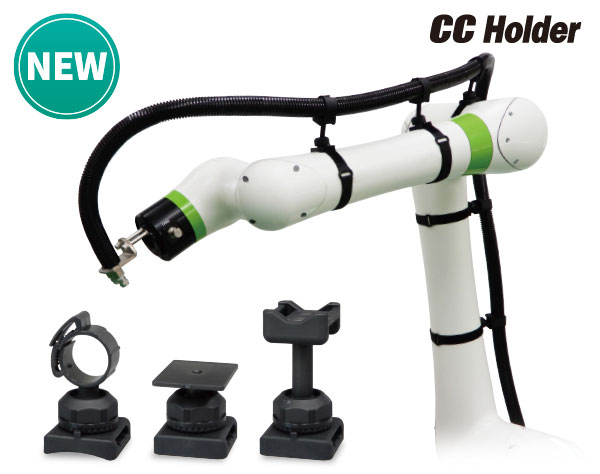

Cable holder for robots CC Holder
Release on June 16, 2023
Move or fix at will! CC Holder reduces dynamic load on cables and hoses by robot's motion
7 new models are added to the well-reputed CC holder for robots.
As a fixing method, screwing is added to the existing band fixing.

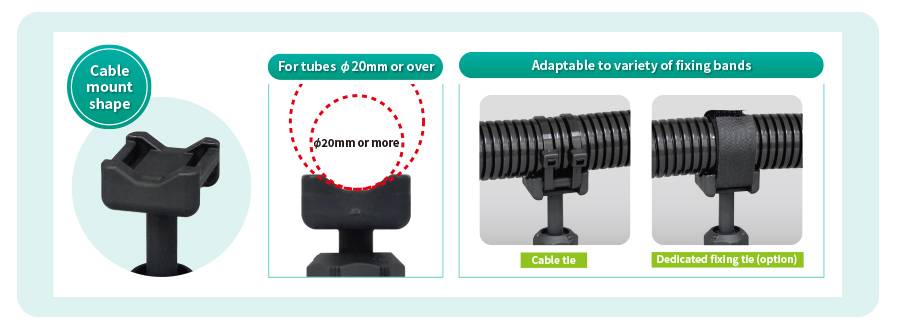

For mounting larger diameter objects, cable mount shape holder is available.
Please select the best suited model to your application.
7 new models are added to the well-reputed CC holder for robots.
As a fixing method, screwing is added to the existing band fixing.
For mounting larger diameter objects, cable mount shape holder is available.
Please select the best suited model to your application.

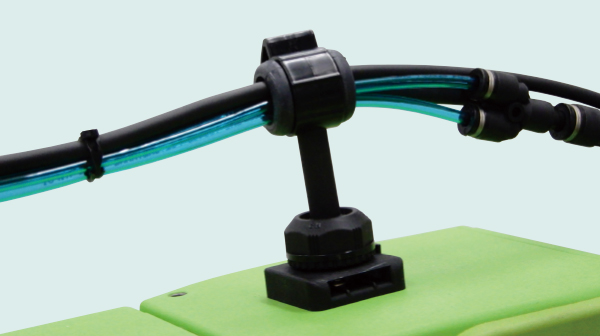

Reduce the impact of bending or twisting on cables/hoses associated with robot motion

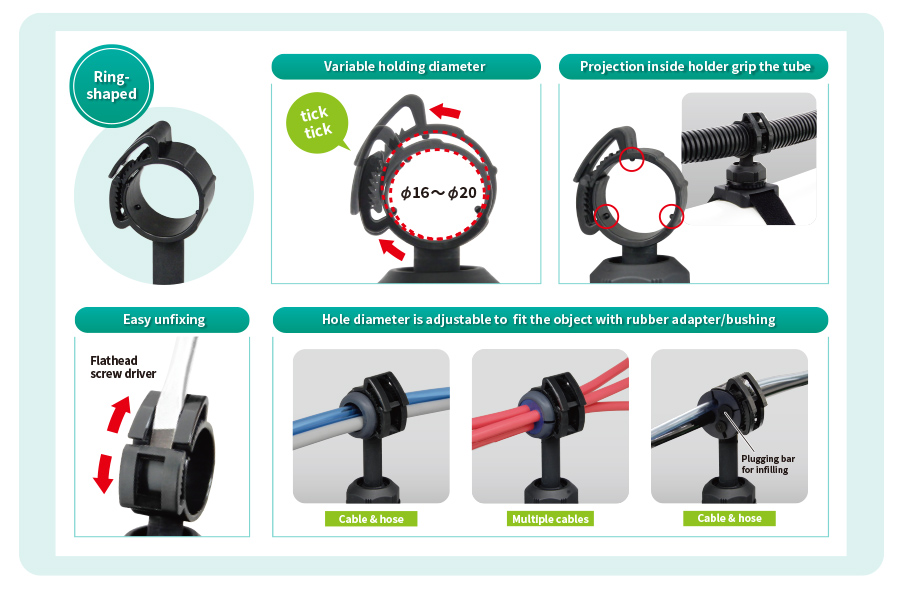

Different holder shapes fit a variety of objects |

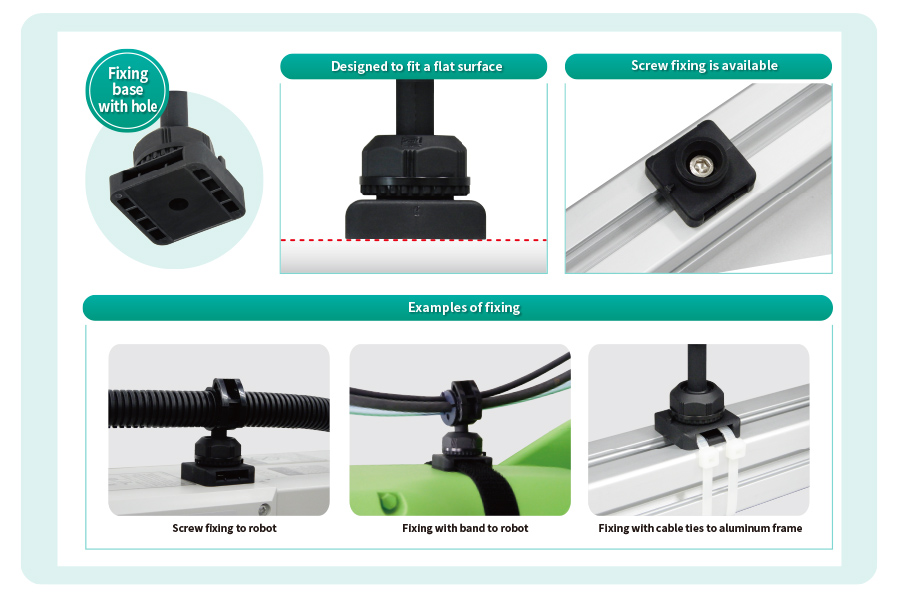

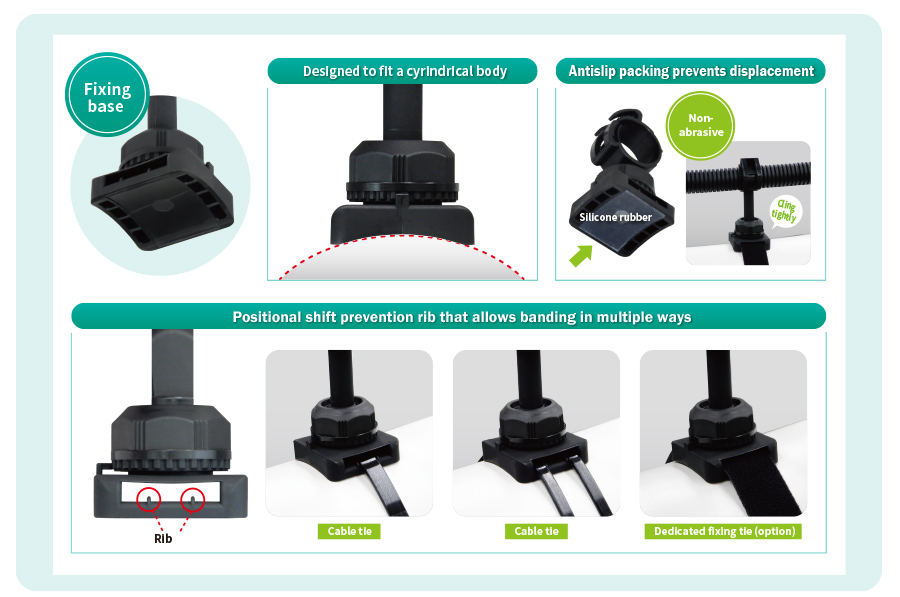

Varied mount base shapes to fit different type of locations |

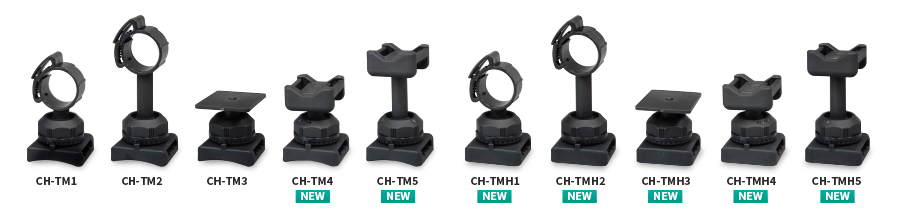

Lineup includes 10 models!
Model | Installation | Holder/Stand design | Working temperature | Color | Weight | Q'ty/pack |
CH-TM1 | Cable tie | Cable clip shape (φ20) | -25 to +80℃ | Black | 15g | 5 pcs. |
CH-TM2 | 16g | |||||

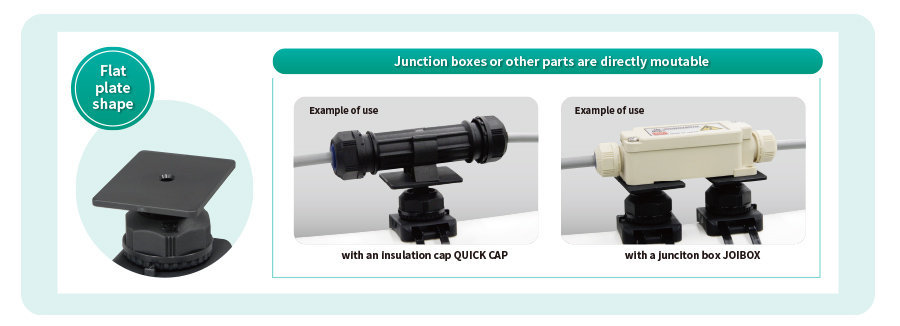

CH-TM3 | Stand shape (Flat plate with a pilot hole for M4 tapping) | 14g | ||||
CH-TM4 | Cable mount shape (Any size) | 18g | ||||
CH-TM5 | 19g | |||||
CH-TMH1 | Cable tie or M6 screw | Cable clip shape (φ20) | 15g | |||
CH-TMH2 | 16g | |||||
CH-TMH3 | Stand shape (Flat plate with a pilot hole for M4 tapping) | 15g | ||||
CH-TMH4 | Cable clip shape (φ20) | 18g | ||||
CH-TMH5 | 19g |
