Liquidtight cable gland "CAPCON" OAL Elbow Service Branch
Release on October 11, 2024
New size added to CAPCON Elbow Service Branch!

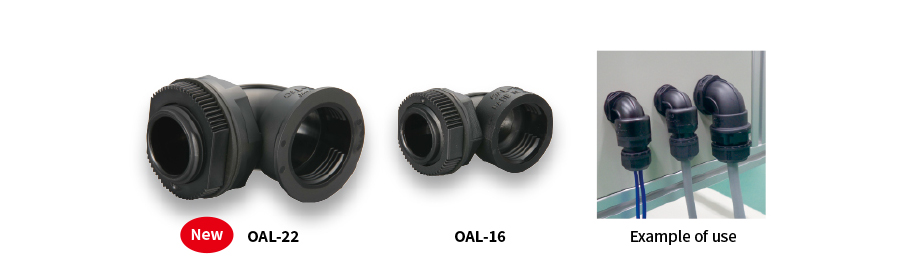

In response to customer request, OHM launched OAL-22 for CTG22 thread!
Now, the lineup of CAPCON Elbow Service Branch line has two models of CTG16 and CTG22 thread sizes.
In combination with liquidtight cable glands, various wiring patterns are available with protectivity of IP67.
The general purpose cable gland CAPCON OA-1 series can also be jointed where waterproofing is not required.
*Black color, Oilproof type only
In response to customer request, OHM launched OAL-22 for CTG22 thread!
Now, the lineup of CAPCON Elbow Service Branch line has two models of CTG16 and CTG22 thread sizes.
In combination with liquidtight cable glands, various wiring patterns are available with protectivity of IP67.
The general purpose cable gland CAPCON OA-1 series can also be jointed where waterproofing is not required.
*Black color, Oilproof type only
Make wiring smart by bending wires at a right angle!
■ OAL lineup *Oilproof type only
| Model | Entry hole diameter (mm) | Threads | Mounting plate thickness | Working temperature | Weight | Q'ty per package |
| OAL-16 | Ø21 | CTG16（G1/2） | 4mm or less | -25 to +80℃ | 13g | 20 pcs. |
| OAL-22 | Ø28 | CTG22（G3/4） | 6mm or less | 33g | 10 pcs. |
See more details at → CAPCON OAL Elbow Service Branch
OHM News
Launch date
Friday, October 11, 2024
For further details please contact us at info-cs@ohm.jp.
*The contents of this article are as of October 2024.
