Cable holder for robots CC Holder Option
Release on December 3,2024

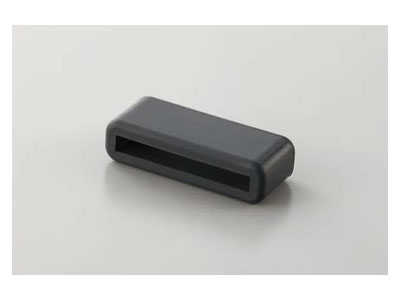

■Anti-slip loop for fixing tie
Using this loop prevents fixing tie from slipping due to robot movement.
■Model・Specification
| Model | Applicable model | Color | Weight | Q'ty/ pack |
| BLCH-20 | BCh-20-370 BCH-20-510 BCH-20-710 BCH-20-3000DP |
Black | 2g | 10 pcs |

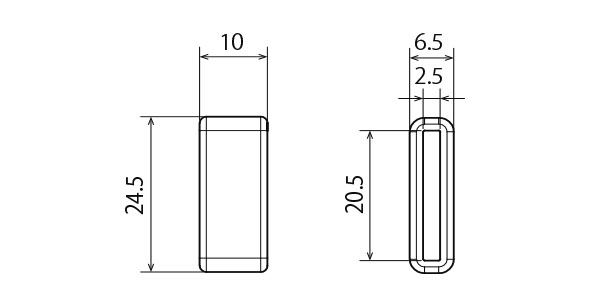

■ Dimensional drawing
【Material】Silicone rubber

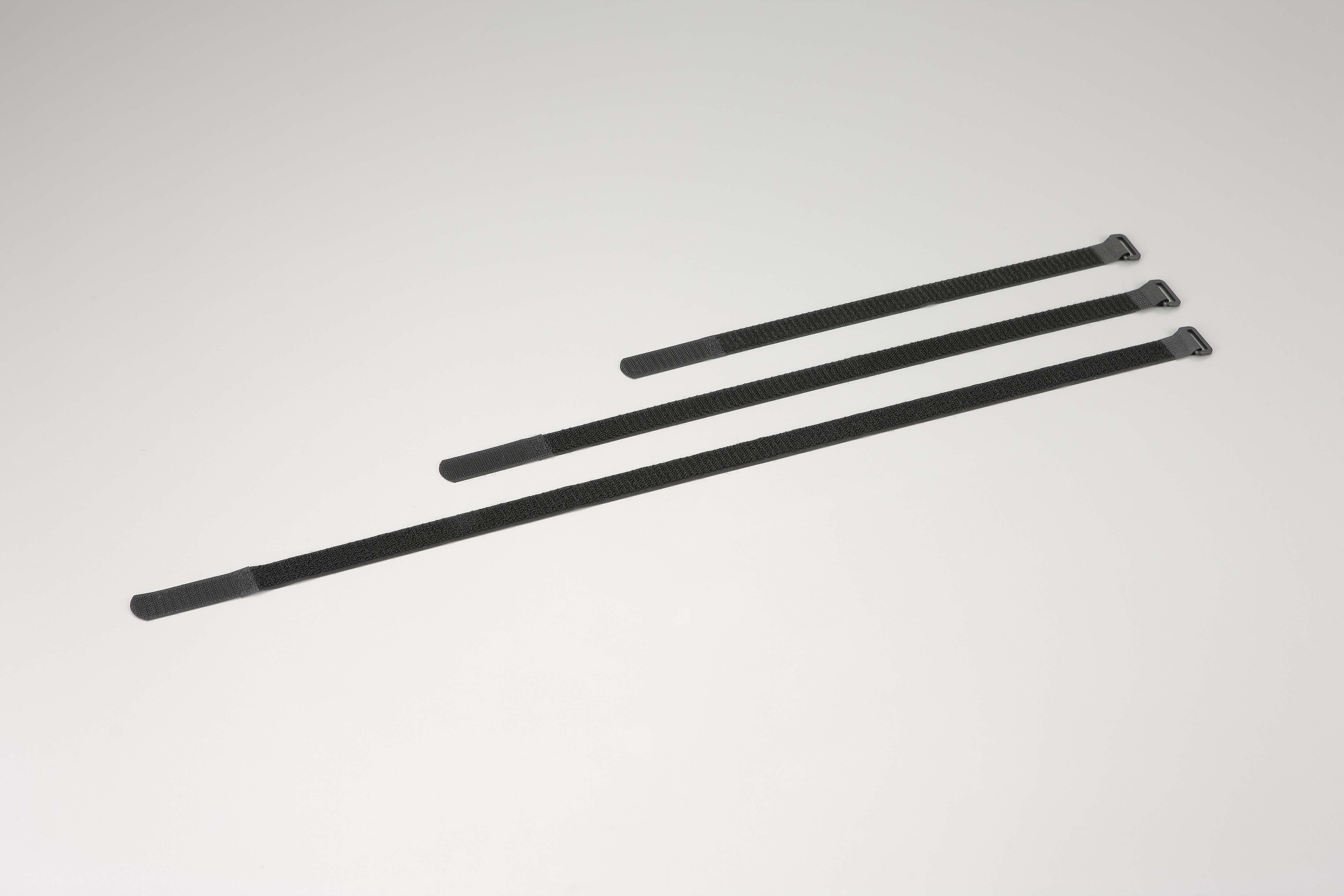

■ Fixing tie

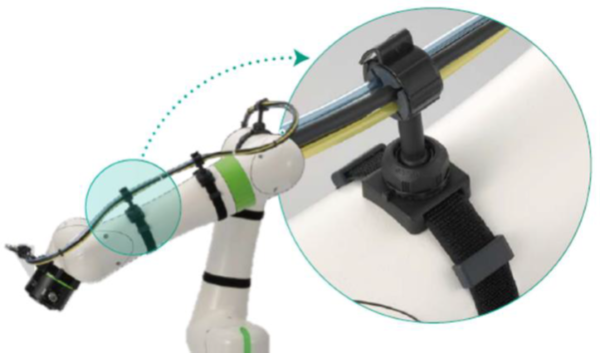

■ For Cable mount shape holders and Fixing bases

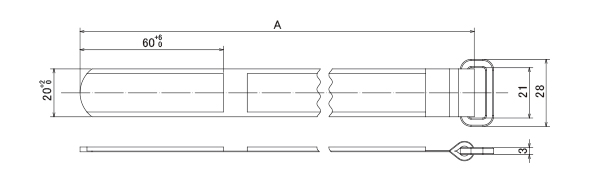

■ Dimensional drawing
| Model | A (mm) |
| BCH-20-370 | 350+15 |
| BCH-20-510 | 510+18 |
| BCH-20-710 | 710+22 |
■Model・Specification
| Model | Width (mm) |
Hook & loop fastener length (mm) |
Range of use(mm) | Working temperture |
Color | Weight | Q'ty /pack |
|
| Diameter | Circle | |||||||
| BCH-20-370 |
20 | 370 | Ø75-98 | 235-310 | -10 to +80℃ | Black | 4g | 5 pcs |
| BCH-20-510 | 510 | Ø98-143 | 305-450 | 5g | ||||
| BCH-20-710 | 710 | Ø129-207 | 405-650 | 6g | ||||
See more details → CH-TM for Robots
Launch day
Tuesday, December 3, 2024
For further details please contact us at info-cs@ohm.jp.
