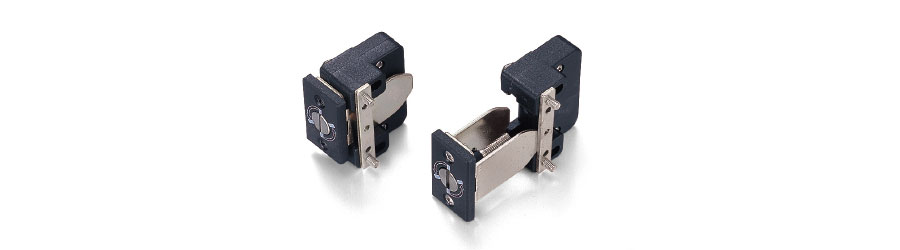

Panel lock DOORLOCK
Fast, easy to use, locking mechanism for opening and securing doors and lids on various service panels WITHOUT a KEY
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Application To secure doors and lids on electrical service panels, electrical distribution boxes, measurement equipment, joint boxes and many others
Example of use
Contents of page
Model/Specifications
| Model | Applicable Door/Lid weight | Applicable Door/Lid width | Opening and closing durability | Tensile strength | Weight | Q'ty per package | |
| For Coin use | DL-1 | 15kg or less | 250 - 1000mm |
5000 times | 490N （50kgf） |
86g | 1 pc. |
| For Flathead screwdriver use | DL-1Z | ||||||

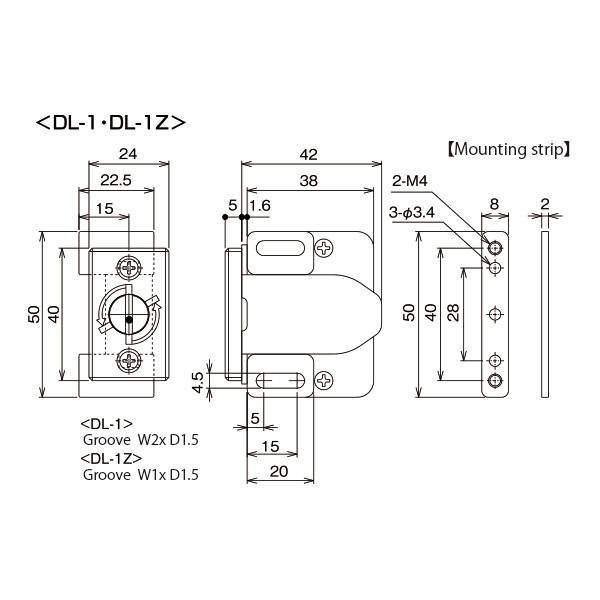

Dimensional drawing

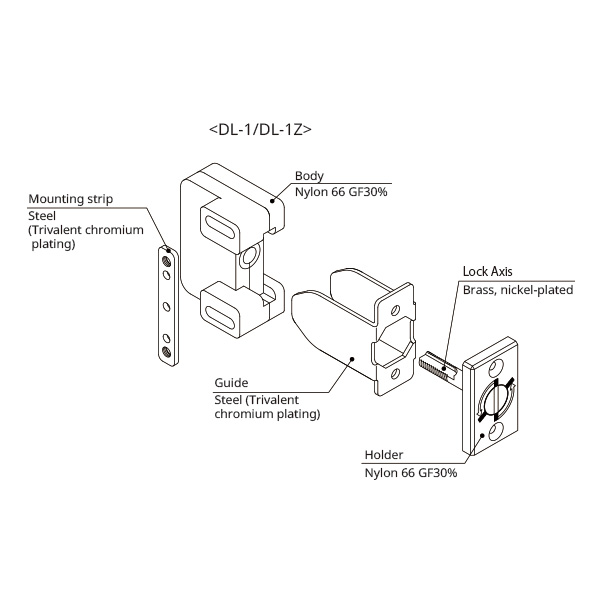

Materials
Instructions

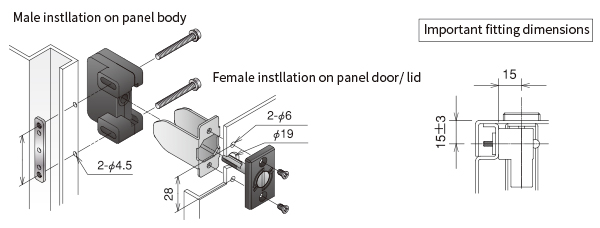

1. Attach DOORLOCK as illustrated above.
Use appropriate number of DOORLOCKs depending on the shape and weight of the door.
Cautions
・Do not paint.
・Do not use DOORLOCK as a preventive measure for sagging down of a door.
・To prevent deterioration, avoid using or storing this product under the following atmospheres.
・Do not use DOORLOCK as a preventive measure for sagging down of a door.
・To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
