Mounting base RESLOCK


Easy to install in positions where hole drilling and tapping are difficult

OL

Certificates/Approvals

EU RoHS2 China RoHS CE UL CSA PSE

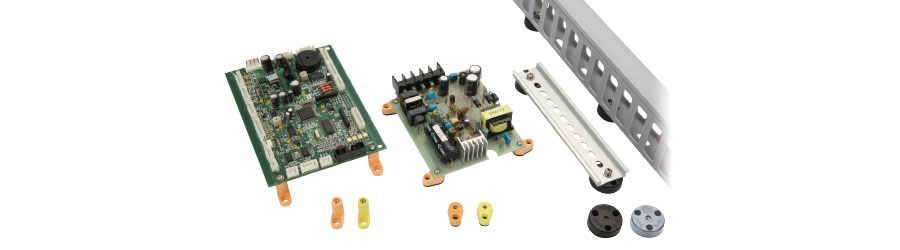

・Applications For electrical service panels, electrical control panels and a variety of other applications

Model/Specifications

Model Fitting method Thread for component mount Color Working temperature Weight Q'ty per package
OL-A3 by instant glue M3 Orange -20 to +70℃ 3g 100 pcs.
OL-A4 Yellow 3g
OL-B4 M4 Black 10g 30 pcs.
OL-B5 M5 Gray 10g
OL-E3 by screwing
with a M4 flat-head screw
M3 Orange 2g 500 pcs.
OL-E4 M4 Yellow 2g

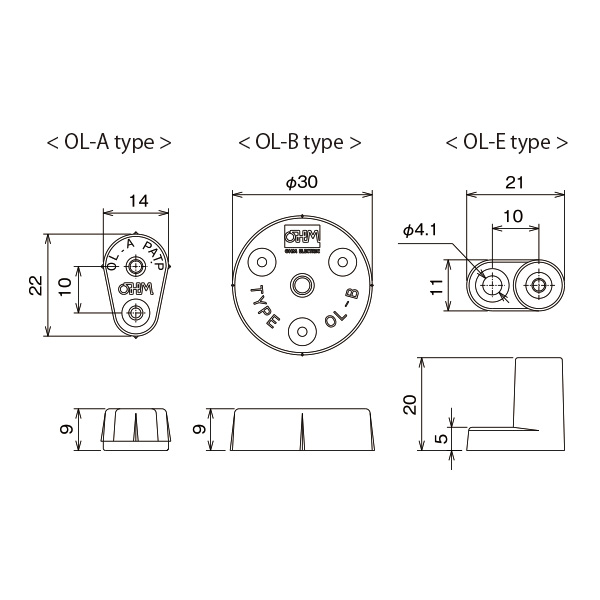

Dimensional drawing

外形寸法図

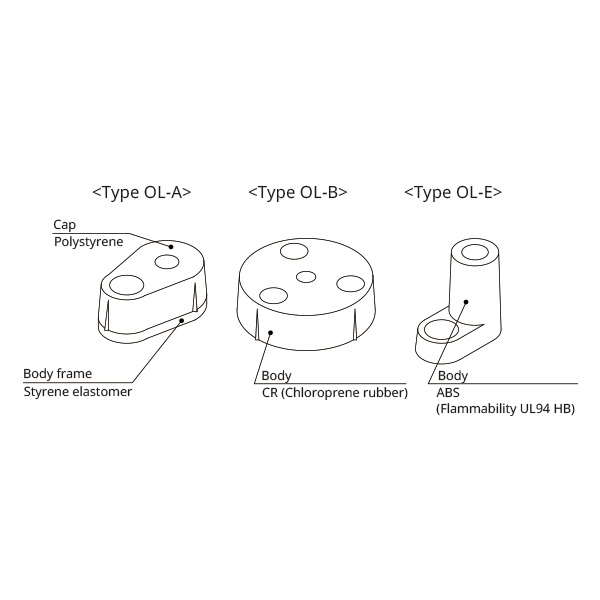

Materials

材質

Instructions

For type OL-A and OL-B

1. Clean the mounting surface area. No contamination on the surface (dust, oil rust) is allowed.
2. Install RESLOCK.

作業手順

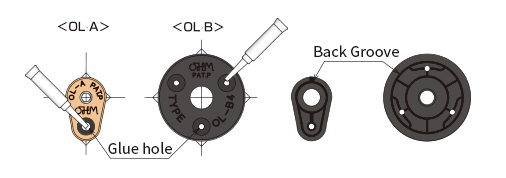

2-1) Place RESLOCK and adjust four molded tips referring to the position lines.
2-2) Drop or inject a drop of glue into glue hole(s).
  Only one drop (about 0.03 cc) per each glue hole is appropriate.
2-3) Press and hold RESLOCK as required by the glue manufacturer's instructions.

3. Install components.

作業手順

・Adhesives made out from polyethylene, polypropylene, inert resin and fluorine resin are not permissible to use.
・Low viscosity (2mPa・s) instantaneous chemical adhesive (such as Crazy Glue) is recommended.

For type OL-E

1. Install RESLOCK.

作業手順

This model is for screw fixing only.
Use a flat top screw of M4 size.

Cautions

・To prevent deterioration, avoid using or storing this product under the following atmospheres.
  1. Outside the range of working temperature
  2. Water vapor contained or high temperature/humidity air
  3. Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance")
For any other special environmental conditions, please contact us before use.
