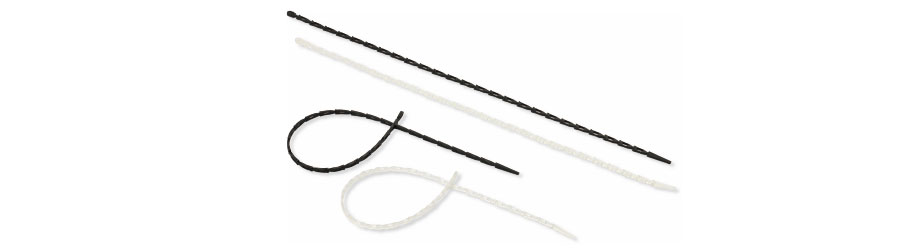

Cable tie OHM Band
Easy and fast! Super flexible material with uniquely designed patterns to allow tightening
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Application For bundling and tie wrapping of optical fiber, flexible hoses/tubes and cables
Example of use
Contents of page
Model/Specifications
| Model | Color | Working temperature | Weight | Q'ty per package | |
| OV-4 | Ø3 - 100mm | Translucent | -20 to +70℃ | 2g | 100 pcs. |
| OV-4BK | Black | ||||
* OV-4 is translucent but some may be pale yellow as they are made of natural materials. Please note that there is no problems in practical use.
Physical property
| Model | Tensile strength | Low temp. resistance | High temp. resistance | Waterproof | Oilproof * | Weatherproof | |
| Water-soluble | Water-insoluble | ||||||
| OV-4 | ○ | △ | ○ | △ | △ | × | △ |
| OV-4BK | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
○ : Good for use △ : Performance is affected by use environment × : Unsuitable for use
* There are some exceptions as oil resistance is affected by the additives included in oil.
* There are some exceptions as oil resistance is affected by the additives included in oil.

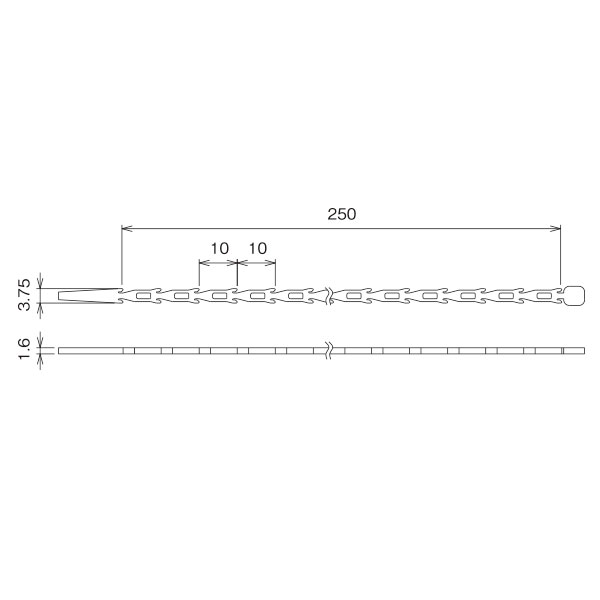

Dimensional drawing

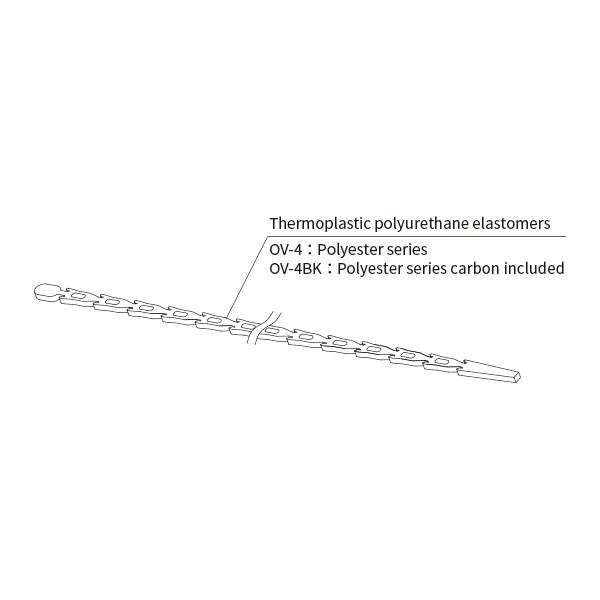

Materials
Instructions
1. Hold both sides of band and stretch it lightly before use.
2. Wrap OHM Band around cables and put the pointed tip through an opening of it.
3. Pull the band and hook it.
4. Cut the remaining portion of OHM Band with nippers. Use it for another location.
5. Finished.
Cautions
・To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
