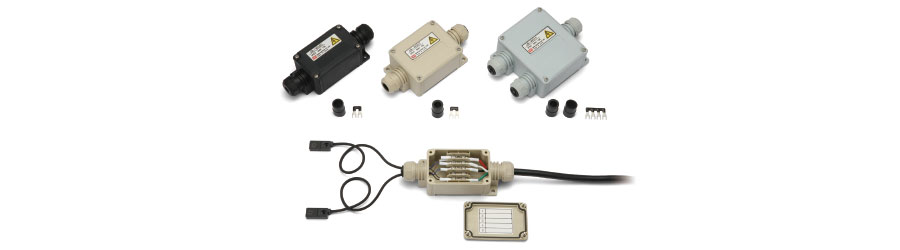

JB-W series CAPCON integrated, Standard
Features
Protection category | Color | Rated voltage | Rated current | Oilproof | Weatherproof | Number of terminals |
IP67 | Black/Light gray/Beige | 300V | 15A | ✓ | ✓ | 5P/7P/11P |
Approvals/Certificates
EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Model/Specification
Oilproof type Rubber bushing:Black
Model | Rated voltage | Nominal section area of cable | Number of terminals | Terminal screw | Weight (*1) |
Q'ty per package | ||
Black | Light gray | Beige | ||||||
JB-W305 | JB-W305C1 | JB-W305BJ | AC/DC 300V 15A |
1.25mm2 or less |
5P | M3×8 Free terminal screw |
100g | 1pc |
JB-W307 | JB-W307C1 | JB-W307BJ | 7P | 117g | ||||
JB-W311 | JB-W311C1 | JB-W311BJ | 11P | 170g |
Weatherproof type Rubber Bushing:Blue
Model | Rated voltage | Nominal section area of cable | Number of terminals | Terminal screw | Weight (*1) |
Q'ty per package | ||
Black | Light gray | Beige | ||||||
JB-W305E | - | JB-W305EBJ | AC/DC 300V 15A |
1.25mm2 or less |
5P | M3×8 Free terminal screw |
100g | 1pc |
JB-W307E | - | JB-W307EBJ | 7P | 117g | ||||
JB-W311E | - | JB-W311EBJ | 11P | 170g |
*1 Weight values are for Black color

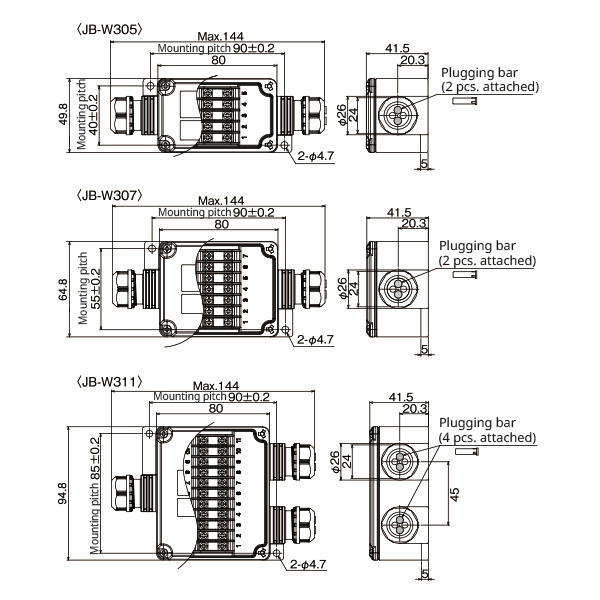

Applicable Cable Diameter/Accessories
JB-W305/JB-W305E
Model of Rubber bushing | Applicable cable diameter(mm) | Q'ty |
G13-09A/09AE | Ø6 to 9 | 1 |
G13-404/404E | Ø 3 to 4(4 holes) | 1 |
Model of Plugging bars | Specifications | Q'ty |
BB-40S | G13-404/404E |
2 |
Model of Rubber bushing | Applicable cable diameter(mm) | Q'ty |
G13-11/11E | Ø8.5 to 11.5 | 1 |
Model of Shorting bar | Specifications | Q'ty |
JB-SB152 | 2P | 1 |
JB-W307/JB-W307E
Model of Rubber bushing | Applicable cable diameter(mm) | Q'ty |
G13-11/11E | Ø8.5 to 11.5 | 1 |
G13-404/404E | Ø3 to 4(4 holes) | 1 |
Model of Plugging bars | Specifications | Q'ty |
BB-40S | G13-404/404E |
2 |
Model of Rubber bushing | Applicable cable diameter(mm) | Q'ty |
G13-09A/09AE | Ø6 to 9 | 1 |
Model of Shorting bar | Specification | Q'ty |
JB-SB152 | 2P | 1 |
JB-W311/JB-W311E
Model of Rubber bushing | Applicable cable diameter (mm) | Q'ty |
G13-11/11E | Ø8.5 to 11.5 | 1 |
G13-404/404E | Ø3 to 4(4 holes) | 2 |
Model of Plugging bar | Specification | Q'ty |
BB-40S | G13-404/404E |
4 |
Model of Rubber bushing | Applicable cable diameter(mm) | Q'ty |
G13-09A/09AE | Ø6 to 9 | 1 |
G13-13/13E | Ø11 to 13 | 1 |
Model of Shorting bar | Specification | Q'ty |
JB-SB154 | 4P | 1 |
Instructions
1.Insert cables from the openings on each end (through the CAPCON) and crimp the fork terminals.
【Caution】Make sure to use an insulated sleeve with the forked terminal to keep an appropriate insulation distance.Failure to this may lead to a short circuit.
2.Install the fork terminals in the JOIBOX terminal strip and tighten them with the screws provided.
【Caution】To avoid damage by heating, observe the following matters without fail.
・Make sure that the screws have been tightly secured.
・Avoid connections as shown in the examples shown.
3.Tighten the (CAPCON) dome nut to fasten the cables.
【G13-404(E)Rubber Bushing Instruction】
Insert the plugging bars into all unused holes. Place cables and plugging vars in a diagonal position when
2 cables are inserted as shown the above.
- Use only one cable for one hole.
- Tightening torque and tensile strength differ depending on the material of cable coating and its hardnesss.
- Tensile strength and waterproof performance drops when outer cable diameter changes due to aging.
- Product performance are not guaranteed for cables other than the applicable cable size or round cables.
Option
Cautions
*Do not use this product in oil or water.
*To prevent deterioration,avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance")
- For Oilproof type (Rubber color : black)
Do not expose to direct and continuous sunlight.
Suitable for oily environments.
*For non-oily places,use Weatherproof type. - Weatherproof Type (Rubber color : blue)
Avoid using in oily environments.
For non-oily indoor places,Weatherproof type is recommended.
Wiring precautions
*Avoid direct sunshine in outdoor use.
*To prevent entry of water dropping along the cable, pay attention to the following matters.
- Do not place the JOIBOX so as the cable entry is in an upward direction.
- When the cable is drawn from higher position, provide a water trap or a horizontal portion.
