JB-W series Large & multi-purpose


For multi purpose in large size, screw fastening type

JB-WL

Features

Protection category Color Oilproof/Weatherproof
IP67 Beige/Translucent brown

Certificates/Approvals

EU RoHS2 China RoHS CE UL CSA PSE

Model/Specification

Lid height Lid color Model Accessories Working temperature Weight Q'ty per package
LOW Beige JB-WL135BJ M4×8
tapping screw
(2 pcs)
-40 to +80℃ 447g 1 pc.
Translucent brown JB-WL135BJ-C -40 to +65℃ 415g
Beige JB-WL220BJ -40 to +80℃ 677g
Translucent brown JB-WL220BJ-C -40 to +65℃ 621g
HIGH Beige JB-WL135HBJ -40 to +80℃ 533g
Translucent brown JB-WL135HBJ-C -40 to +65℃ 478g
Beige JB-WL220HBJ -40 to +80℃ 800g
Translucent brown JB-WL220HBJ-C -40 to +65℃ 724g

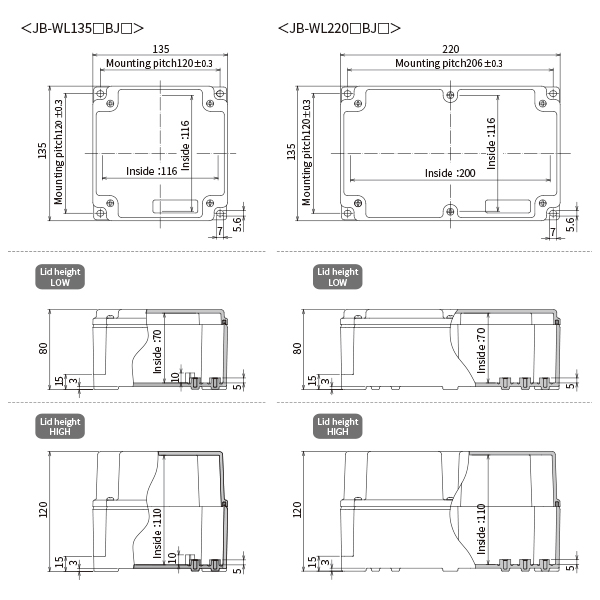

Dimensional drawing

外形寸法図

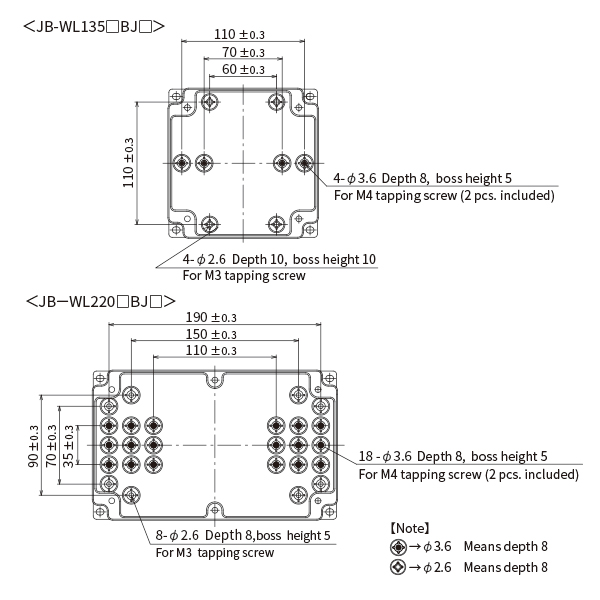

Dimensions of inner boss hole

内部ボス穴寸法図

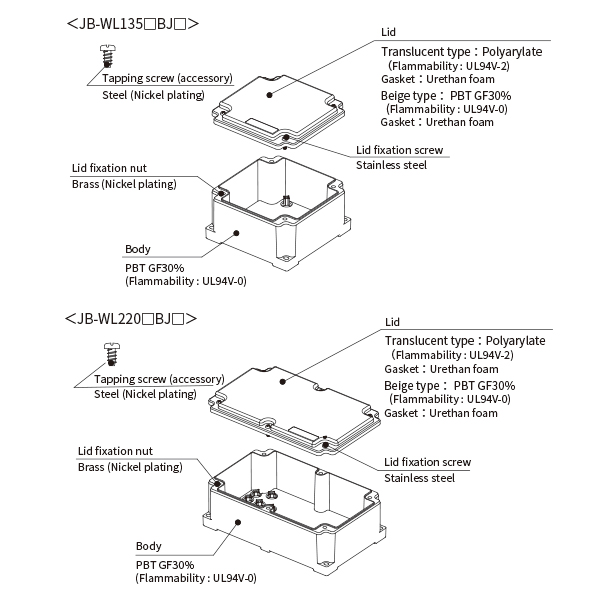

Materials

材質

Option

Black cap nut

ブラインドキャップ

Pressure adjustment plug

圧力調節プラグ

Cautions

*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
  1. Outside the range of working temperature
  2. Water vapor contained or high temperature/humidity air.
  3. Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance")
For any other special environmental conditions, please contact us before use.

Wiring precautions

Please pay attention to the following matters in wiring work.

*Avoid direct sunshine in outdoor use.
*To prevent entry of water dropping along the cable, pay attention to the following matters.
  1. Do not place the JOIBOX so as the cable entry is in an upward direction.
  2. When the cable is drawn from higher position, provide a water trap or a horizontal portion.

ジョイボックスシリーズ施工時の注意
