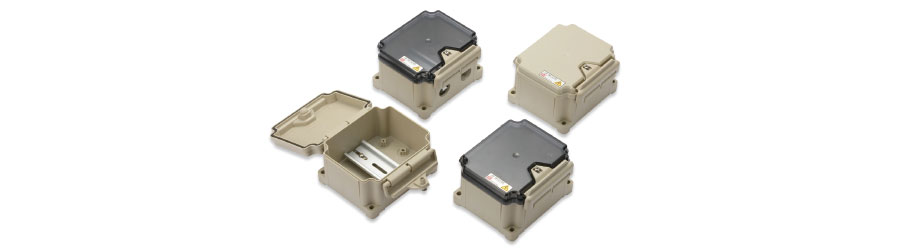

JB-W series Large & multi-purpose with hinged lid JB-WLQ100
Offers increased efficiency for multi purpose large junction boxes.
Opening and closing is done just by one screw.
Opening and closing is done just by one screw.

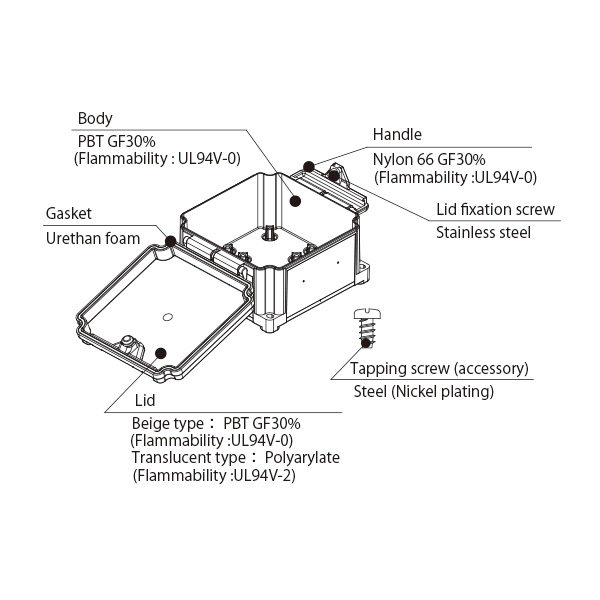

Features
Protection category | Color | Oilproof/Weatherproof |
IP67 | Beige/Translucent brown | ✓ |
Certificates/Approvals
EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Model/Specification
Models without holes

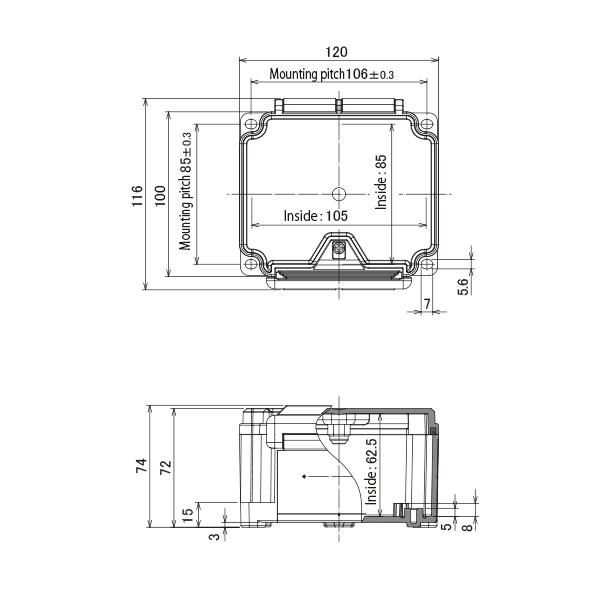

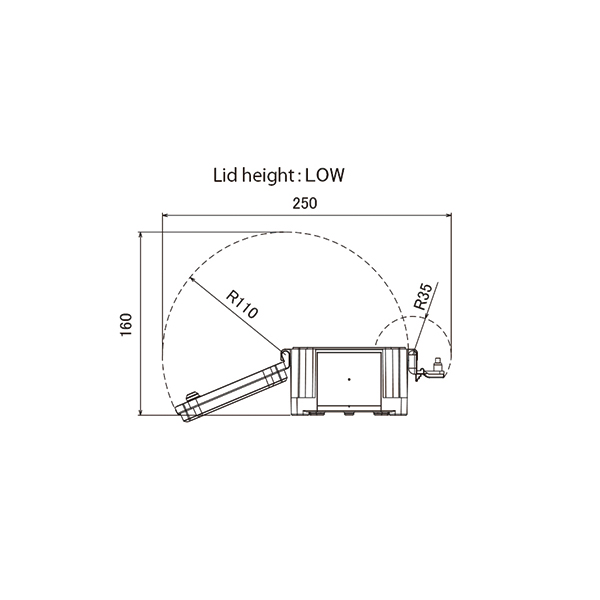

Lid height | Type | Lid color | Model | Weight | Q'ty per package |
LOW | Free (*1) |
Beige | JB-WLQ100BJ | 300g | 1 pc. |
Translucent brown | JB-WLQ100BJ-C | 280g | |||

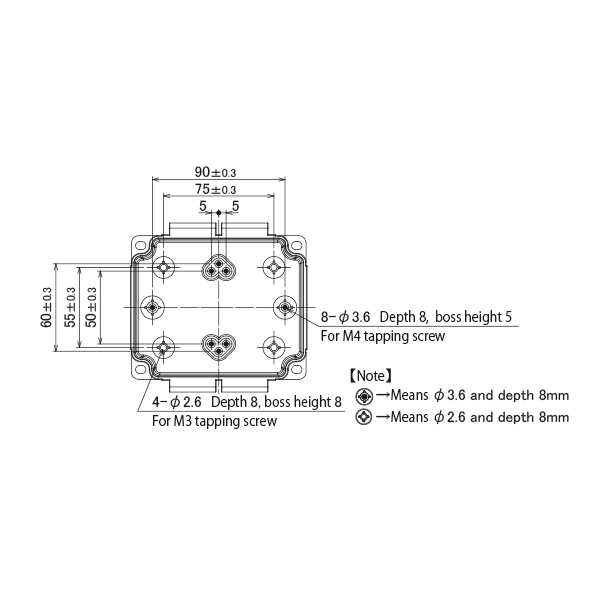

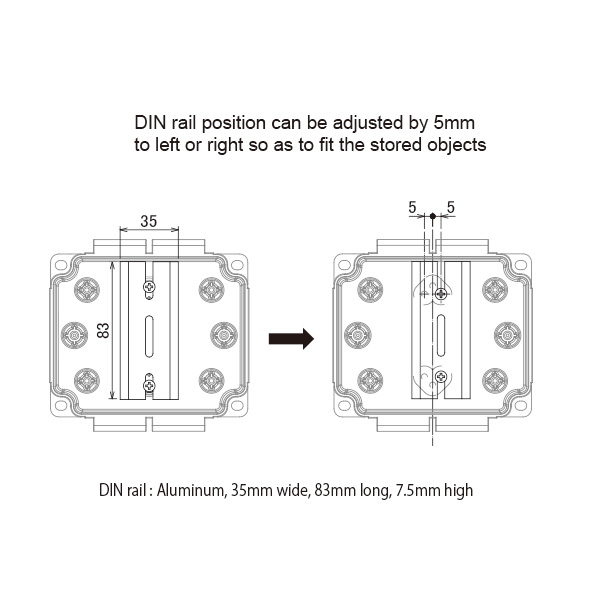

Provided with DIN rail |
Beige | JB-WLQ100BJ-D | 310g | ||
Translucent brown | JB-WLQ100BJ-C-D | 290g |

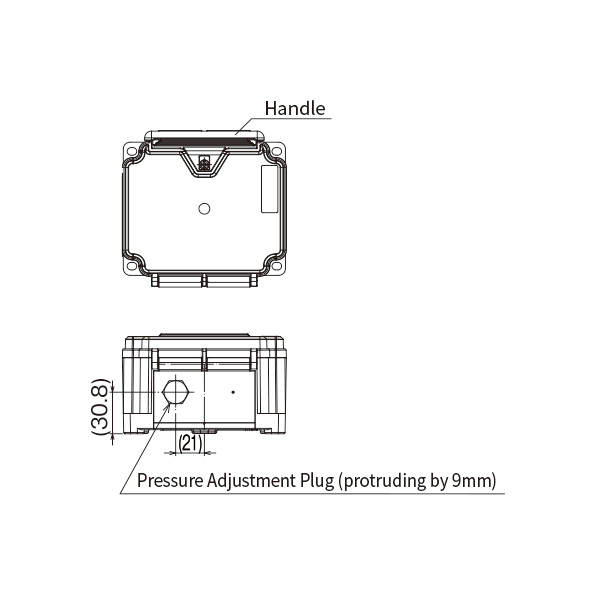

Models without holes,with P.A. plug *Oilproof only
Lid height | Type | Lid color | Model | Weight | Q'ty per package |
LOW | Free (*1) |
Beige | JB-WLQ100BJ-V | 300g | 1 pc. |
Translucent brown | JB-WLQ100BJ-C-V | 280g | |||
Provided with DIN rail |
Beige | JB-WLQ100BJ-D-V | 310g | ||
Translucent brown | JB-WLQ100BJ-C-D-V | 290g |
Working temperature Lid color Beige:-40 to +80℃、Lid color Translucent:-40 to +65℃
*1 M4×8 tapping screws(2pcs) are included as an accessory.
*1 M4×8 tapping screws(2pcs) are included as an accessory.

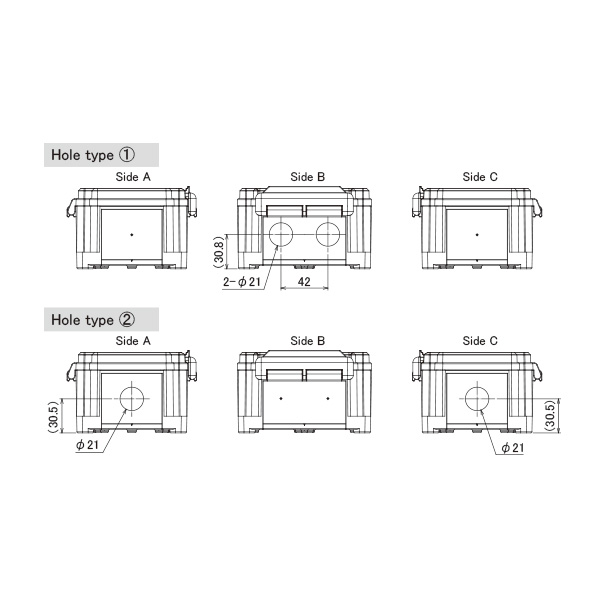

Model with holes
Lid height | Type | Lid color | Model | Weight | Q'ty per package | Type of hole processing | Hole positions | ||
A | B | C | |||||||
LOW | Free (*1) |
Beige | JB-WLQ100BJ-01 | 290g | 1 pc. | ① | - | Ø21×2 | - |
Translucent brown | JB-WLQ100BJ-C-01 | 270g | |||||||
Beige | JB-WLQ100BJ-02 | 290g | ② | Ø21×1 | - | Ø21×1 | |||
Translucent brown | JB-WLQ100BJ-C-02 | 270g | |||||||
Provided with DIN rail |
Beige | JB-WLQ100BJ-D01 | 300g | ① | - | Ø21×2 | - | ||
Translucent brown | JB-WLQ100BJ-C-D01 | 280g | |||||||
Beige | JB-WLQ100BJ-D02 | 300g | ② | Ø21×1 | - | Ø21×1 | |||
Tanslucent brown | JB-WLQ100BJ-C-D02 | 280g |
Models with holes, with P.A. plug *Oilproof only
Lid height | Type | Lid color | Model | Weight | Q'ty per package | Type of hole processing | Hole position | ||
A | B | C | |||||||
LOW | Free (*1) |
Beige | JB-WLQ100BJ-V01 | 290g | 1 pc. | ① | - | Ø21×2 | - |
Translucent brown | JB-WLQ100BJ-C-V01 | 270g | |||||||
Beige | JB-WLQ100BJ-V02 | 290g | ② | Ø21×1 | - | Ø21×1 | |||
Translucent brown | JB-WLQ100BJ-C-V02 | 270g | |||||||
DIN レール付 |
Beige | JB-WLQ100BJ-DV01 | 300g | ① | - | Ø21×2 | - | ||
Translucent brown | JB-WLQ100BJ-C-DV01 | 280g | |||||||
Beige | JB-WLQ100BJ-DV02 | 300g | ② | Ø21×1 | - | Ø21×1 | |||
Translucent brown | JB-WLQ100BJ-C-DV02 | 280g |
Working temperature Lid color Beige:-40 to +80℃、Lid color Translucent brown:-40 to +65℃
*1 M4×8 tapping screws(2pcs) are included as an accessory.
*1 M4×8 tapping screws(2pcs) are included as an accessory.

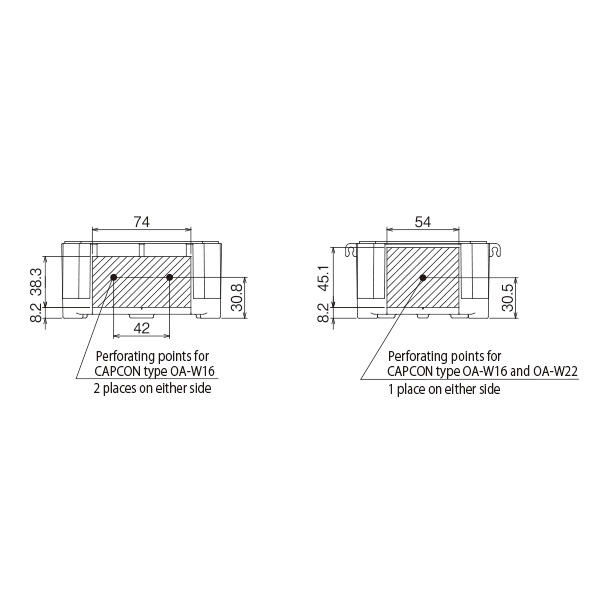

【Effective mounting area】
・The perforating points for our Cable gland CAPCON are marked before shipment.
・When parts are mounted some part other than the marked places, pay attention for protrusion of those parts from the shaded area.
・Effective mounting area is easily identifiable by the difference in level on the surface.
・The perforating points for our Cable gland CAPCON are marked before shipment.
・When parts are mounted some part other than the marked places, pay attention for protrusion of those parts from the shaded area.
・Effective mounting area is easily identifiable by the difference in level on the surface.
Option
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*Putting excessive force of 30N or more on an open lid may break the lid.
*Do not use this product in oil or water.
*Putting excessive force of 30N or more on an open lid may break the lid.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance")
Wiring precautions
Please pay attention to the following matters in wiring work.
*Avoid direct sunshine in outdoor use.
*To prevent entry of water dropping along the cable, pay attention to the following matters.
*Avoid direct sunshine in outdoor use.
*To prevent entry of water dropping along the cable, pay attention to the following matters.
- Do not place the JOIBOX so as the cable entry is in an upward direction.
- When the cable is drawn from higher position, provide a water trap or a horizontal portion.
