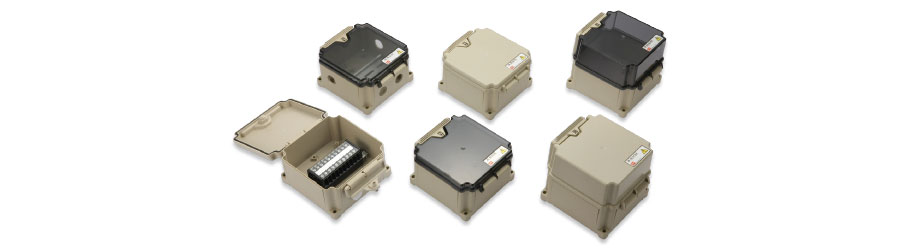

JB-W series Large & multi-purpose with hinged lid JB-WLQ135
Offers increased efficiency for multi purpose large junction boxes.
Opening and closing is done just by one screw.
Opening and closing is done just by one screw.
Features
| Protection category | Color | Oilproof/Weatherproof |
| IP67 | Beige/Translucent brown | ✓ |
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
Contents of page
Model/Specification
Models without holes
| Lid height | Type | Lid color | Model | Weight | Q'ty oer package |
| LOW | Free （*1） |
Beige | JB-WLQ135BJ | 390g | 1 pc. |
| Translucent brown | JB-WLQ135BJ-C | 370g | |||
| Provided with DIN rail |
Beige | JB-WLQ135BJ-D | 410g | ||
| Translucent brown | JB-WLQ135BJ-C-D | 390g | |||
| Provided with terminal block (10P) |
Beige | JB-WLQ135BJ-T | 525g | ||
| Translucent brown | JB-WLQ135BJ-C-T | 505g | |||
| HIGH | Free （*1） |
Beige | JB-WLQ135HBJ | 510g | |
| Tramslucent brown | JB-WLQ135HBJ-C | 460g | |||
| Provided with DIN rail |
Beige | JB-WLQ135HBJ-D | 530g | ||
| Translucent brown | JB-WLQ135HBJ-C-D | 480g |
Models with P.A. plug, without holes *Oilproof only
| Lid height | Type | Lid color | Model | Weight | Q'ty per package |
| LOW | Free （*1） |
Beige | JB-WLQ135BJ-V | 390g | 1 pc. |
| Translucent | JB-WLQ135BJ-C-V | 370g | |||
| Provided with DIN rail | Beige | JB-WLQ135BJ-DV | 410g | ||
| Tramslucent brown | JB-WLQ135BJ-C-DV | 390g | |||
| Provided with terminal block(10P) | Beige | JB-WLQ135BJ-TV | 525g | ||
| Tramslucent brown | JB-WLQ135BJ-C-TV | 505g | |||
| HIGH | Free （*1） |
Beige | JB-WLQ135HBJ-V | 510g | |
| Tramslucent brwon | JB-WLQ135HBJ-C-V | 460g | |||
| Provided with DIN rail | Beige | JB-WLQ135HBJ-DV | 530g | ||
| Tramslucent brown | JB-WLQ135HBJ-C-DV | 480g |
Working temperature Lid color Beige：-40 to +80℃、Lid color Translucent brown：-40 to +65℃
*1 M4×8 tapping screws(2pcs) are included as an accessory.
*1 M4×8 tapping screws(2pcs) are included as an accessory.
Models with holes
| Lid height | Type | Lid color | Model | Weight | Q'ty per package | Hole positions | ||
| A | B | C | ||||||
| LOW | Free （*1） |
Beige | JB-WLQ135BJ-01 | 380g | 1 pc. | Ø21×1 | Ø21×2 | Ø21×1 |
| Translucent brown | JB-WLQ135BJ-C-01 | 360g | ||||||
| Provided with DIN rail |
Beige | JB-WLQ135BJ-D01 | 400g | |||||
| Translucent brown | JB-WLQ135BJ-C-D01 | 380g | ||||||
| Provided with terminal block(10P) |
Beige | JB-WLQ135BJ-T01 | 515g | |||||
| Tramslucent brown | JB-WLQ135BJ-C-T01 | 495g | ||||||
| HIGH | Free （*1） |
Beige | JB-WLQ135HBJ-01 | 500g | ||||
| Translucent brown | JB-WLQ135HBJ-C-01 | 450g | ||||||
| Provided with DIN rail |
Beige | JB-WLQ135HBJ-D01 | 520g | |||||
| Translucent brown | JB-WLQ135HBJ-C-D01 | 470g | ||||||
Models with holes, with P.A. plug *Oilproof only
| Lid height | Type | Lid color | Model | Weight | Q'ty per package | Hole positions | ||
| A | B | C | ||||||
| LOW | Free （*1） |
Beige | JB-WLQ135BJ-V01 | 380g | 1 pc. | Ø21×1 | Ø21×2 | Ø21×1 |
| Translucent brown | JB-WLQ135BJ-C-V01 | 360g | ||||||
| Provided with DIN rail |
Beige | JB-WLQ135BJ-DV01 | 400g | |||||
| Translucent brown | JB-WLQ135BJ-C-DV01 | 380g | ||||||
| Provided with terminal board (10P) |
Beige | JB-WLQ135BJ-TV01 | 515g | |||||
| Translucent brown | JB-WLQ135BJ-C-TV01 | 495g | ||||||
| HIGH | Free （*1） |
Beige | JB-WLQ135HBJ-V01 | 500g | ||||
| Translucent brown | JB-WLQ135HBJ-C-V01 | 450g | ||||||
| Provided with DIN rail |
Beige | JB-WLQ135HBJ-DV01 | 520g | |||||
| Trarnslucent brown | JB-WLQ135HBJ-C-DV01 | 470g | ||||||
Working temperature Lid color Beige：-40 to +80℃、Lid color Translucent brown：-40 to +65℃
*1 M4×8 tapping screws(2pcs) are included as an accessory.
*1 M4×8 tapping screws(2pcs) are included as an accessory.

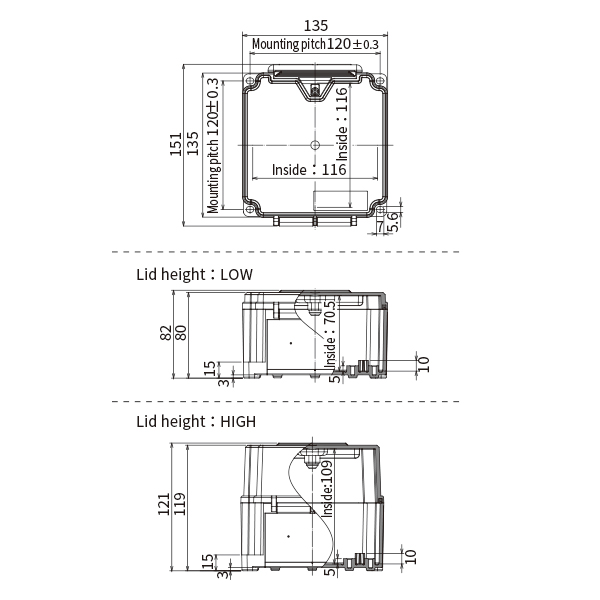

Dimensional drawing

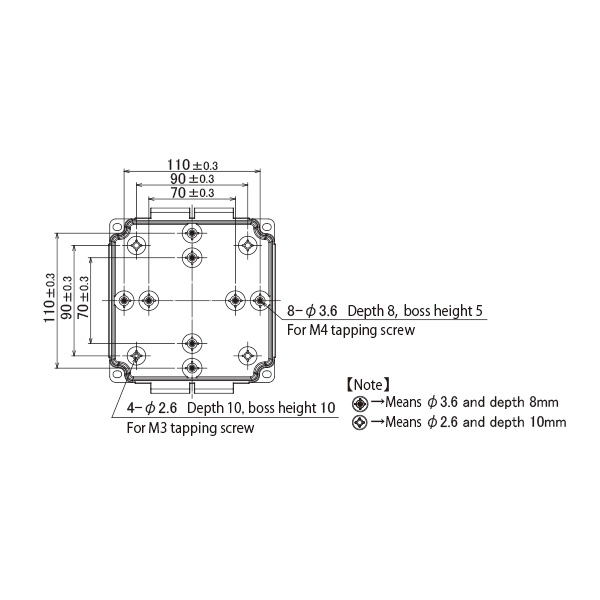

Dimensional drawing of inner boss holes

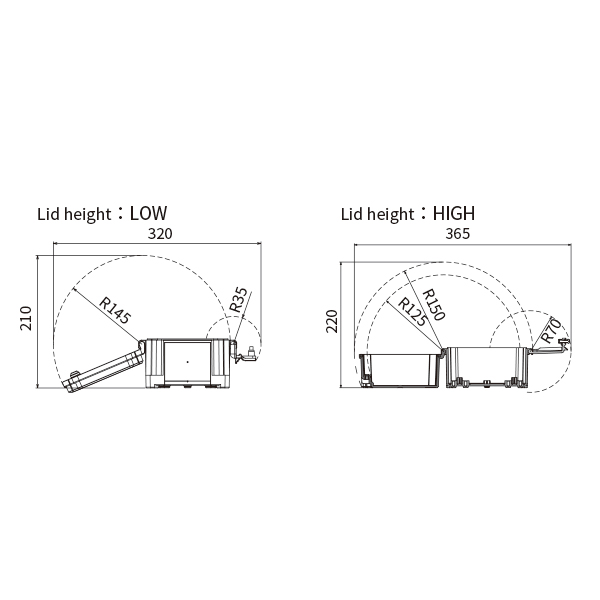

Motion range of Lid
Hole positions (For models with holes)
View of DIN rail mounting

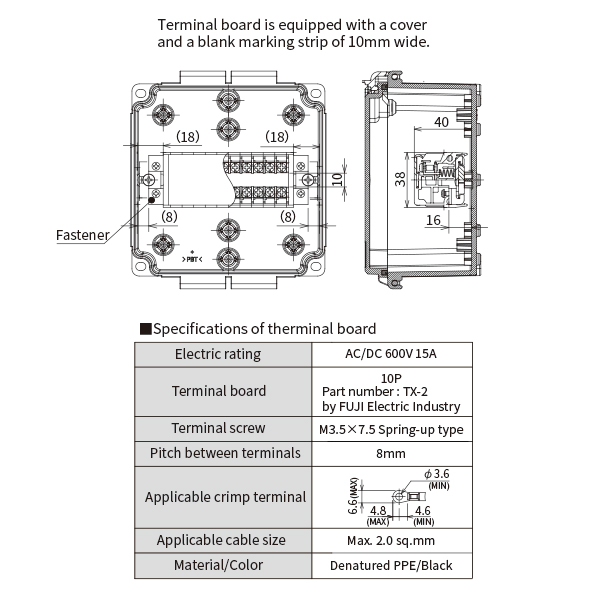

Terminal board layout

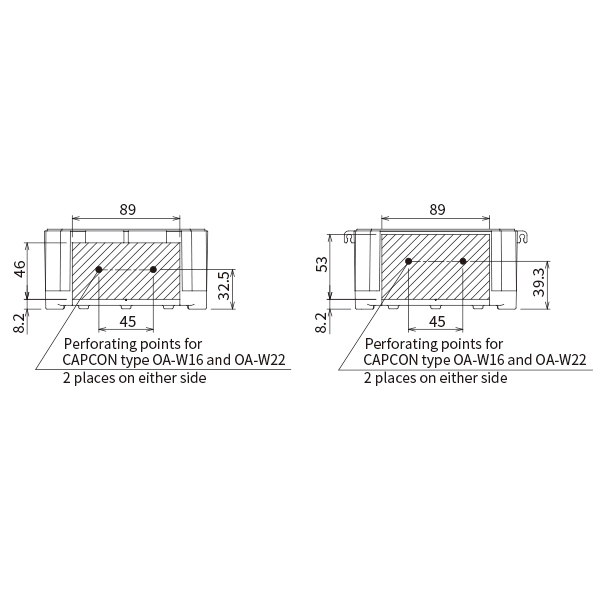

Effective mounting area (shaded area)
Pressure adjustment plug mounting area
【Effective mounting area】
・The perforating points for our Cable gland CAPCON are marked before shipment.
・When parts are mounted some part other than the marked places, pay attention for protrusion of those parts from the shaded area.
・Effective mounting area is easily identifiable by the difference in level on the surface.
・The perforating points for our Cable gland CAPCON are marked before shipment.
・When parts are mounted some part other than the marked places, pay attention for protrusion of those parts from the shaded area.
・Effective mounting area is easily identifiable by the difference in level on the surface.

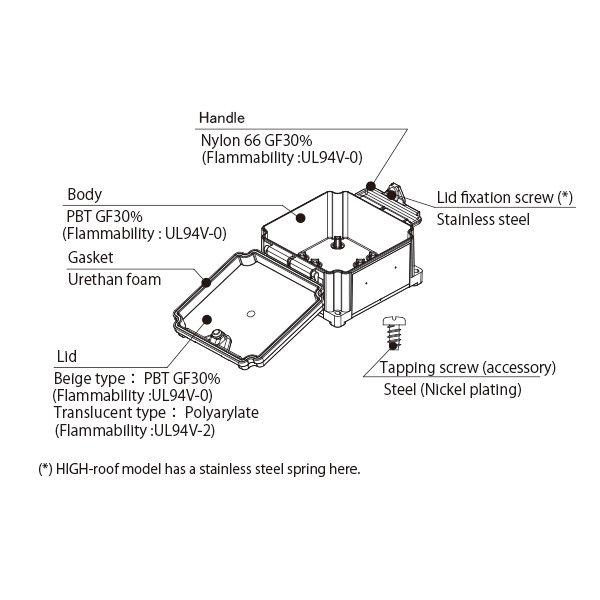

Materials
Option
Blank cap nut
Mounting base
Pressure adjustment plug
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*Putting excessive force of 30N or more on an open lid may break the lid.
*Do not use this product in oil or water.
*Putting excessive force of 30N or more on an open lid may break the lid.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working temperature
- Water vapor contained or high temperature/humidity air.
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
Wiring precautions
Please pay attention to the following matters in wiring work.
*Avoid direct sunshine in outdoor use.
*To prevent entry of water dropping along the cable, pay attention to the following matters.
*Avoid direct sunshine in outdoor use.
*To prevent entry of water dropping along the cable, pay attention to the following matters.
- Do not place the JOIBOX so as the cable entry is in an upward direction.
- When the cable is drawn from higher position, provide a water trap or a horizontal portion.
