OA-1 series for small valves
For cable exits of DIN（Pg11）standard small valves
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications For cable exits of DIN standard (Pg11) electromagnetic valves
Contents of page
Model/Specifications
| Model | Applicable cable diameter (mm) | Threads | Working temperature | Weight | Q'ty per package | ||
| 1st groove | 2nd groove | 3rd groove | |||||
| OA-SD | Ø4 - 5 | Ø6 - 8 | Ø8 - 10 | Pg11 | -25 to +70℃ | 10g | 50 pcs. |
・Lock nut is not included in this part.

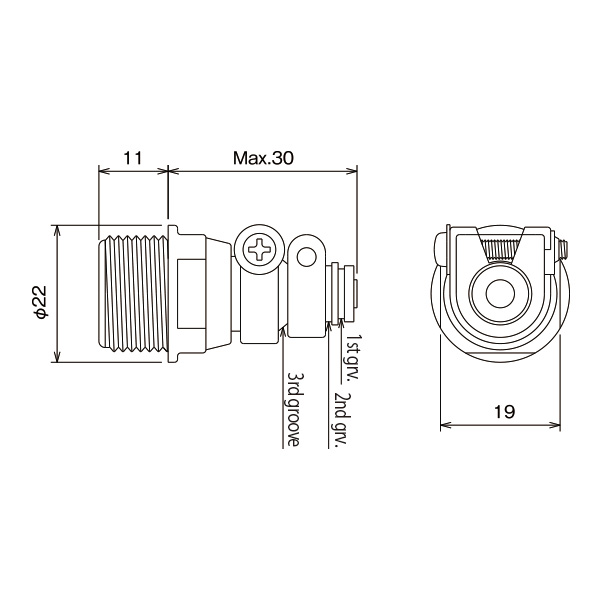

Dimensional drawing

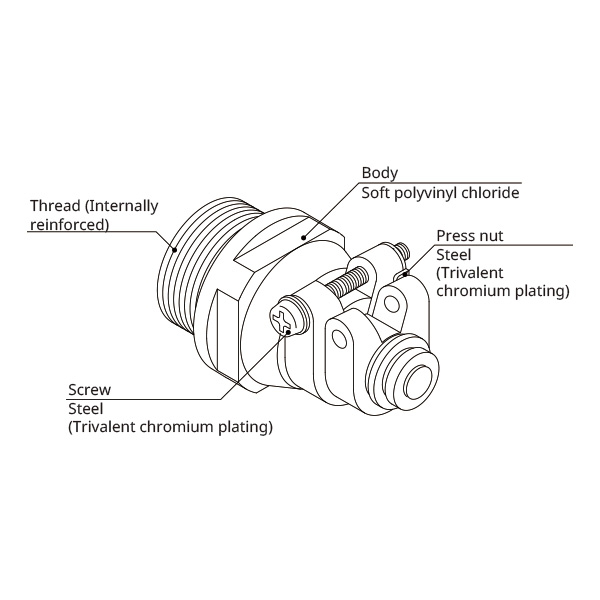

Materials
Cabtyre cable outer diameters
Instructions
1. Cut the CAPCON so as to get the desired diameter. Set the screw on top.
2. Install the CAPCON to a DIN valve.
3. Put the cable through.
4. Tighten the screw to fasten cable securely.
- Use only one cable for one hole.
- Tightening torque and tensile strength differ depending on the material of cable coating and its hardness.
- Tensile strength drops when outer cable diameter changes due to aging.
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
