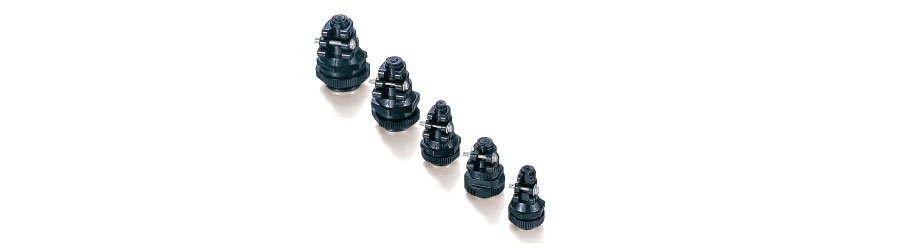

OA-1 series Standard
Long selling Cable gland! Accepts wide-ranging cable sizes.
Certificates/Approvals
EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications For cable exits of various electric distribution equipment including control panels, relay boxes, limit switches and motors.
Contents of page

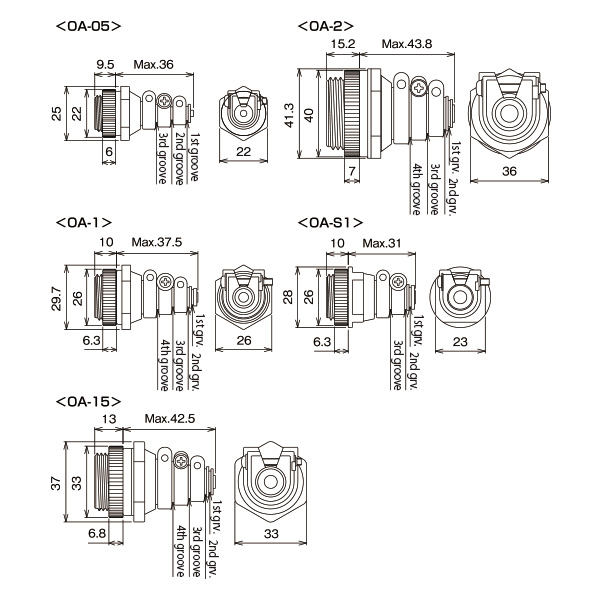

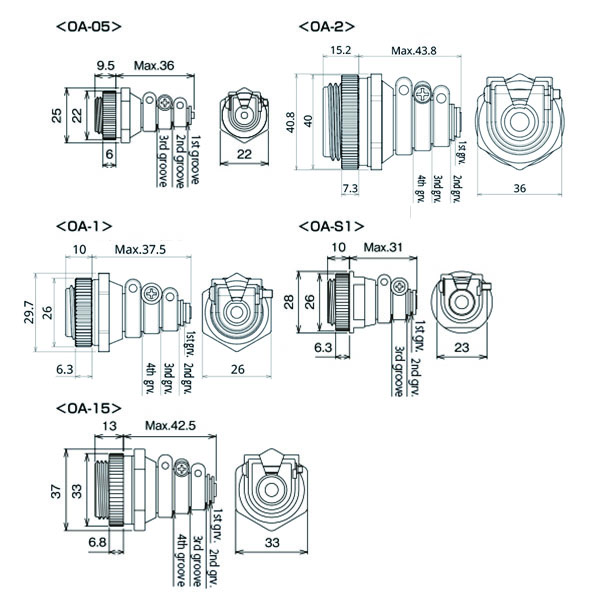

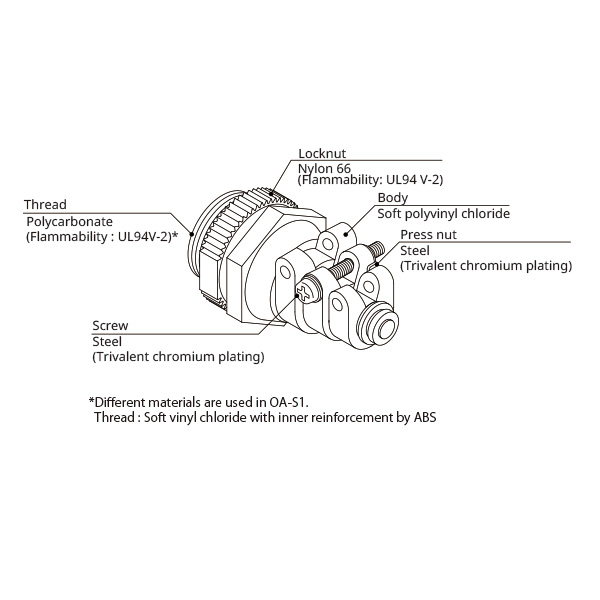

Model/Specifications
Model | Applicable cable diameter(mm) | Entry hole diameter (mm) |
Threads | Mounting plate thickness | Weight | Q'ty per package | |||
1st groove | 2nd groove | 3rd groove | 4th groove | ||||||
OA-05 | Ø3.5 - 4.5 | Ø4 - 6 | Ø6 - 8 | - | Ø17 | G3/8(PF3/8) | 3 mm or less | 11g | 50 pcs. |
OA-1 | Ø4 - 5.5 | Ø5.5 - 8 | Ø8 - 10 | Ø10 - 12 | Ø21 | CTG16(G1/2) | 4 mm or less | 14g | 20 pcs. |
OA-15 | Ø6 - 7 | Ø7 - 11 | Ø11 - 14 | Ø14 - 16 | Ø28 | CTG22(G3/4) | 6 mm or less | 27g | 10 pcs. |
OA-2 | Ø9 - 11 | Ø11 - 14 | Ø14 - 17 | Ø17 - 19 | Ø33.5 | CTG28(G1) | 7.5 mm or less | 38g | 5 pcs. |
OA-S1 *1 | Ø6 - 8 | Ø8 - 10 | Ø10 - 12 | - | Ø21 | CTG16(G1/2) | 4 mm or less | 14g | 20 pcs. |
*1 Low-cost version.
Common : Working temperature -25 to 70℃
Common : Working temperature -25 to 70℃
Cabtyre cable outer diameters
Instructions
1. Cut the CAPCON so as to get the desired diameter.
2. Set the screw on top.
3. Install the CAPCON and put the cable through.
4. Tighten the clamp screw to fix the cable.
- Use only one cable for one hole.
- Tightening torque and tensile strength differ depending on the material of cable coating and its hardness.
- Tensile strength drops when outer cable diameter changes due to aging.
Option
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*This product is not waterproof. Use OA-W series where waterproofing is required.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
*This product is not waterproof. Use OA-W series where waterproofing is required.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance")
