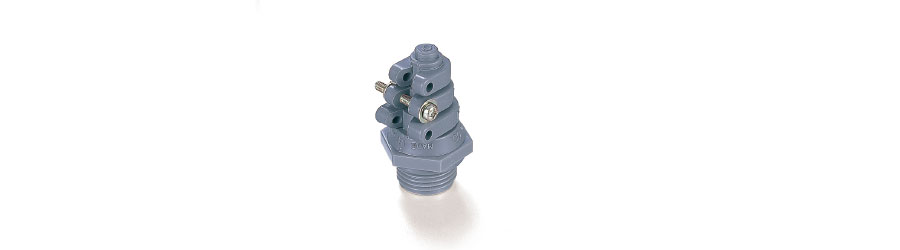

OA-1 series for thin steel conduit


For thin steel CTC19 threaded conduit end and exits of switch boxes for thin steel

キャプコンOA-1シリーズ 薄鋼電線管用

Certificates/Approvals

EU RoHS2 China RoHS CE UL CSA PSE
・Applications By using with couplings, this product provides secure clamping to cable exits from thin steel conduit.
For cable exits of outlet boxes, switch boxes, etc.

Model/Specifications

Model Applicable cable diameter (mm) Threads Working temperature Weight Q'ty per package
1st groove 2nd groove 3rd groove 4th groove
OA-1 USU Ø4 - 5.5 Ø5.5 - 8 Ø8 - 0 Ø10 - 12 CTC19 -25 to +70℃ 12g 20 pcs.
・Locknut is not included. Use a CTC19 threaded nut for thin steel conduit if necessary.

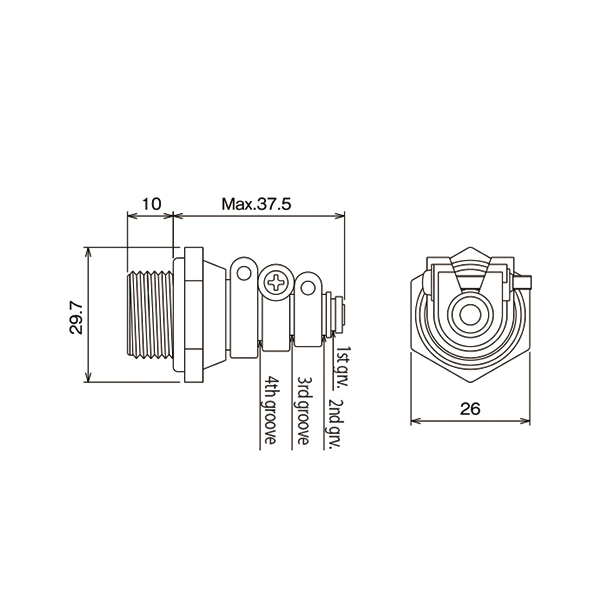

Dimensional drawing

外形寸法図

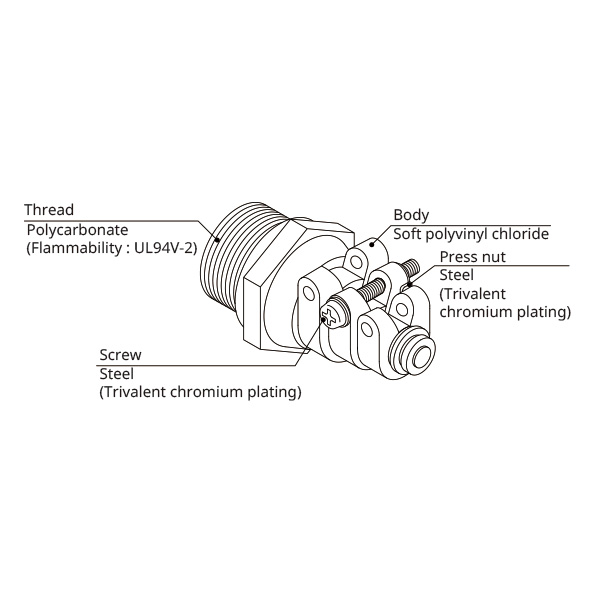

Materials

材質

Cabtyre cable outer diameters

Instructions

使用する電線径に合わせてキャプコンをカットする。締付ねじは先端の位置にセットする。

1. Cut the CAPCON so as to get the desired diameter. Set the screw on top.

電線管にキャプコンを取付ける。

2. Install CAPCON to the conduit.

電線を通す。

3. Put the cable through.

締付ねじを締め電線を固定する。

4. Tighten the screw to fix the cable.

  • Use only one cable for one hole.
  • Tightening torque and tensile strength differ depending on the material of cable coating and its hardness.
  • Tensile strength drops when outer cable diameter changes due to aging.

Cautions

*Do not step foot or put load on the product. Do not paint the product.
*This product is not waterproof. Use OA-W series where waterproofing is required.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
  1. Outside the range of working humidity and temperature
  2. Water vapor contained or high temperature/humidity air
  3. Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance")
For any other special environmental conditions, please contact us before use.
