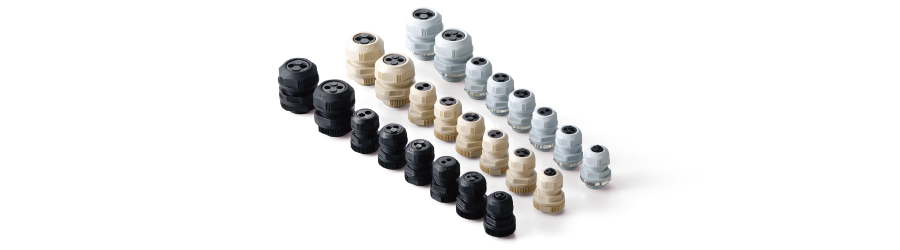

OA-W Multiple type
2 to 4 cables are clamped all at once. Saves both labor and space!
Features
Protection category | Color | Oilproof | Weatherproof |
IP67 | Black/Light gray/Beige | ✓ | ✓ |
Certificates/Approvals
EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications For clamping and protecting sensor wires or other multiple number of cables
Contents of page

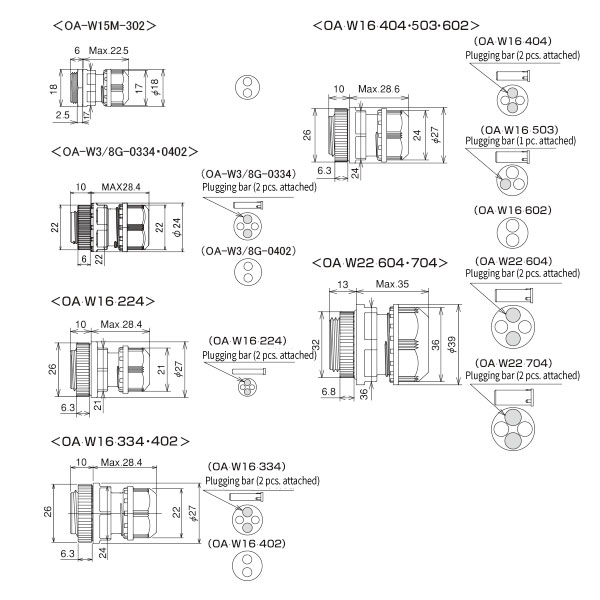

Model/Specifications

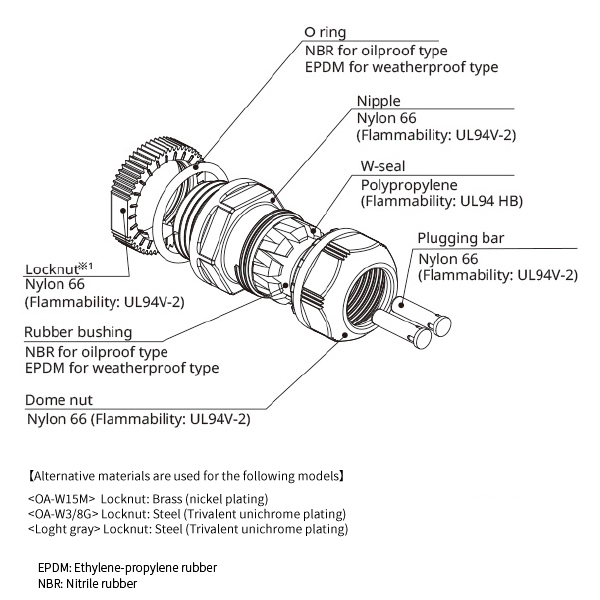

Oilproof type Rubber bushing : Black O-ring : Black
Model | Applicable cable dia. (mm) |
Number of holes | Entry hole dia. (mm) |
Thread | Max. plate thickness | Weight* | Q'ty per package |
||
Black | Light gray | Beige | |||||||
OA-W15M-302 | OA-W15M-302C1 | OA-W15M-302B | Ø2.4 - 3 | 2 | Ø15 | M15P=1 | 3 mm | 7g | 20 pcs. |
OA-W3/8G-0334 | OA-W3/8G-0334C1 | OA-W3/8G-0334B | Ø.2.2 - 3.3 | 4 | Ø17 | G3/8 | 4mm | 12g | |
OA-W3/8G-0402 | OA-W3/8G-0402C1 | OA-W3/8G-0402B | Ø3 - 4 | 2 | 12g | ||||
OA-W16-224 | OA-W16-224C1 | OA-W16-224B | Ø1.7 - 2.2 | 4 | Ø21 | CTG16 (G1/2) |
4 mm | 13g | |
OA-W16-334 | OA-W16-334C1 | OA-W16-334B | Ø2.2 - 3.3 | 14g | |||||
OA-W16-402 | OA-W16-402C1 | OA-W16-402B | Ø3 - 4 | 2 | 14g | ||||
OA-W16-404 | OA-W16-404C1 | OA-W16-404B | 4 | 15g | |||||
OA-W16-503 | OA-W16-503C1 | OA-W16-503B | Ø4 - 5 | 3 | 14g | ||||
OA-W16-602 | OA-W16-602C1 | OA-W16-602B | Ø5 - 6 | 2 | 14g | ||||
OA-W22-604 | OA-W22-604C1 | OA-W22-604B | Ø5 - 6 | 4 | Ø28 | CTG22 (G3/4) |
6 mm | 36g | 10 pcs. |
OA-W22-704 | OA-W22-704C1 | OA-W22-704B | Ø6 - 7 | 35g |
Weatherproof type Rubber bushing : Blue O-ring : Blue
Model | Applicable cable dia. (mm) |
Number of holes | Entry hole dia. (mm) | Thread | Max. plate thickness | Weight* | Q'ty per package | ||
Black | Light gray | Beige | |||||||
OA-W15M-302E | OA-W15M-302EC1 | OA-W15M-302EB | Ø2.4 - 3 | 2 | Ø15 | M15P=1 | 3 mm | 7g | 20 pcs. |
OA-W3/8G-0334E | OA-W3/8G-0334EC1 | OA-W3/8G-0334EB | Ø.2.2 - 3.3 | 4 | Ø17 | G3/8 | 4mm | 12g | |
OA-W3/8G-0402E | OA-W3/8G-0402EC1 | OA-W3/8G-0402EB | Ø3 - 4 | 2 | 12g | ||||
OA-W16-224E | OA-W16-224EC1 | OA-W16-224EB | Ø1.7 - 2.2 | 4 | Ø21 | CTG16 (G1/2) |
4 mm | 13g | |
OA-W16-334E | OA-W16-334EC1 | OA-W16-334EB | Ø2.2 - 3.3 | 14g | |||||
OA-W16-402E | OA-W16-402EC1 | OA-W16-402EB | Ø3 - 4 | 2 | 14g | ||||
OA-W16-404E | OA-W16-404EC1 | OA-W16-404EB | 4 | 15g | |||||
OA-W16-503E | OA-W16-503EC1 | OA-W16-503EB | Ø4 - 5 | 3 | 14g | ||||
OA-W16-602E | OA-W16-602EC1 | OA-W16-602EB | Ø5 - 6 | 2 | 14g | ||||
OA-W22-604E | OA-W22-604EC1 | OA-W22-604EB | Ø5 - 6 | 4 | Ø28 | CTG22 (G3/4) |
6 mm | 36g | 10 pcs. |
OA-W22-704E | OA-W22-704EC1 | OA-W22-704EB | Ø6 - 7 | 35g |
Common : Working temperature -25 to +80℃ * Weight values are for Black color.
Cabtyre cable outer diameters
Instructions
1. Attach the cable gland CAPCON.
2. Insert the cables.
3. Tighten the Dome Nut to clamp the cable securely.
4. Make sure that the cables are properly secured.
Fitting to tapped holes of limit switches and the like
When mounting on female thread, remove the locknut and mount a CAPCON on smooth surface without twisting the O-ring.
When mounting on female thread, remove the locknut and mount a CAPCON on smooth surface without twisting the O-ring.
- Use only one cable for one hole.
- Tightening torque and tensile strength differ depending on the material of cable coating and its hardness.
- Tensile strength and waterproof performance drops when outer cable diameter changes due to aging.
- Product performance are not guaranteed for cables other than the applicable size or round cables.
- For proper torque management of the locknut and the dome nut , fix the nipple with a wrench and tighten the Dome nut.
Option
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance")
- For Oilproof Type (Rubber color : black)
Do not expose to direct and continuous sunlight.
Suitable for oily environments.
*For non-oily places, use Weatherproof type. - For Weatherproof Type (Rubber color : blue)
Avoid using in oily environments.
For non-oily indoor places, Weatherproof type is recommended.
