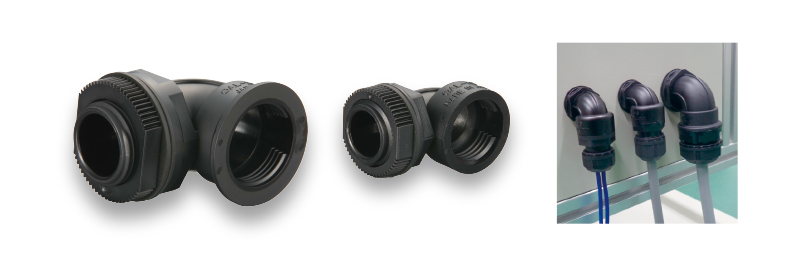

OAL Elbow Service Branch
For right angle bend of cables at a cable exit.
Applicable to variety of wiring patterns in combination with a cable gland
Applicable to variety of wiring patterns in combination with a cable gland
Features
| Protection category | Color | Oilproof | Number of holes |
| IP67* | Black | ✓ | 1 |
Remark(*): On condition of being used with a liquidtight cable gland
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications For routing wiring at a right angle using with a cable gland of CTG16 or CTG22 thread
Contents of page
Model/Specifications
Oilproof type
| Model | Entry hole diameter（mm） | Threads | Mounting plate thickness | Working temperature | Weight* | Q'ty per package |
| OAL-16 | Ø21 | CTG16（G1/2） | 4 mm or less | -25 to +80℃ | 13g | 20 pcs. |
| OAL-22 | Ø28 | CTG22（G3/4） | 6 mm or less | 33g | 10 pcs. |

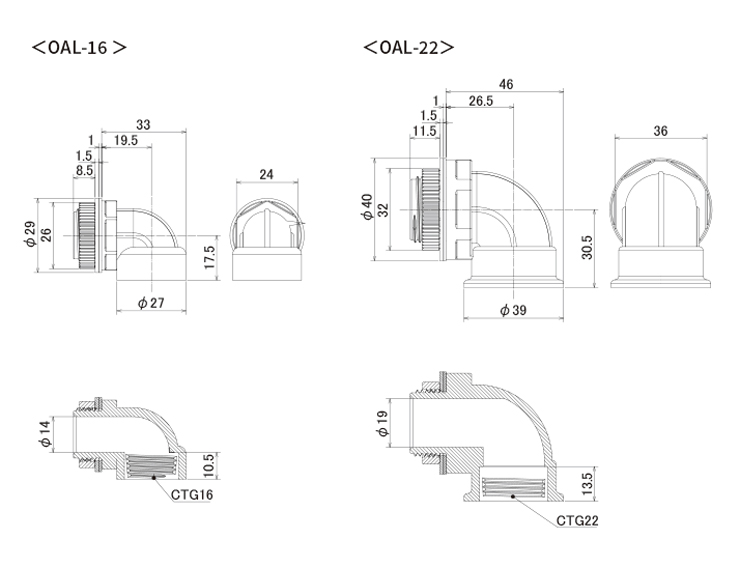

Dimensional drawing

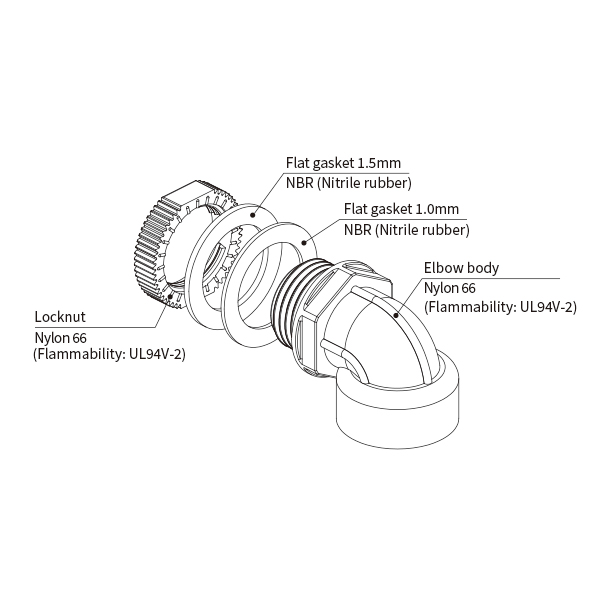

Materials
Cabtyre cable outer diameters
Instructions
1. Attach the cable gland CAPCON. When the lock nut is used, remove the 1.5mm flat packing.
2. Insert the cable.
3.Screw a CAPCON (OA-1, etc.) in the OAL firmly. Then tighten the Dome nut of the CAPCON to fix.
4. Make sure that the cable is properly secured.
For pre-threaded holes on Limit Switches etc.
Remove the locknut and screw the CAPCON into the threaded hole to fix.
Orientation
Supply includes 2 packings of 1.0 mm and 1.5 mm thickness. Use either one or both as required for orientation.
Remove the locknut and screw the CAPCON into the threaded hole to fix.
Orientation
Supply includes 2 packings of 1.0 mm and 1.5 mm thickness. Use either one or both as required for orientation.
Option
Locknut
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
