OA-W Slit type
Slit rubber bushing enables clamping connector cables at entry/exit ports
Features
Protection category | Color | Adaptability | Number of holes |
IP67 | Black/Light gray/Beige | Oilproof/Weatherproof | 1 to 4 |
Certificates/Approvals
EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications
【W3/8G・W16・W22type】For LAN, optical and sensor cables, multiple or other end-processed cables
【W28type】 For CVD and CVT cables
【W3/8G・W16・W22type】For LAN, optical and sensor cables, multiple or other end-processed cables
【W28type】 For CVD and CVT cables

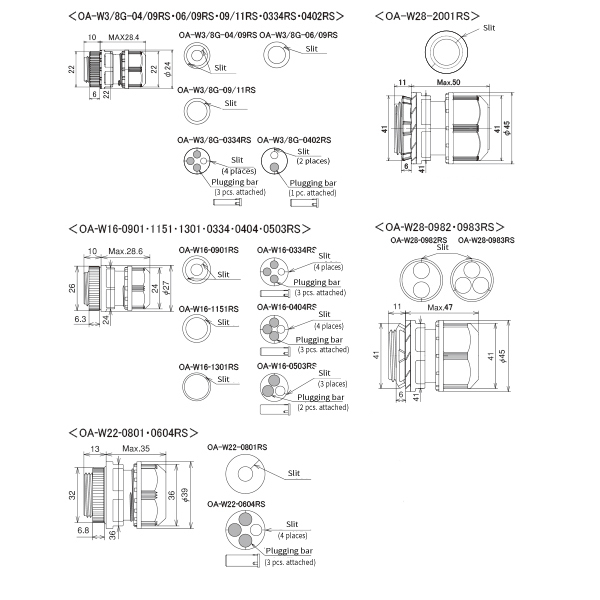

Model/Specifications
Oilproof type Rubber bushing : Black O-ring : Black
Model | Max. connector size | Applicable cable dia. (mm) |
Number of holes |
Entry hole dia. (mm) |
Thread | Max. plate thickness | Weight* | Q'ty per package | ||
Black | Light gray | Beige | ||||||||
OA-W3/8G-04/09RS | OA-W3/8G-04/09RSC1 | OA-W3/8G-04/09RSB | Ø11 | Ø4 - 9① | 1 | Ø17 | G3/8 | 4mm | 12g | 20 pcs. |
OA-W3/8G-06/09RS | OA-W3/8G-06/09RSC1 | OA-W3/8G-06/09RSB | Ø6 - 9 | 11g | ||||||
OA-W3/8G-09/11RS | OA-W3/8G-09/11RSC1 | OA-W3/8G-09/11RSB | Ø9 - 11 | 10g | ||||||
OA-W3/8G-0334RS | OA-W3/8G-0334RSC1 | OA-W3/8G-0334RSB | Ø2.2 - 3.3 | 4 | 12g | |||||
OA-W3/8G-0402RS | OA-W3/8G-0402RSC1 | OA-W3/8G-0402RSB | Ø3 - 4 | 2 | 12g | |||||
OA-W16-0901RS | OA-W16-0901RSC1 | OA-W16-0901RSB | Ø14 | Ø4 - 9① | 1 | Ø21 | CTG16 (G1/2) |
4 mm | 14g | |
OA-W16-1151RS | OA-W16-1151RSC1 | OA-W16-1151RSB | Ø8.5 - 11.5 | 12g | ||||||
OA-W16-1301RS | OA-W16-1301RSC1 | OA-W16-1301RSB | Ø11 - 13 | 11g | ||||||
OA-W16-0334RS | OA-W16-0334RSC1 | OA-W16-0334RSB | Ø2.2 - 3.3 | 4 | 14g | |||||
OA-W16-0404RS | OA-W16-0404RSC1 | OA-W16-0404RSB | Ø3 - 4 | |||||||
OA-W16-0503RS | OA-W16-0503RSC1 | OA-W16-0503RSB | Ø4 - 5 | 3 | ||||||
OA-W22-0801RS | OA-W22-0801RSC1 | OA-W22-0801RSB | Ø19 | Ø5 - 8 | 1 | Ø28 | CTG22 (G3/4) |
6 mm | 35g | 10 pcs. |
OA-W22-0604RS | OA-W22-0604RSC1 | OA-W22-0604RSB | Ø5 - 6 | 4 | 36g | |||||
OA-W28-2001RS | OA-W28-2001RSC1 | OA-W28-2001RSB | Ø23 | Ø13 - 20② | 1 | Ø34 | CTG28 (G1) |
5.5 mm | 71g | |
OA-W28-0982RS | OA-W28-0982RSC1 | OA-W28-0982RSB | Ø9.8 | 2 | 65g | |||||
OA-W28-0983RS | OA-W28-0983RSC1 | OA-W28-0983RSB | 3 | 68g |
Weatherproof type Rubber bushing : Blue O-ring : Blue
Model | Max. connector size | Applicable cable dia. (mm) |
Number of holes |
Entry hole dia. (mm) |
Thread | Max. plate thickness | Weight* | Q'ty per package | ||
Black | Light gray | Beige | ||||||||
OA-W3/8G-04/09RSE | OA-W3/8G-04/09RSEC1 | OA-W3/8G-04/09RSEB | Ø11 | Ø4 - 9① | 1 | Ø17 | G3/8 | 4mm | 12g | 20 pcs. |
OA-W3/8G-06/09RSE | OA-W3/8G-06/09RSEC1 | OA-W3/8G-06/09RESB | Ø6 - 9 | 11g | ||||||
OA-W3/8G-09/11RSE | OA-W3/8G-09/11RSEC1 | OA-W3/8G-09/11RSEB | Ø9 - 11 | 10g | ||||||
OA-W3/8G-0334RSE | OA-W3/8G-0334RSEC1 | OA-W3/8G-0334RSEB | Ø2.2 - 3.3 | 4 | 12g | |||||
OA-W3/8G-0402RSE | OA-W3/8G-0402RSEC1 | OA-W3/8G-0402RSEB | Ø3 - 4 | 2 | 12g | |||||
OA-W16-0901RSE | OA-W16-0901RSEC1 | OA-W16-0901RSEB | Ø14 | Ø4 - 9① | 1 | Ø21 | CTG16 (G1/2) |
4 mm | 14g | |
OA-W16-1151RSE | OA-W16-1151RSEC1 | OA-W16-1151RSEB | Ø8.5 - 11.5 | 12g | ||||||
OA-W16-1301RSE | OA-W16-1301RSEC1 | OA-W16-1301RSEB | Ø11 - 13 | 11g | ||||||
OA-W16-0334RSE | OA-W16-0334RSEC1 | OA-W16-0334RSEB | Ø2.2 - 3.3 | 4 | 14g | |||||
OA-W16-0404RSE | OA-W16-0404RSEC1 | OA-W16-0404RSEB | Ø3 - 4 | |||||||
OA-W16-0503RSE | OA-W16-0503RSEC1 | OA-W16-0503RSEB | Ø4 - 5 | 3 | ||||||
OA-W22-0801RSE | OA-W22-0801RSEC1 | OA-W22-0801RSEB | Ø19 | Ø5 - 8 | 1 | Ø28 | CTG22 (G3/4) |
6 mm | 35g | 10 pcs. |
OA-W22-0604RSE | OA-W22-0604RSEC1 | OA-W22-0604RSEB | Ø5 - 6 | 4 | 36g | |||||
OA-W28-2001RSE | OA-W28-2001RSEC1 | OA-W28-2001RSEB | Ø23 | Ø13 - 20② | 1 | Ø34 | CTG28 (G1) |
5.5 mm | 71g | |
OA-W28-0982RSE | OA-W28-0982RSEC1 | OA-W28-0982RSEB | Ø9.8 | 2 | 65g | |||||
OA-W28-0983RSE | OA-W28-0983RSEC1 | OA-W28-0983RSEB | 3 | 68g |
Common : Working temperature -25 to +80℃ * Weight values are for Black color.
*Rubber bushing color for Weatherproof OA-W36 models is black.
*Rubber bushing color for Weatherproof OA-W36 models is black.
Note : The applicable cable sizes marked with ① and ② change by combination of the rubber bushings.
①Applicable cable diameter(mm) | ②Applicable cable diameter(mm) | |
Rubber bushing A+B | Ø4 - 6 | Ø13 - 16 |
Rubber bushing only | Ø6 - 9 | Ø16 - 20 |
Cabtyre cable outer diameters

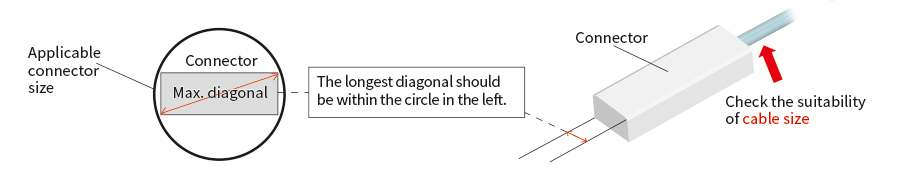

How to check suitability of connector and cable size for CAPCON
For detail dimensions, see "Max. connector size" and "Applicable cable diameter" in the Specifications table above.
Instructions
- Process the mounting surface for making a hole or cut threads.
- Attach the cable gland CAPCON to it.

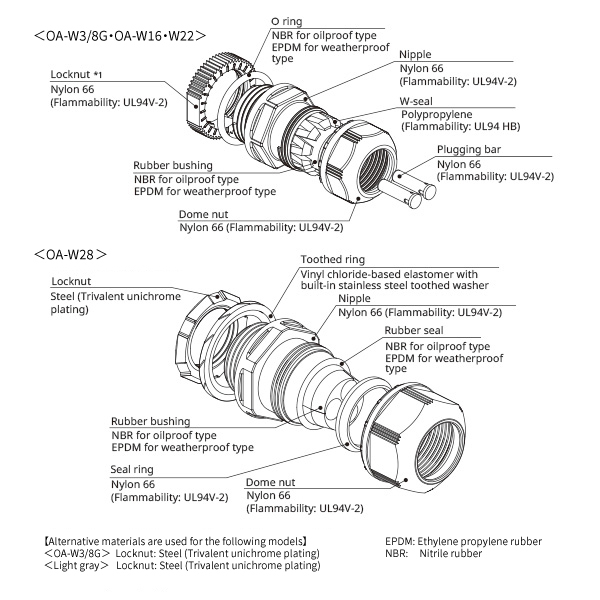

3. Remove the Dome nut, W-seal and Rubber bushing.
4. Run a connector cable through in order of the Dome nut, W-seal and Nipple.
5. Open the slit of Rubber bushing to let the cable in and then fit the W-seal.
6. Tighten the Dome nut to fasten cable securely
- Use only one cable for one hole.
- Tightening torque and tensile strength differ depending on the material of cable coating and its hardness.
- Tensile strength and waterproof performance drops when outer cable diameter changes due to aging.
- Product performance are not guaranteed for cables other than the applicable size or round cables.
- For proper torque management of the locknut and the dome nut , fix the nipple with a wrench and tighten the Dome nut.
Option
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance")
- For Oilproof Type (Rubber color : black)
Do not expose to direct and continuous sunlight.
Suitable for oily environments.
*For non-oily places, use Weatherproof type. - For Weatherproof Type (Rubber color : blue)
Avoid using in oily environments.
For non-oily indoor places, Weatherproof type is recommended.
