Mounting base CC Holder - Center hole type

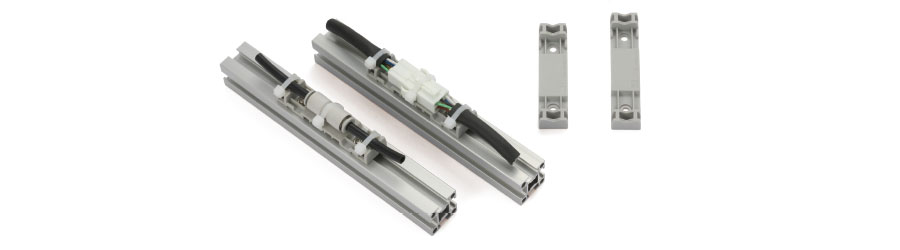

CC Holder with centered mounting holes for fitting to aluminum frames
Protects connection joints against connection failure and wire breakages by tensile and vibration stresses
Protects connection joints against connection failure and wire breakages by tensile and vibration stresses
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications For holding connector joints at assembly machines, conveyors, inspection devices or other machines
Contents of page
Model/Specifications
| Model | Length | Fitting method | Color | Working temperature | Weight | Q'ty per package |
| OL-G4A-80 | 80mm | Banding band of 5mm wide or smaller |
Gray | -40 to +80℃ | 6g | 10 pcs. |
| OL-G4A-90 | 90mm | 7g |

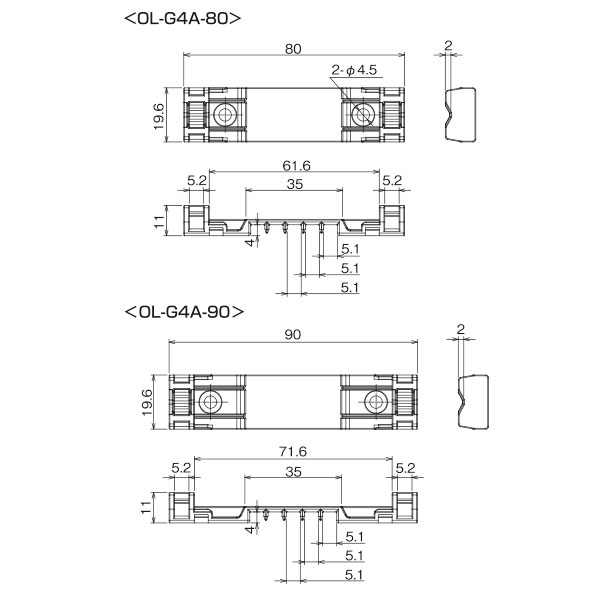

Dimensional drawing

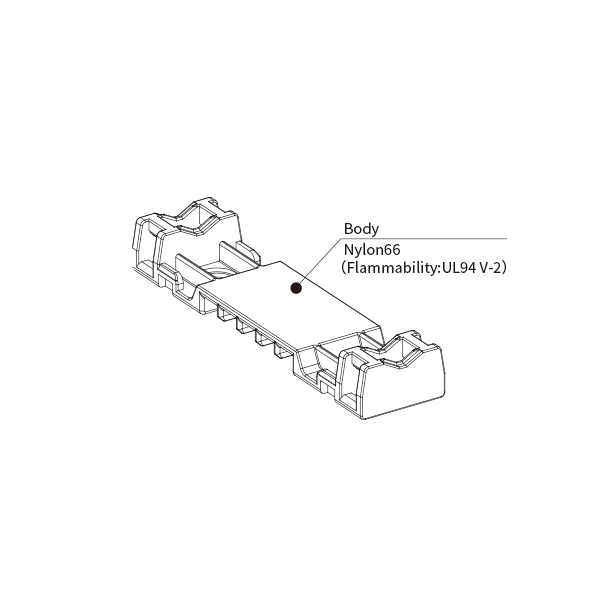

Materials
Mounting pitch
| Model | Ａ |
| OL-G4A-80 | 50±0.2mm |
| OL-G4A-90 | 60±0.2mm |
Instructions

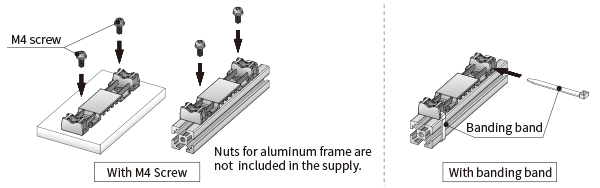

1. Install CC Holder.
・Adjust the position and clamping force of the band to fit the connector configuration.
2. Tie the banding band around the object and secure it.
Cautions
・Do not expose this product to external forces. Do not paint.
・To prevent deterioration, avoid using or storing this product under the following atmospheres.
・To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
