Joint box for indoor wiring JOICOVER

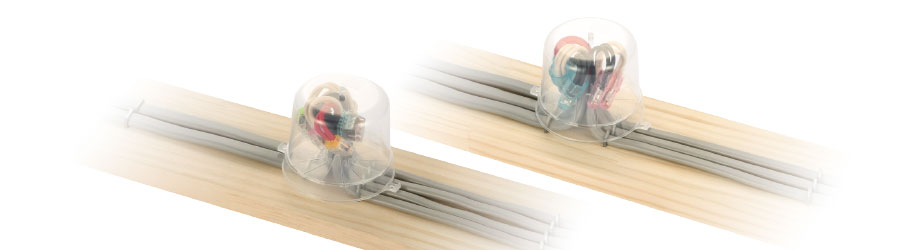

Quick and easy! For protection and exposure prevention of post-wire connection

ジョイカバー

Certificates/Approvals

EU RoHS2 China RoHS CE UL CSA PSE
・Application For protection of interconnected cables in indoor wiring

Model/Specifications

Model Color Weight Q'ty per package *1
OJ-1 Translucent 19g 300 pcs.
*1 Once carton contains 30 bags (10 pcs/bag)

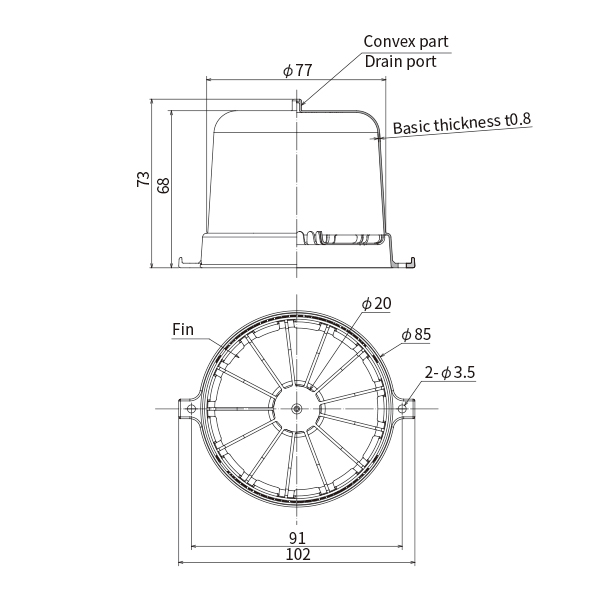

Dimensional drawing

外形寸法図

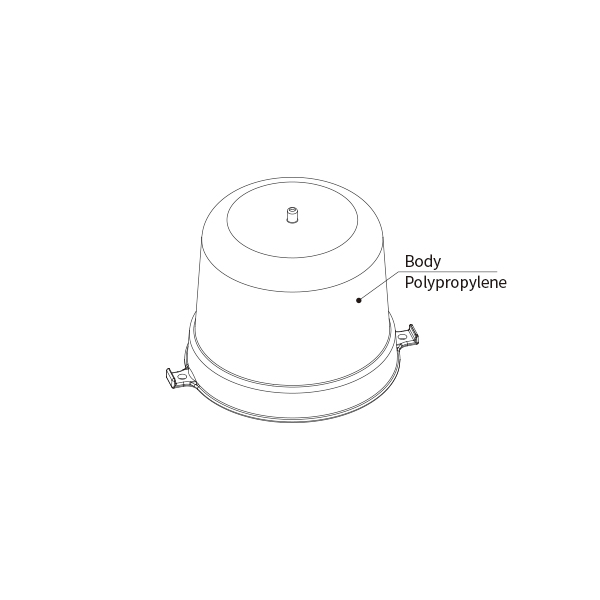

Materials

材質

Instructions

電線を接続する。

1. Connect wires.

ジョイカバーを被せる。

2. Cover over the cable assembly with JOICOVER.

弁が折れ曲がった場合は回転させて弁を開く。

3. If the fins were bent, twist JOICOVER to restore.

【固定方法】木ネジ、ステップルや結束バンドでの固定が可能。

【To fix JOICOVER】For fixation, use wood screws, staples and cable ties.

Cautions

This product is a cover for cable interconnection points in indoor wiring.
・Never use it for any other purpose than original intention.
・Use it after insulating the cable interconnection points.
・Fix the joint of cables to building materials and install JOICOVER not to apply excessive force.
・All stripped parts of cable sheaths and the connection parts should be housed in OJ-1.
・In case the fins of OJ-1 were bent after covering, twist OJ-1 to eliminate such bend.
・When OJ-1 is installed so as the convex part is directed downward, cut out the convex part to drain water
・Fix OJ-1 to a fixture if it is used at a site where vibration or impact may be applied.
・Fix OJ-1 to a fixture if it is used at a site where vibration or impact may be applied.
Do not use or store this product under the following environment. Failure to this may lead to quality deterioration and/or cause of heat generation and accidents..
  1. An environment where the product can exposed to ultraviolet ray
  2. An environment where is not allowed to use the connectors
  3. For any other special environmental conditions, please contact us before use.
