Push-in cable connector OK-Con

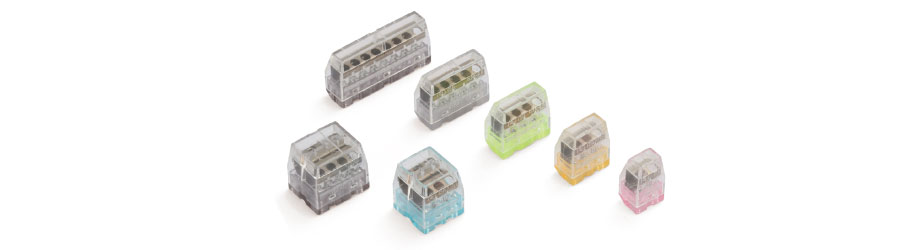

Unique "skeleton" appearance; clearly see the actual internal connection. Fast and simple, with a simple push, the wire is secured.
Features
| Applicable cable | Rated voltage | Rated current | Number of wires | Certification body |
| Solid copper wire Ø1.2・1.6・2.0 | 300V | 20A | 2 - 8 | ＜PS＞E JET |
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・UL, CSA, CE approved (Internationally)
・JISC2813, Interior Wiring Connector (Japan, the same for all following items)
・Listed as Common Electrical Facility Wiring Specifications by MLIT (Ministry of Land, Infrastructure and Transport)
・Listed as Common Installation Specifications by HUDC (Housing and Urban Development Corporation)
・Type approval ("T" Marking) by Electrical Appliances Regulations by METI
・Conforming to Electrical Appliance and Material Safety Act ＜PS＞E
・JISC2813, Interior Wiring Connector (Japan, the same for all following items)
・Listed as Common Electrical Facility Wiring Specifications by MLIT (Ministry of Land, Infrastructure and Transport)
・Listed as Common Installation Specifications by HUDC (Housing and Urban Development Corporation)
・Type approval ("T" Marking) by Electrical Appliances Regulations by METI
・Conforming to Electrical Appliance and Material Safety Act ＜PS＞E
・Application Any interior wire connections in homes, offices, factories and for connecting multiple wires inside junction boxes.
Contents of page
Model/Specifications
| Model | Number of cables | Color | Applicable cable | Rating | Certification body | Weight | Q'ty per package |
| OK-2 | 2 | Red | Solid copper wire Ø1.2 Ø1.6 Ø2.0 |
300V 20A |
＜PS＞E JET | 2g | 60 pcs. |
| OK-3 | 3 | Orange | 3g | 50 pcs. | |||
| OK-4 | 4 | Yellow | 3g | 40 pcs. | |||
| OK-5 | 5 | White (translucent) | 4g | 35 pcs. | |||
| OK-8 | 8 | Gray | 6g | 20 pcs. | |||
| OK-6W | 6 | Blue | 5g | 25 pcs. | |||
| OK-8W | 8 | Gray | 6g | 20 pcs. |

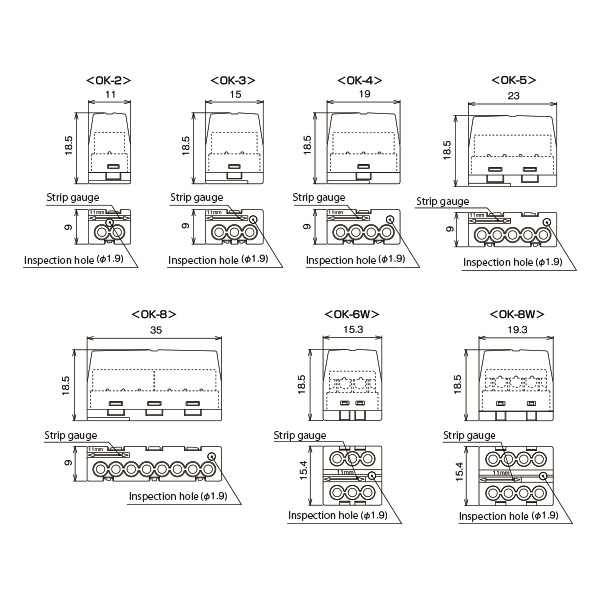

Dimensional drawing

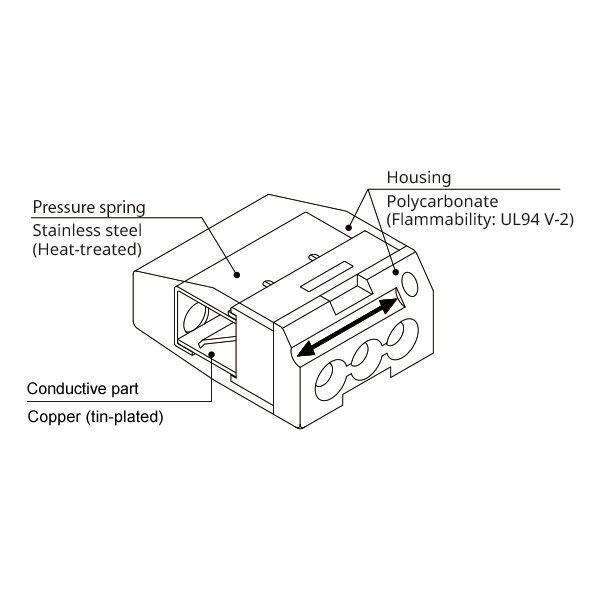

Materials
Instructions
1. Strip wires to a length of 11 to 13 mm.
2. Insert the wire.
3. Insert the core wire straight into the opening until it stops.
4. Make sure that the tip of wire is projected at least 2mm from the metal top.
5. Bend the wire connected to OK-Con straight and store it into the box. No twisting is allowed.
Cautions
- Use SOLID COPPER WIREs of Ø1.2、Ø1.6、Ø2.0 ONLY. Never use any other wires.
- Do not twist or bend the core wire.
- Never use bent, damaged or rusted wires.
- When use a wire once disconnected from OK-Con, be sure to cut and restrip the wire.
- Never insert a wire slantwise.
- Pull each wire after insertion to ensure that all wires are securely fixed.
- Avoid inserting Ø1.2 wire in the same position where larger diameter wire (Ø1.6、Ø2.0) has been previously installed.
Wire disconnection
Pull on the wire to be removed and twist OK-Con back and forth simultaneously.
Cautions
・Use this product in indoor joint boxes only.
・Read the instruction manual carefully before use for proper usage.
・Be sure to direct the insertion port downward or make necessary arrangement to keep foreign matters away from entering. Accumulated dust can be a cause of burnout or other damages.
・To prevent deterioration, avoid using or storing this product under the following atmospheres.
・Read the instruction manual carefully before use for proper usage.
・Be sure to direct the insertion port downward or make necessary arrangement to keep foreign matters away from entering. Accumulated dust can be a cause of burnout or other damages.
・To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Highly humid air exceeding 90%RH
- Strong alkaline (such as anmmonia), aromatic compound and halogenation hydrocarbon (thinner, toluene, benzene, chloroform etc.) atmospheres
- Oily or salty air
- Places where the product is exposed to water or dust
