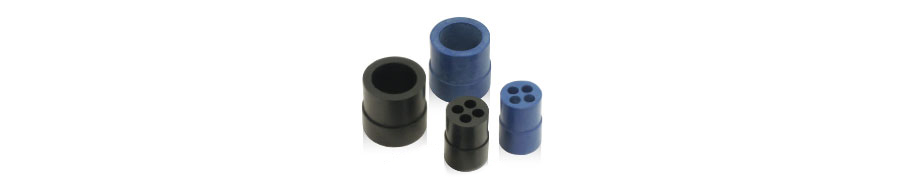

Rubber bushing


For changing applicable cable sizes of the product

ゴムブッシュ

Model/Specifications

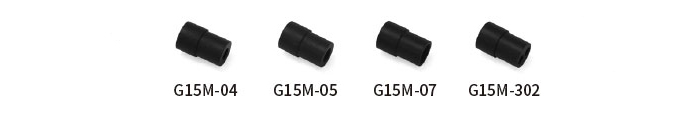

G15M

ゴムブッシュG15M

Model Applicable cable diameter Q'ty per package Applicable product model
Oilproof Weatherproof OA-W JB
G15M-04 G15M-04E Ø2 - 4 10 pcs. OA-W15M-04(E)
OA-W15M-05(E)
OA-W15M-07(E)
OA-W15M-302(E)
JB-WST303(E)
JB-WS303(E)
JB-WS307(E)
G15M-05 G15M-05E Ø3 - 5
G15M-07 G15M-07E Ø5 - 7
G15M-302 G15M-302E Ø2.4 - 3(2 ports)
【Material】Oilproof : NBR Weatherproof : EPDM  Picture shows oilproof models. The color of weatherproof models is blue.

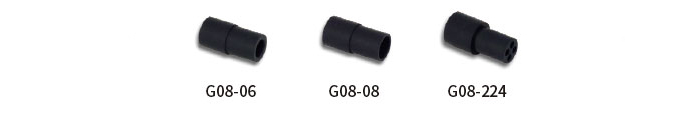

G08

G08

Model Applicable cable diameter Q'ty per package Applicable product model
Oilproof Weatherproof OA-W
G08-06 G08-06E Ø4 - 6 10 pcs. OA-W1606(E)
OA-W1608(E)
OA-W16-224(E)
G08-08 G08-08E Ø6 - 8
G08-224 G08-224E Ø1.7 - 2.2 (4 ports)
【Material】Oilproof : NBR Weatherproof : EPDM  Picture shows oilproof models. The color of weatherproof models is blue.

G11

G11

Model Applicable cable diameter Q'ty per
package
Applicable product model
Oilproof Weatherproof OA-W OA-QW JB
G11-09 G11-09E Ø4 - 9 10 pcs. OA-W1609(E)
OA-W1611(E)
OA-W16-334(E)
OA-W16-402(E)
OA-QW09S(E)
OA-QW11S(E)
OA-QW0911S(E)
OA-QW09S(E)-2
OA-QW11S(E)-2
OA-QW0911S(E)-2
JB-WST304(E)
JB-WST306(E)
JB-WS304(E)
G11-09A G11-09AE Ø6 - 9
G11-11 G11-11E Ø9 - 11
G11-334 G11-334E Ø2.2 - 3.3
(4 ports)
G11-402 G11-402E Ø3 - 4
(2 ports)
G11-09RS G11-09RSE Ø4 - 9
(Slit)
OA-W3/8G-04/09(E)
OA-W3/8G-06/09(E)
OA-W3/8G-09/11(E)
OA-W3/8G-0334(E)
OA-W3/8G-0402(E)
- -
G11-09ARS G11-09ARSE Ø6 - 9
(Slit)
G11-11RS G11-11RSE Ø9 - 11
(Slit)
G11-334RS G11-334RSE Ø2.2 - 3.3,
4 ports (Slit)
G11-402RS G11-402RSE Ø3 - 4,
2 ports (Slit)
【Material】Oilproof : NBR Weatherproof : EPDM  Picture shows oilproof models. The color of weatherproof models is blue.

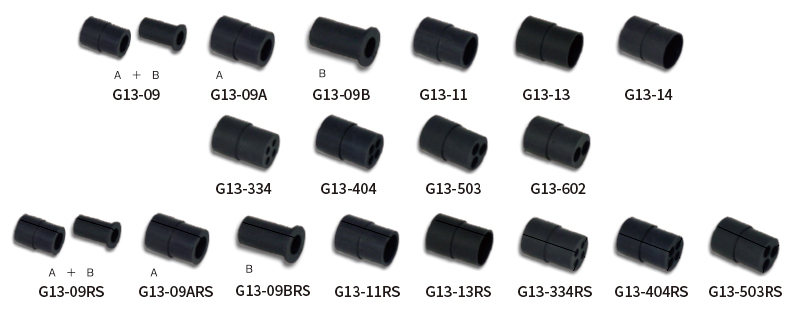

G13

G13

Model Applicable cable diameter Q'ty per package Applicable product model
Oilproof Weatherproof OA-W OA-QW JB
G13-09 G13-09E Ø4 - 9 10 pcs. OA-W1613(E)
OA-W1614(E)
OA-W16-404(E)
OA-W16-503(E)
OA-W16-602(E)
OA-W1609(E)-13L
OA-W1611(E)-13L
OA-W1613(E)-13L
OA-W1614(E)-13L
OA-QW09S(E)-3
OA-QW11S(E)-3
OA-QW13S(E)-3
OA-QW0911S(E)-3
OA-QW0913S(E)-3
OA-QW1113S(E)-3
OA-QWL09S(E)-4
OA-QWL11S(E)-4
OA-QWL13S(E)-4
OA-QWL0911S(E)-4
OA-QWL0913S(E)-4
OA-QWL1113S(E)-4
OA-QWL09334S(E)-4
OA-QWL09404S(E)-4
OA-QW09S(E)N
OA-QW11S(E)N
OA-QW13S(E)N
OA-QW0911S(E)N
OA-QW0913S(E)N
OA-QW1113S(E)N
OA-QWL09S(E)N
OA-QWL11S(E)N
OA-QWL13S(E)N
OA-QWL0911S(E)N
OA-QWL0913S(E)N
OA-QWL1113S(E)N
JB-W44(E)
JB-W305(E)
JB-W307(E)
JB-W311(E)
G13-09A G13-09AE Ø6 - 9
G13-09B G13-09BE Ø4 - 6
G13-11 G13-11E Ø8.5 - 11.5
G13-13 G13-13E Ø11 - 13
G13-14 G13-14E Ø13 - 14
G13-334 G13-334E Ø2.2 - 3.3,
4 ports
G13-404 G13-404E Ø3 - 4,
4 ports
G13-503 G13-503E Ø4 - 5,
3 ports
G13-602 G13-602E Ø5 - 6,
2 ports
G13-09RS G13-09RSE Ø4 - 9
(Slit)
OA-W1613(E)
OA-W1614(E)
OA-W16-404(E)
OA-W16-503(E)
OA-W16-602(E)
OA-W16-0901RS(E)
OA-W16-1151RS(E)
OA-W16-1301RS(E)
OA-W16-0334RS(E)
OA-W16-0404RS(E)
OA-W16-0503RS(E)
OA-QW09S(E)-3
OA-QW11S(E)-3
OA-QW13S(E)-3
OA-QW0911S(E)-3
OA-QW0913S(E)-3
OA-QW1113S(E)-3
OA-QW09S(E)N
OA-QW11S(E)N
OA-QW13S(E)N
OA-QW0911S(E)N
OA-QW0913S(E)N
OA-QW1113S(E)N
OA-QW09SRSN(E)
OA-QW11SRSN(E)
OA-QW0911SRSN(E)
OA-QW09334SRSN(E)
OA-QW09404SRSN(E)
OA-QW11334SRSN(E)
OA-QW11404SRSN(E)
-
G13-09ARS G13-09ARSE Ø6 - 9
(Slit)
G13-09BRS G13-09BRSE Ø4 - 6
(Slit)
G13-11RS G13-11RSE Ø8.5 - 11.5
(Slit)
G13-13RS * G13-13RSE * Ø11 - 13
(Slit)
G13-334RS G13-334RSE Ø2.2 - 3.3,
4 ports (Slit)
G13-404RS G13-404RSE Ø3 - 4,
4 ports (Slit)
G13-503RS * G13-503RSE * Ø4 - 5,
3 ports (Slit)
Remark (*): Items marked with * cannot be used for OA-QW.
【Material】Oilproof : NBR Weatherproof : EPDM  Picture shows oilproof models. The color of weatherproof models is blue.

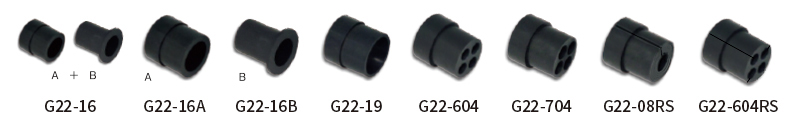

G22

G22

Model Applicable cable
diameter
Q'ty per package Applicable product model
Oilproof Weatherproof OA-W OA-QW
G22-16 G22-16E Ø8 - 16 10 pcs. OA-W2213(E)
OA-W2216(E)
OA-W2219(E)
OA-W22-604(E)
OA-W22-704(E)
OA-QW16S(E)
OA-QW19S(E)
OA-QW1619S(E)
OA-QW16S(E)N
OA-QW19S(E)N
OA-QW1619S(E)N
G22-16A G22-16AE Ø11 - 16
G22-16B G22-16BE Ø8 - 11
G22-19 G22-19E Ø15 - 19
G22-604 G22-604E Ø5 - 6,
4 ports
G22-704 G22-704E Ø6 - 7,
4 ports
G22-08RS G22-08RSE Ø5 - 8
(Slit)
OA-W2213(E)
OA-W2216(E)
OA-W2219(E)
OA-W22-604(E)
OA-W22-704(E)
OA-W22-0801RS(E)
OA-W22-0604RS(E)
OA-QW16S(E)
OA-QW19S(E)
OA-QW1619S(E)
OA-QW16S(E)N
OA-QW19S(E)N
OA-QW1619S(E)N
OA-QW22-0801SRS(E)N
G22-604RS * G22-604RSE * Ø5 - 6 (4 ports)
(Slit)
Remark (*): Items marked with * cannot be used for OA-QW.
【Material】Oilproof : NBR Weatherproof : EPDM  Picture shows oilproof models. The color of weatherproof models is blue.

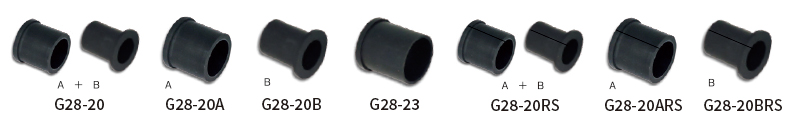

G28

G28

Model Applicable cable
diameter
Q'ty per package Applicable product model
Oilproof Weatherproof OA-W OA-QW
G28-20 G28-20E Ø13 - 20 10 pcs. OA-W2820(E)
OA-W2823(E)
OA-QW20S(E)
OA-QW23S(E)
OA-QW2023S(E)
OA-QW20S(E)N
OA-QW23S(E)N
OA-QW2023S(E)N
G28-20A G28-20AE Ø16 - 20
G28-20B G28-20BE Ø13 - 16
G28-23 G28-23E Ø19 - 23
G28-20RS G28-20RSE Ø13 - 20
(Slit)
OA-W2820(E)
OA-W2823(E)
OA-W28-2001RS(E)
-
G28-20ARS G28-20ARSE Ø16 - 20
(Slit)
G28-20BRS G28-20BRSE Ø13 - 16
(Slit)
【Material】Oilproof : NBR Weatherproof : EPDM  Picture shows oilproof models. The color of weatherproof models is blue.

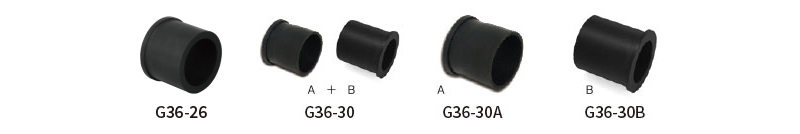

G36

G36

Model Applicable cable
diameter
Q'ty per package Applicable product model
Oilproof Weatherproof OA-W OA-QW
G36-26 G36-26E Ø21 - 26 5 pcs. OA-W3626(E)
OA-W3630(E)
OA-QW30S(E)
OA-QW30S(E)N
G36-30 G36-30E Ø15 - 30
G36-30A G36-30AE Ø22 - 30
G36-30B G36-30BE Ø15 - 23
【Material】Oilproof : NBR Weatherproof : EPDM  Picture shows oilproof models. The color of weatherproof models is blue.
