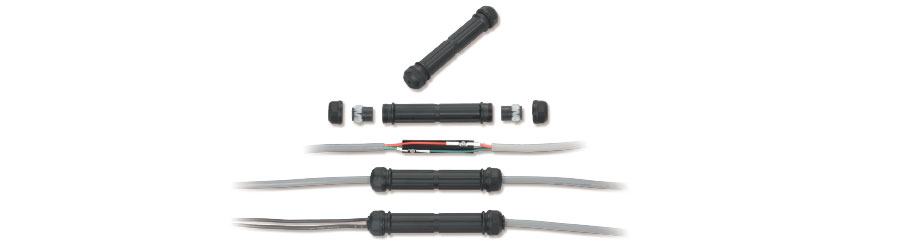

OA-QW with connection guide for 4 core cable splice
Provides excellent water and dust tight splicing of signal wires of sensors and limit switches
Features
| Protection category | Color | Rated voltage | Oilproof | Weatherproof |
| IP67 | Black | 600V | ✓ | ✓ |
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications For waterproof insulation at various wire connections including splices of lead wires of sensor, limit switches or three-phase motors
Contents of page
Model/Specifications
Oilproof type Rubber bushing : Black
| Model | Rated voltage |
Applicable cable diameter (mm) | Connection guide screw（mm） |
Weight* |
Q'ty per package | Fixing bracket | |
| Black | L side | R side | |||||
| OA-QWL09S-4 | AC/DC 600V |
Ø4 - 9① | Ø4 - 9① | M3.5 | 42g | 10 pcs. | QW-H2 |
| OA-QWL11S-4 | Ø8.5 - 11.5 | Ø8.5 - 11.5 | 38g | ||||
| OA-QWL13S-4 | Ø11 - 13 | Ø11 - 13 | 36g | ||||
| OA-QWL0911S-4 | Ø4 - 9① | Ø8.5 - 11.5 | 40g | ||||
| OA-QWL0913S-4 | Ø4 - 9① | Ø11 - 13 | 39g | ||||
| OA-QWL1113S-4 | Ø8.5 - 11.5 | Ø11 - 13 | 37g | ||||
| OA-QWL09334S-4 | Ø4 - 9① | Ø2.2 - 3.3×4 holes | 42g | ||||
| OA-QWL09404S-4 | Ø4 - 9① | Ø3 - 4×4 holes | 42g | ||||
Weatherproof type Rubber bushing : Blue
| Model | Rated voltage | Applicable cable diameter (mm) | Connection guide screw（mm） |
Weight* |
Q'ty per package | Fitting bracket | |
| Black | L side | R side | |||||
| OA-QWL09SE-4 | 600V AC/DC |
Ø4 - 9① | Ø4 - 9① | M3.5 | 42g | 10 pcs. | QW-H2 |
| OA-QWL11SE-4 | Ø8.5 - 11.5 | Ø8.5 - 11.5 | 38g | ||||
| OA-QWL13SE-4 | Ø11 - 13 | Ø11 - 13 | 36g | ||||
| OA-QWL0911SE-4 | Ø4 - 9① | Ø8.5 - 11.5 | 40g | ||||
| OA-QWL0913SE-4 | Ø4 - 9① | Ø11 - 13 | 39g | ||||
| OA-QWL1113SE-4 | Ø8.5 - 11.5 | Ø11 - 13 | 37g | ||||
| OA-QWL09334SE-4 | Ø4 - 9① | Ø2.2 - 3.3×4 holes | 42g | ||||
| OA-QWL09404SE-4 | Ø4 - 9① | Ø3 - 4×4 holes | 42g | ||||
Common : Working temperature -25 to ＋80℃
*Weight values are for Black color models.
*Weight values are for Black color models.
Note : The applicable cable size marked with ① changes by combination of the rubber bushings.
| ① | Applicable cable diameter (mm) |
| Rubber bushing A+B | Ø4 - 6 |
| Rubber bushing A only | Ø6 - 9 |

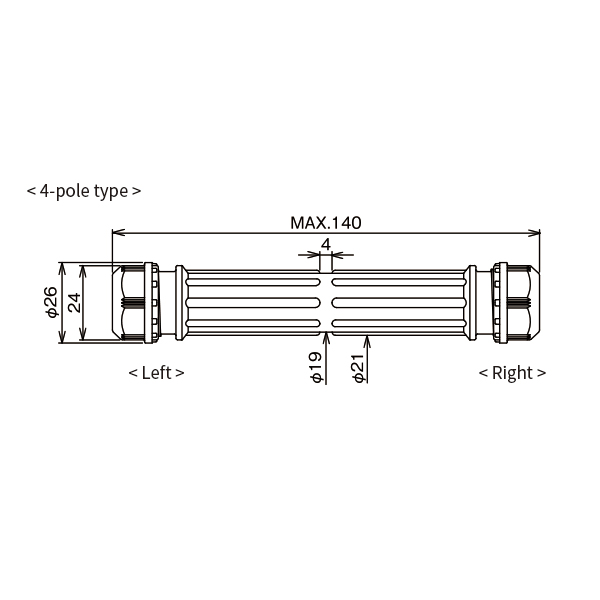

Dimensional drawing

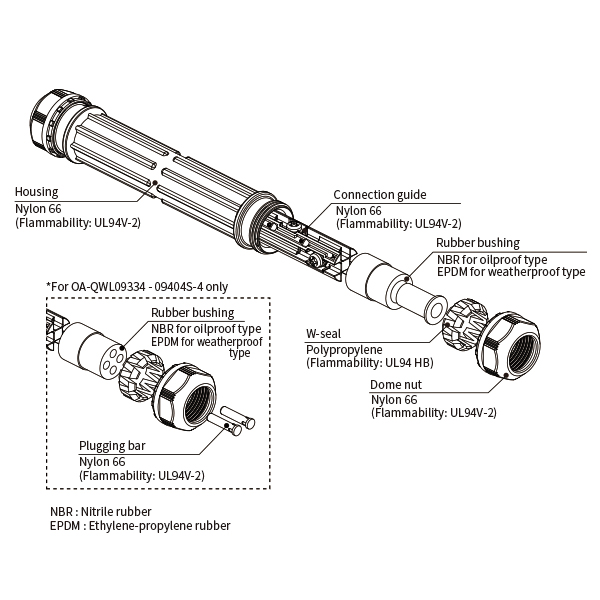

Materials
Instructions
1. Cut wire at the marking on the connection guide.
A：75mm B：57mm
C：39mm D：21mm
2. Strip the cable end and place the specified crimp terminal.
3. Put cables through each part. Then, place cables into the Connection guide and tighten the screw.
4. Tighten the two dome nuts on each end so as to place the Connection guide in the center until the cables are secured.
Connection guide with guage
- Be sure to use the specified crimp terminals.
- Use only one cable for one hole.
- Tightening torque and tensile strength differ depending on the material of cable coating and its hardness.
- Tensile strength and waterproof performance drops when outer cable diameter changes due to aging.
- Product performance are not guaranteed for cables other than the applicable size or round cables.
Option
Rubber bushing
Fitting bracket
Connection guide
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
- For Oilproof Type (Rubber color : black)
Do not expose to direct and continuous sunlight.
Suitable for oily environments.
*For non-oily places, use Weatherproof type. - For Weatherproof Type (Rubber color : blue)
Avoid using in oily environments.
For non-oily indoor places, Weatherproof type is recommended.
