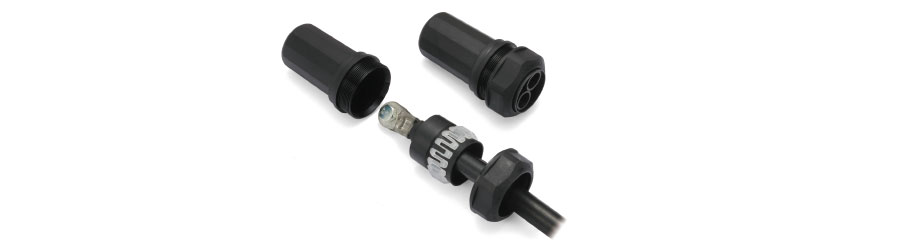

OA-QW Termination splice type
Provides waterproof insulation to butt joint connections of large capacity cables (outer dia. 19 to 23 mm)
Features
| Protection category | Color | Rated voltage | Oilproof |
| IP64 | Black | 600V | ✓ |
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications For splicing and waterproof insulation of high voltage and high current electric cables such as small to large welding machines, electric discharge and laser machining equipment, construction equipment and other heavy duty apparatus
Contents of page
Model/Specifications
Oilproof type Rubber bushing : Black
| Model | Applicable cable diameter (mm) | Applicable crimp terminal(mm) | Bolt length |
Weight | Q'ty per package |
| OA-QW23 | Ø19 - 23 | 80-8・80-10 (ring terminal) Max.28.5 | 40 mm or less |
172g | 1 pc. |
Rated voltage 600V AC/DC Working temperature -25 to ＋80℃

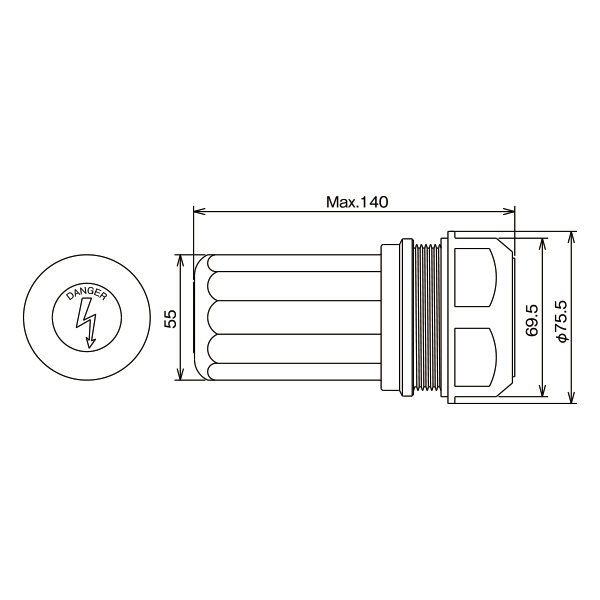

Dimensional drawing

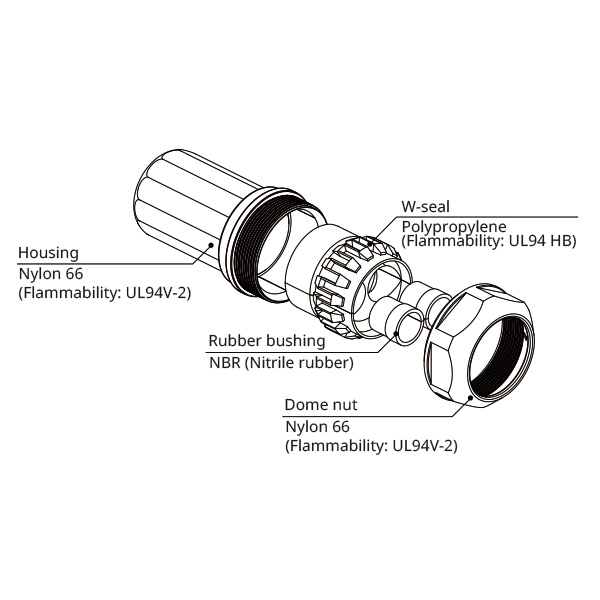

Materials
Instructions
1. Connect the cables using the specified crimp terminals.
2. Insert dome nut first then the W seal through cable assembly as shown in the picture.
3. Insert and place rubber bushing over cable assembly.
4. Cover cable assembly with the domed connector body.
5. Secure cable assembly by tightening the dome nut.
- Be sure to use the specified crimp terminals.
- Use only one cable for one hole.
- Tightening torque and tensile strength differ depending on the material of cable coating and its hardness.
- Tensile strength and waterproof performance drops when outer cable diameter changes due to aging.
- Product performance are not guaranteed for cables other than the applicable size or round cables.
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
