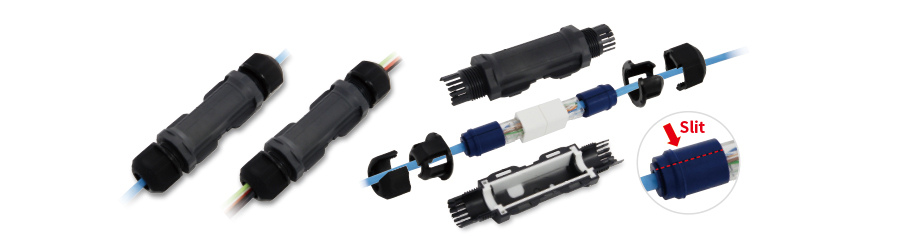

OA-QW for relay connectors Splittable type
Protects wide variety of relay connectors from water and dust.
Features
| Protection category | Color | Environment |
| IP67 | Black | Oilproof/Weatherproof |
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications : For protecting linc connector, LAN cable and other varous kinds of connectors from water and dust.
Model/Specifications
Oilproof type Rubber bushing : Black
| Application | Model | Working temperature | Weight | Q'ty/package |
| Black | ||||
| General purpose | OA-QWH16-08SRSN | -20 to +70℃ | 49g | 1 pc. |
| Link connector | OA-QWH16-L1SRSN | 53g |
Weatherproof type Rubber bushing : Blue
| Application | Model | Working temperature | Weight | Q'ty/package |
| Black | ||||
| General purpose | OA-QWH16-08SRSEN | -20 to +70℃ | 49g | 1 pc. |
| Link connector | OA-QWH16-L1SRSEN | 53g |
Applicable link connector
| Maker | Serial # for wire mounting connector | Cable type |
| 3M Japan | 38A04-□0□□-□00FL | 2.54mm pitch flat cable |

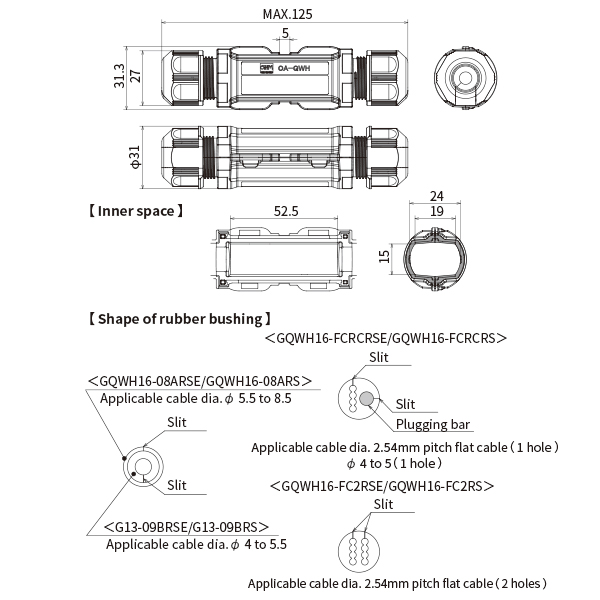

Dimensional drawing

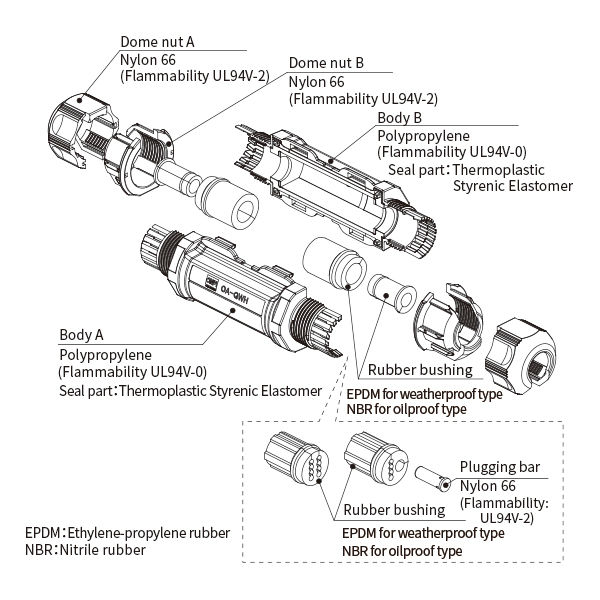

Materials
Applicable cable diameter/Accessories
OA-QWH16-08SRSN/OA-QWH16-08SRSEN
Accessories
| Model of rubber bushing | Applicable cable diameter（mm） | Q'ty |
| GQWH16-08ARS/GQWH16-08ARSE | Ø 5.5～8.5 | 2 |
| G13-09BRS/G13-09BRSE | Ø4 to 5.5 ※Fit cable into GQWH16-08ARS(E) | 2 |
OA-QWH16-L1SRSN/OA-QWH16-L1SRSEN
Accessories
| Model of rubber bushing | Applicable cable diameter（mm） | Q'ty |
| GQWH16-FCRCRS/GQWH16-FCRCRSE | 2.54mm pitch flat cable（1 hole）/Ø4 to 5（1 hole） | 2 |
| GQWH16-FC2RS/GQWH16-FC2RSE | 2.54mm pitch flat cable （2 holes） | 1 |
| Model of plugging bar | Specification | Q'ty |
| BB-50S | G13-503/503E | 2 |
Instructions
| *Dropping each part causes product damage. *To tighten the dome nut before assembling cables causes damage of clamping parts. *Assembling at the temperature 0℃ or less leads to damage of each part. |

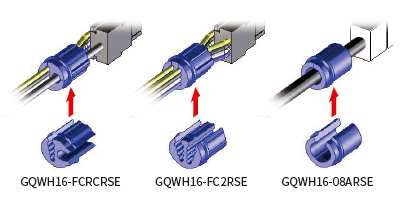

1.Open the slit of rubber bushing and let the calbe through.
Insert rubber bushing B to rubber bushing A when using cable which finishing outer diameter is Ø5.5 or less.

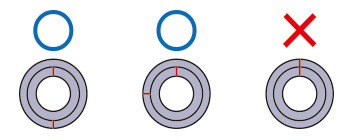

Each slit of rubber bushings should be placed as the picture shows to protect waterproofness.
Each slit of rubber bushings should be placed as the picture shows to protect waterproofness.

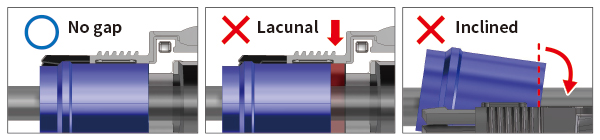

2.Set the cable connection part and rubber bushing on Body B so as not to have any space between the seal part (white) and end face of rubber bushing as shown below.
《Caution》To keep waterproofness, be sure not to have the rubber bushing inclined.

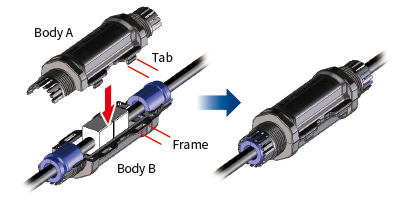

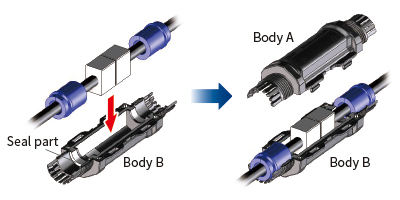

3.Assemble Body A and Body B.
《Caution》Assemble so that the end face of the rubber bushing does not catch on the seal part (white) of Body A . Make sure that the tab is hooked on the frame.
《Caution》Assemble so that the end face of the rubber bushing does not catch on the seal part (white) of Body A . Make sure that the tab is hooked on the frame.

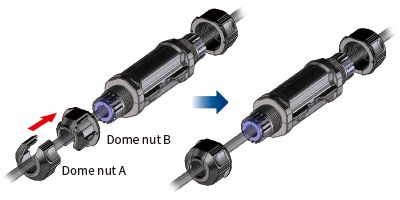

4.Fit the Dome nut A and B along the cable.

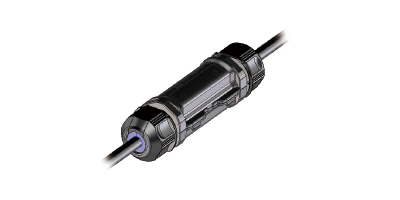

5.Tighten the Dome nut to fasten cable securely.
Cautions
*Do not step foot or put load on the product. Do not paint the product.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
*Do not use this product in oil or water.
*To prevent deterioration, avoid using or storing this product under the following atmospheres.
- Outside the range of working humidity and temperature
- Water vapor contained or high temperature/humidity air
- Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
- For Oilproof Type (Rubber color : black)
Do not expose to direct and continuous sunlight.
Suitable for oily environments.
*For non-oily places, use Weatherproof type. - For Weatherproof Type (Rubber color : blue)
Avoid using in oily environments.
For non-oily indoor places, Weatherproof type is recommended.
