Oil mist collector MISTCATCH

Get the following information beforehand.

  • (1)Dimensions of machining area (W, H, D) in mm
  • (2)Door opening frequency of machining area (if covered)
  • (3)Mist density (thick or thin)
Enter the information necessary for calculation.

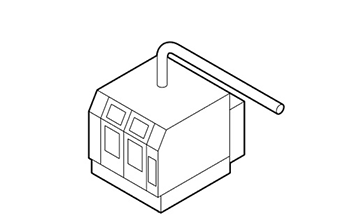

Machining area

Enter the machining area information

Dimensions

Enter the width, height and depth of the machining area.
Dimensions
mm Enter the dimension of A.
mm Enter the dimension of B.
mm Enter the dimension of C.

Door opening frequency and mist concentration

Select the door opening frequency and mist concentration from the following options.

* The coefficient values are based on our empirical data.

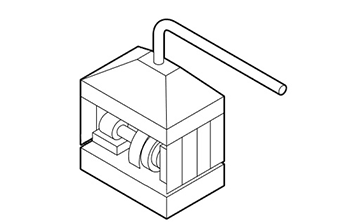

Dimensions of food suction surface

Enter the dimensions of hood suction surface
(machining area openings).
Dimensions
mm Enter the dimension A
mm Enter the dimension B
Cross section of
hood suction surface
(A) × (B)
(% area %)m2

Face velocity

Select the face velocity from the following options.

*Select 0.5m/s in case velocity is unmeasurable.

*The settings of face velocity are based on our empirical data.

Calculate the required air volume

Required air volume (Q)

Cross section of hood suction surface(cbm) x Face velocity Vf(m/s) = Required air volume Q (cbm/min)
((% width | convertM3 %)×(% depth | convertM3 %)×(% height | convertM3 %))× (% concentration %) =
(% type1Result | decimalPointDisplay %)m3/min

Required air volume (Q)

Cross section of hood suction surface(cbm) x Face velocity Vf(m/s) = Required air volume Q (cbm/min)
((% sizeA | convertM3 %)×(% sizeB | convertM3 %))× (% surfaceWindSpeed %) × 60 =
(% type2Result | decimalPointDisplay %)m3/min
